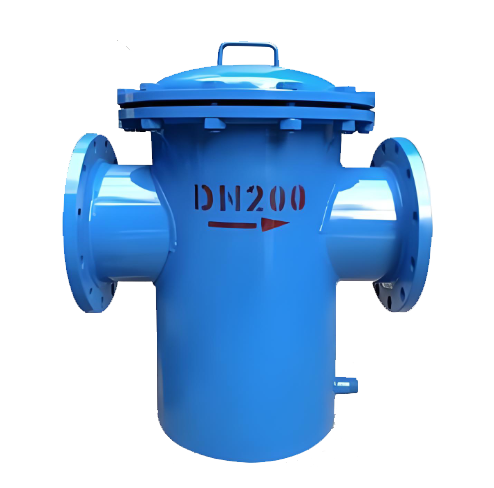

SBL14 basket filter is a compact and efficient pipeline inline filtration device, mainly used to remove solid particles and impurities in fluids, and protect key equipment such as valves, pumps, and instruments from normal operation. Its design is suitable for various media such as water, oil, steam, etc., and is widely used in pipeline systems in the fields of petroleum, chemical, pharmaceutical, HVAC, and industrial production.SBL14 Basket Filter Product Diagram

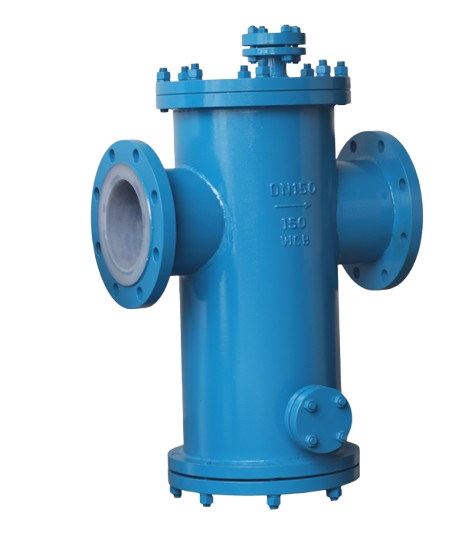

Fluorine-lined basket filter is a pipeline accessory in which fluorine plastics are lined onto the flow surfaces of a steel basket strainer using a compression molding process. This creates a membrane several millimeters thick that prevents contact between corrosive media and metal surfaces, thereby protecting them from erosion and extending service life. When the material enters the fluorine-plastic filter basket through the inlet, it flows through a filter screen woven from PTFE or FEP filaments of corresponding specifications. Impurities are blocked while the clean material flows out through the outlet. When cleaning or replacement is required, the removable cover is opened to extract the filter element, which can be reinstalled after processing. The product features drain ports at the top and bottom to ensure complete drainage of residual liquid when necessary. The filter is produced using the compression molding method: the body and cover components are placed in a mold, and a suitable amount of fluorine plastic (in powder, granule, fiber, flake, or chip form) is added to the cavity. The mold is closed, heated to the required temperature in a furnace, and then placed in a press where the material melts and flows under pressure to fill the cavity. Through plasticizing, mixing, and dispersing within the mold, the melt gradually loses fluidity and forms an infusible solid structure. After cooling to the appropriate temperature, the mold is opened to obtain the finished product. This product is an indispensable pipeline accessory for purifying corrosive gases or liquids in industrial production.GL14F46 Fluorine-lined Basket Strainer Product Diagram

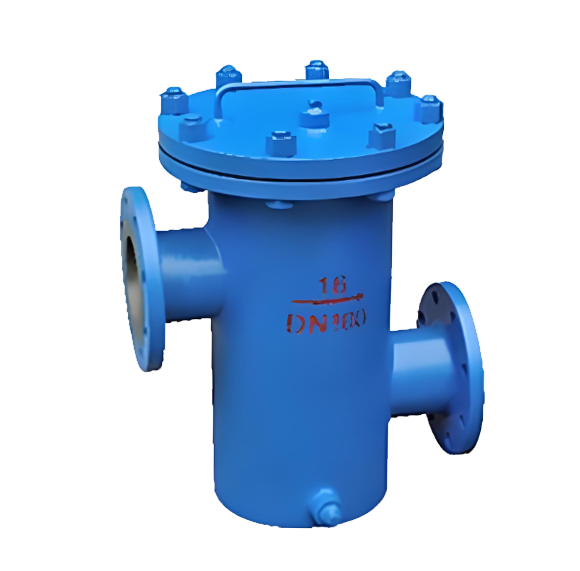

GL14 high-low connector basket filter is a high-efficiency filtration device specifically engineered for specialized piping layouts. Its distinguishing feature is the asymmetric positioning of the inlet and outlet nozzles (high-inlet/low-outlet or vice versa), which allows for direct connection to staggered pipeline systems, simplifying configurations and saving valuable installation space. The unit consists of a housing, a large-capacity stainless steel basket, a sealing cover, and a blowdown device. Primarily installed upstream of pumps, heat exchangers, or instruments, it continuously intercepts solid impurities. Due to its basket structure, which provides a filtration area significantly larger than the pipe cross-section, this series offers advantages such as low pressure drop, high dirt-holding capacity, and extended service intervals. It is an ideal pre-treatment device for ensuring equipment safety in petroleum, chemical, energy, and municipal water systems.GL14 Basket Strainer with High-Low Inlet/Outlet Product Diagram

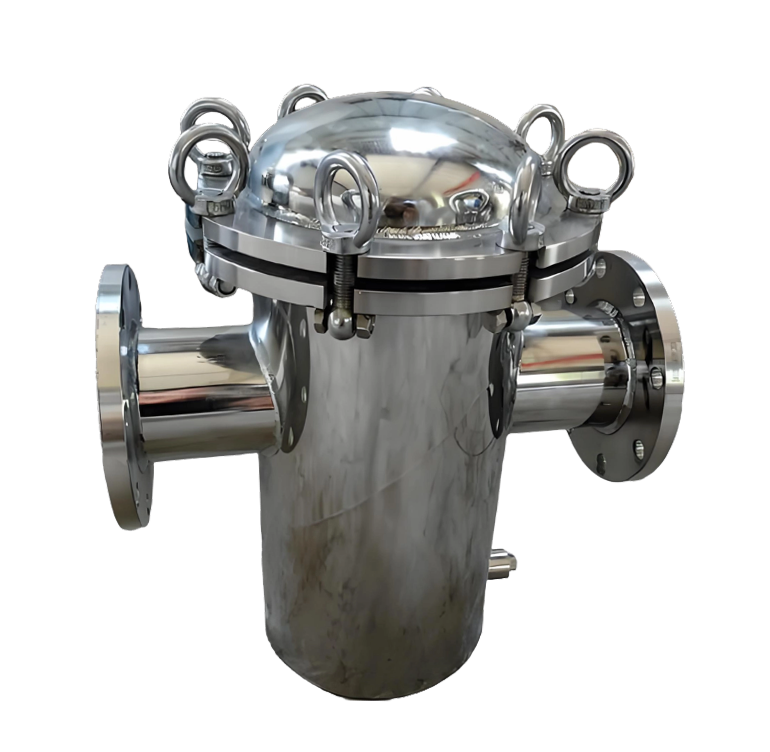

The WGL14 sanitary basket filter is a high-precision liquid filtration device specifically engineered for industries such as food, dairy, beverage, biopharmaceutical, and fine chemicals. Its primary function is to efficiently remove solid particulates and impurities from process fluids, safeguarding sensitive downstream equipment like pumps, heat exchangers, and instrumentation. Manufactured from high-grade stainless steel (SS304 or SS316L), the entire body and filter basket undergo high-level mechanical or electropolishing. The structural design strictly adheres to hygienic standards, featuring smooth internal flow paths to ensure zero dead zones and no residue accumulation. The WGL14 series, known for its superior sanitary performance, high flow capacity, and simplified maintenance, is a critical component for ensuring product quality in clean piping systems.WGL14 Sanitary Basket Strainer Product Diagram
