forged steel valve

Forged steel valves refer to valves whose main pressure-bearing components, such as the valve body, are formed through forging processes. Forging is a processing method that involves plastic deformation of a metal billet under high temperature through hammering or pressure, resulting in the desired shape and size. Compared to cast valves, the core advantages of forged steel valves stem from their dense internal organizational structure: higher material strength, better toughness, and finer grain size. This brings significant performance improvements: extremely strong pressure-bearing capacity, capable of withstanding higher pressures and temperatures; excellent impact resistance and fatigue resistance, suitable for high-pressure, large-diameter, and harsh alternating load conditions; higher safety, greatly reducing the risk of leakage or rupture due to internal casting defects such as sand holes and air holes. Forged steel valves are usually suitable for high-end applications with small to medium diameters (generally below DN300). The forged steel gate valves, forged steel globe valves, forged steel check valves, forged steel ball valves, forged stainless steel gate valves, forged stainless steel globe valves, forged stainless steel ball valves, and other forged steel valves produced by Kaiwei Xi Valve Group are the first choice in high-temperature and high-pressure steam systems, petrochemical key devices, power stations, and various ultra-high pressure or high safety requirements special industrial pipelines, representing the highest reliability and safety of valves under extreme working conditions.

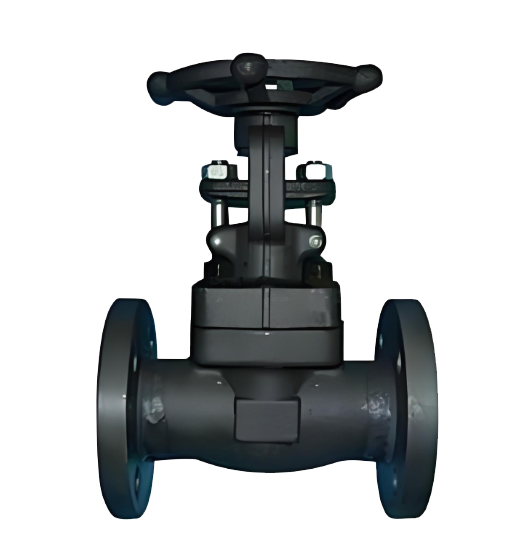

Forged Steel Gate Valve

Model：
Z11H/Z61H/Z41H/Z561H/Z11Y/Z61Y/Z41Y/Z561Y
Specification：
DN15~50mm
Pressure：
1.6~32Mpa，150LB~2500LB
Material：
Forged Steel, Forged Stainless Steel

A forged steel gate valve refers to a gate valve whose main pressure-bearing components, such as the valve body and bonnet, are manufactured using forging processes. Compared to cast steel valves, its core advantage lies in the elimination of internal defects inherent to castings, resulting in a denser and more uniform grain structure. This gives forged steel valves higher mechanical strength, better impact resistance, and superior pressure and temperature tolerance. Forged steel gate valves typically feature a compact wedge-type or parallel double-disc design, with sealing surfaces hard-faced with wear-resistant alloys and valve stems subjected to quenching and tempering treatment. Due to their robust structure and integrity of pressure boundaries, they are particularly suitable for extreme conditions involving high pressure, high temperature, frequent cycling, or stringent safety requirements. The forged steel gate valves produced by Kaiweixi Valve Group are characterized by high safety, strong reliability, long service life, and excellent corrosion resistance. The purity and mechanical properties of their forged components are significantly superior to those of castings, enabling them to better withstand water hammer, thermal shock, and pressure pulsations. Forged steel gate valves are widely used in critical applications such as:Petrochemical plants、Power station boilers、High-pressure steam systems、High-temperature oil pipelines、Nuclear power plant auxiliary systems

View detail>>

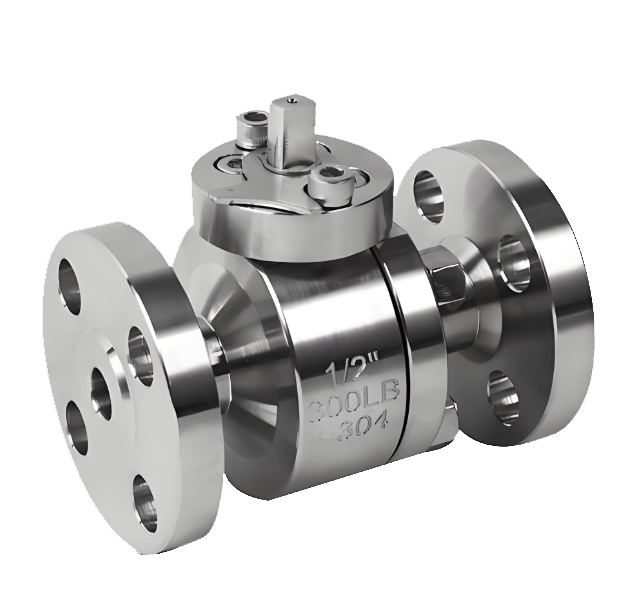

Forged Steel Ball Valve

Model：
Q11F/Q61F/Q41F/Q47F/Q11H/Q61H/Q41H/Q47H/Q11Y/Q61Y/Q341Y/Q347Y/Q641F/Q647F/Q941F/Q947F
Specification：
DN15~800mm
Pressure：
1.6~32Mpa，150LB~2500LB
Material：
Forged Steel, Forged Stainless Steel

A forged steel ball valve refers to a high-performance ball valve whose main pressure-bearing components, such as the valve body and bonnet, are formed through forging processes, typically in two-piece or three-piece designs. The forging process eliminates internal defects like pores and inclusions commonly found in cast materials, endowing the valve with higher structural strength, superior impact resistance, and excellent high-pressure and high-temperature tolerance.Forged steel ball valves generally adopt floating ball or fixed ball designs. The sealing system can be configured with soft seals (e.g., PTFE) or metal hard seals, and the valve stem incorporates an anti-blowout structure. The forged components ensure dimensional stability and sealing reliability under extreme pressure, temperature, and frequent cycling conditions.The core features of forged steel ball valves produced by Kaiweixi Valve Group include:Extremely high safety,Excellent sealing performance,Long service life,Superior mechanical properties that reliably withstand harsh conditions such as water hammer, pressure fluctuations, and thermal cycling.Forged steel ball valves are widely used in critical applications such as:Petroleum and chemical industries,Natural gas extraction and transportation,Power plants,Marine systems,High-pressure process pipelines.They are particularly suitable for demanding working conditions involving:Pressure classes of Class 600 and above,High temperatures or hazardous media.

View detail>>

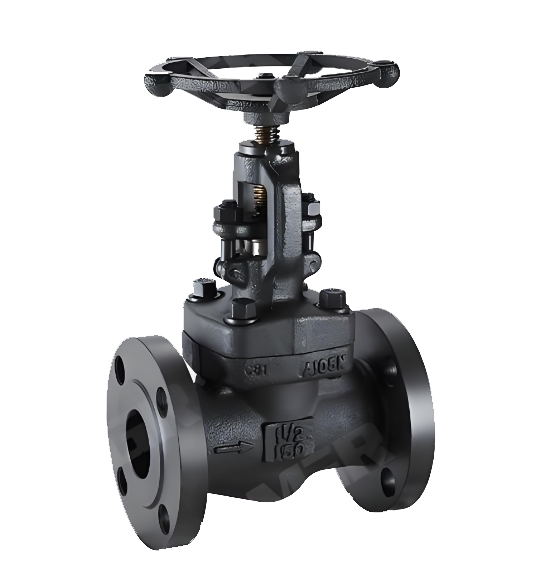

Forged Steel Globe Valve

Model：
J11H/J61H/J41H/J11Y/J61Y/J41Y
Specification：
DN15~50mm
Pressure：
1.6~32Mpa，150LB~2500LB
Material：
Forged Steel, Forged Stainless Steel

Forged steel globe valves are designed with pressure-retaining components such as valve bodies and bonnets manufactured through forging processes, primarily using materials like forged steel and forged stainless steel. Compared to cast valves, the forging process eliminates internal material defects, resulting in valves with higher strength, denser grain structures, and superior impact and fatigue resistance. This makes them especially suitable for high-pressure, high-temperature, and safety-critical applications.Forged steel globe valves typically feature standard Y-pattern or angle-style flow path designs, with disc and seat sealing surfaces hard-faced with wear-resistant alloys (e.g., Stellite). Their compact structure allows for diverse connection methods, including socket weld, threaded, or flanged connections.The forged steel globe valves produced by Kaiweixi Valve Group offer:High pressure-bearing capacity、Reliable sealing performance、Excellent erosion resistance，High material purity and stable mechanical properties, ensuring resilience to severe temperature fluctuations and pressure variations.These valves are widely used in critical pipelines across industries such as:Petroleum and chemical processing、Power plants、Oil and gas extraction、High-pressure steam systems、Pharmaceutical manufacturing.They are particularly suited for precise shut-off and regulation in applications involving:Pressure classes of Class 800 and above、High-temperature or corrosive media.

View detail>>

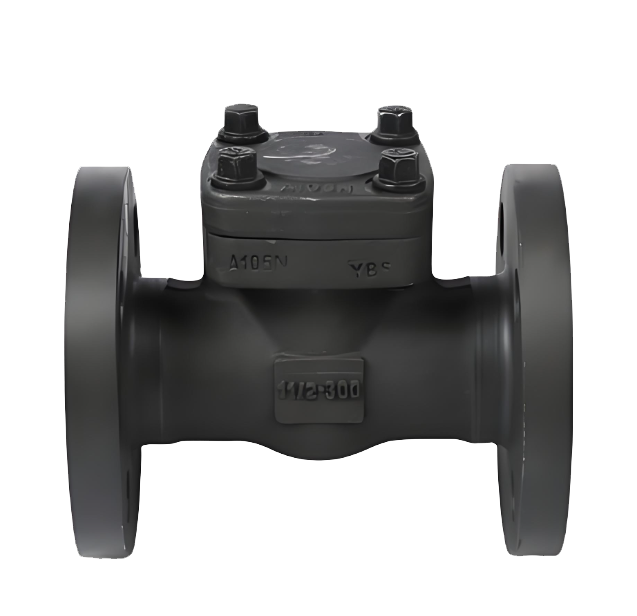

Forged Steel Check Valve

Model：
H11H/H61H/H41H/H44H/H11Y/H61Y/H41Y/H44Y/H45Y/H15Y/H45H/H15H
Specification：
DN15~50mm
Pressure：
1.6~32Mpa，150LB~2500LB
Material：
Forged Steel, Forged Stainless Steel

A forged steel check valve refers to a check valve whose main pressure-bearing components, such as the valve body and bonnet, are manufactured through forging processes. The forging process imparts a denser grain structure and higher mechanical strength to the material, significantly enhancing the valve's fatigue resistance and structural integrity under high pressure, high temperature, and impact loads. This makes it particularly suitable for reliable backflow prevention in demanding working conditions.Forged steel check valves commonly adopt lift-type or swing-type designs, with the valve disc sealing surface hard-faced with wear-resistant alloys or alloy steel. The valve seat is either integrally forged with the valve body or embedded separately. These valves feature a compact structure and are primarily connected via socket weld, threaded, or compact flanged methods.The core characteristics of forged steel check valves produced by Kaiweixi Valve Group include:High pressure-bearing capacity,Sensitive opening and closing response,Excellent sealing performance,Strong erosion resistance,Long service life.The superior material properties of these valves allow them to effectively withstand harsh conditions such as water hammer, pressure pulsations, and frequent cycling. Forged steel check valves are widely used in systems including:Petroleum and chemical industries,High-pressure boilers,Oil and gas field injection and production,Power plants,High-pressure process pipelines.They are especially suitable for applications involving pressure classes of Class 800 and above, high temperatures, or hazardous media.

View detail>>
