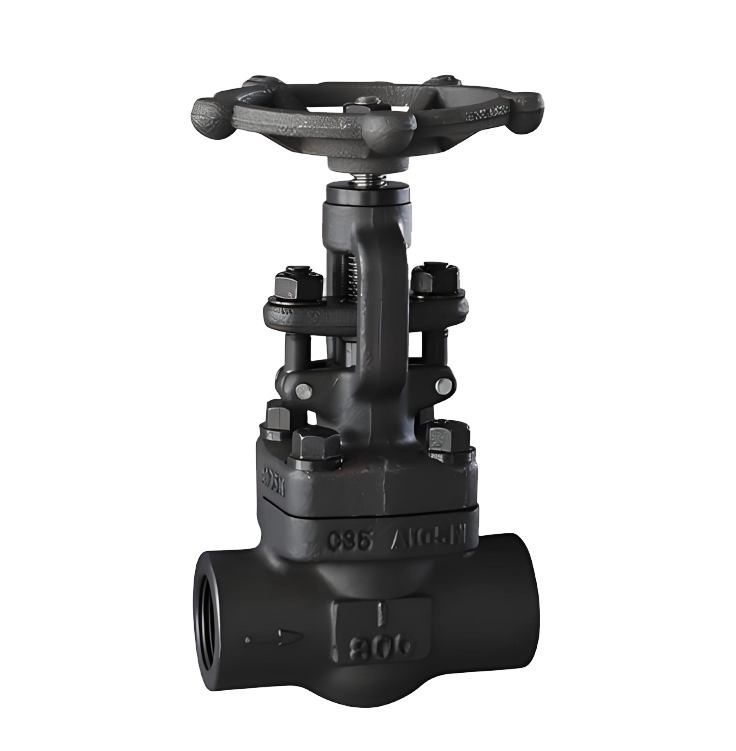

OverviewThe J61Y forged steel globe valve adopts an integral forged valve body structure, and the conical valve disc is driven vertically up and down along the center line of the valve seat by the valve stem, achieving precise opening and closing and flow control of the pipeline. The core of its design lies in the integrated forged steel valve body and self tightening sealing structure, which utilizes the pressure of the medium to achieve dynamic enhancement of the sealing ratio and maintain reliable sealing under high temperature and high pressure conditions. The key components of the valve are made of high-temperature resistant alloy materials, and the sealing surfaces of the valve disc and seat are welded with hard alloy and precision ground to form a metal hard sealing pair, which has excellent anti erosion and corrosion performance. The valve adopts threaded socket welding connection to achieve permanent high-strength connection with the pipeline system. Valves can be driven by manual devices or matched electric/pneumatic actuators to convert input force into linear motion of the valve stem, achieving smooth opening, closing, and adjustment. This valve is designed specifically for high-temperature and high-pressure pipeline systems in industries such as petrochemicals, electricity, and nuclear power. It is particularly suitable for steam, oil and gas, corrosive media, and harsh working conditions that require zero leakage.J61Y forged steel globe valve product diagram

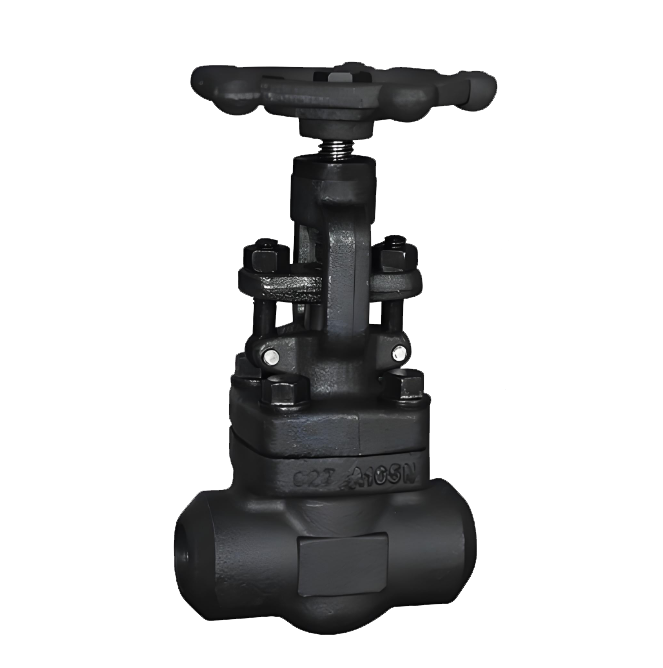

OverviewThe J11H Female Threaded Forged Steel Globe Valve is a shut-off valve designed for general and demanding industrial applications. It achieves media flow start or shut-off by rotating the handwheel to drive the stem, which in turn moves the disc in a lifting motion along the centerline of the seat. Its core design features a compact, straight-through flow path structure that ensures smooth media flow and minimizes flow resistance loss. The valve body is manufactured using a forging process from high-quality materials such as carbon steel, alloy steel, or stainless steel, ensuring excellent impact resistance and structural integrity under high-pressure conditions. Key components are produced using precision machining techniques and feature a metal-to-metal hard sealing design. The sealing surfaces are precision lapped to ensure good mating contact and reliable sealing performance during opening and closing. The valve employs a female threaded connection, attaching directly to the pipeline by screwing onto male tapered threads (such as NPT, PT, BSPT) or straight threads. This allows for quick and easy installation, as well as convenient disassembly and maintenance, making it suitable for medium to high-pressure general industrial piping systems. The valve is operated by a handwheel that lifts or lowers the disc to open or close, featuring low operating torque, short travel stroke, and simple operation, making it ideal for applications involving frequent operation. This valve is specifically designed for industrial fluid conveyance systems involving water, steam, oil, and corrosive media. It is particularly suitable for demanding applications in the petroleum, chemical, power, metallurgical, pharmaceutical, and general industrial sectors that require a compact structure, easy installation, frequent operation, and long-term stable performance under high temperature, high pressure, or corrosive environments. J11H Female Threaded Forged Steel Globe Valve Product Image

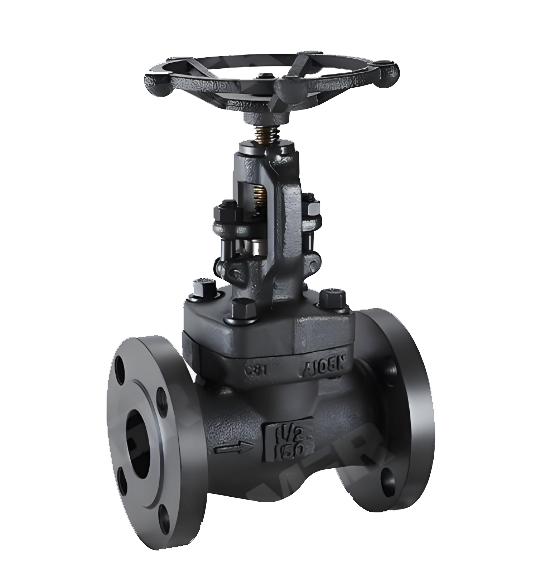

OverviewThe J41H Forged Steel Flanged Globe Valve is a shut-off valve designed for general and demanding industrial applications. It achieves media flow start or shut-off by rotating the handwheel to drive the stem, which in turn moves the disc in a lifting motion along the centerline of the seat. Its core design features a compact, straight-through flow path structure that ensures smooth media flow and minimizes flow resistance loss. The valve body is manufactured using a forging process from high-quality materials such as forged steel, forged stainless steel, ensuring excellent impact resistance and structural integrity under high-pressure conditions. Key components are produced using precision machining techniques and feature a metal-to-metal hard sealing design. The sealing surfaces are precision lapped to ensure good mating contact and reliable sealing performance during opening and closing. The valve utilizes a flanged connection, where the valve body flange is secured to the pipeline flange using bolts and a gasket seal. This allows for convenient installation and disassembly while providing reliable sealing, making it suitable for medium to high-pressure general industrial piping systems. The valve is operated by a handwheel that lifts or lowers the disc to open or close, featuring low operating torque, short travel stroke, and simple operation, making it ideal for applications involving frequent operation. This valve is specifically designed for industrial fluid conveyance systems involving water, steam, oil, and corrosive media. It is particularly suitable for demanding applications in the petroleum, chemical, power, metallurgical, pharmaceutical, and general industrial sectors that require a robust structure, reliable sealing, frequent operation, and long-term stable performance under high temperature, high pressure, or corrosive environments. J41H Forged Steel Flanged Globe Valve Product Image

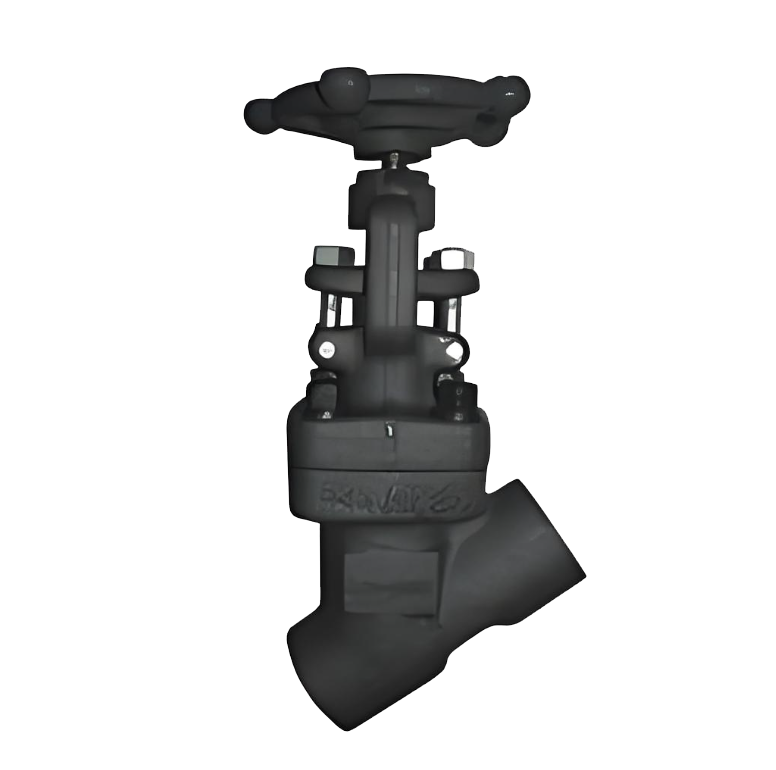

OverviewJ65Y Forged Steel YType Globe Valve is a forged steel globe valve strictly designed in accordance with relevant national standards and industry specifications. Its core structural feature is a Ypattern flow path in the valve body. The handwheel or electric actuator drives the stem and disc to open, close, or precisely regulate the pipeline medium through an inclined lifting motion at a certain angle to the medium flow direction.The valve body is integrally dieforged from highquality forged steel, forged stainless steel, or similar materials, providing a dense structure and high strength capable of withstanding high pressure and temperature fluctuations. The internal closing member is a tapered disc, and the sealing surfaces are hardfaced with cobaltbased alloy or chromium stainless steel, then precision lapped to achieve a metaltometal highhardness seal.The Ypattern design creates a streamlined passage between the disc and seat, resulting in extremely low flow resistance and pressure drop, while offering excellent throttling and regulating characteristics. The valve provides flexible connection options, including flanged connections (in accordance with GB/T 9113), socket welding, or butt welding, to meet various pipeline system installation requirements.The stem is a risingstem type, with opening and closing controlled via threaded transmission, ensuring smooth and reliable operation. This valve is specifically designed for water, steam, oil, and mildly corrosive media within an operating temperature range of -29°C to +425°C. It is widely used in industrial piping systems such as petrochemical, power, metallurgy, and heating networks, and is particularly suitable for applications requiring low flow resistance, frequent operation, or throttling regulation.J65Y Forged Steel Y-Pattern Stop Valve Product Image

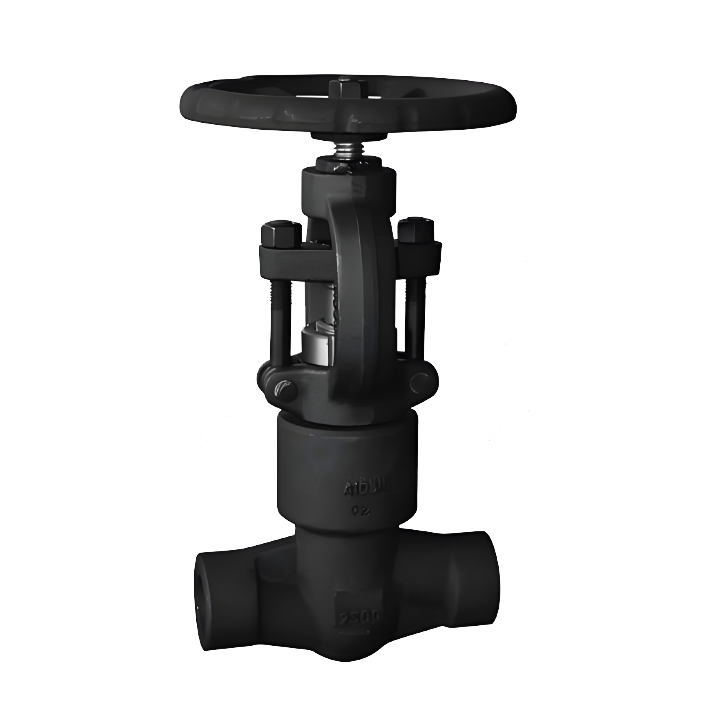

OverviewThe J61H forged steel self-sealing globe valve is a forged steel globe valve designed in strict accordance with national standards and industrial specifications. Its core feature is the self-sealing bonnet structure. The handwheel drives the valve stem to lift the disc vertically, realizing reliable opening and closing of the medium in the pipeline.The valve body is forged from high-quality carbon steel or alloy steel, featuring compact structure and high strength to withstand high pressure and temperature. The sealing surfaces of the disc and seat are usually overlay-welded with chromium stainless steel or hard alloy, and processed by precision grinding to ensure reliable sealing, wear resistance and erosion resistance.A key structural feature of this valve is that the higher the cavity pressure, the greater the sealing force exerted by the self-sealing packing on the bonnet, thus achieving pressure self-tight sealing and effectively preventing external leakage at the valve stem. The valve is usually connected by flange, welding or thread for firm connection with the piping system.The J61H forged steel self-sealing globe valve is specially designed for piping systems with medium such as steam, oil and water at operating temperatures ≤ 550℃. It is widely used in boilers, high-pressure pipelines and water supply systems in thermal power generation, petrochemical, metallurgical and other industries, and is especially suitable for shutting off or connecting pipeline media under high temperature and high pressure conditions.Product Drawing of J61H Forged Steel Self-Sealing Globe Valve
