ZQDF 2-Way 2-Position Piston Type (Normally Closed) Steam Solenoid ValveCharacteristic
Lift-Assistant Linkage Mechanism for Zero-Pressure Start: The valve features a rugged internal mechanical linkage connecting the electromagnetic moving plunger directly to the main piston. Under zero differential pressure (0 bar) or subtle micro-pressure variance, the electromagnetic lifting force pulls the main piston directly to open the valve fully. When the pipeline experiences high differential pressures, the valve automatically utilizes the fluid's inherent energy for pilot-assisted opening. This blends the absolute low-pressure reliability of direct-acting valves with the large-flow capabilities of pilot-operated designs.
High-Temperature Metallic Piston Core with Hard Sealing: Replacing standard rubber diaphragms—which are extremely prone to thermal aging, hardening, and tearing under steam exposure—the core configuration relies on a precision-ground metal piston assembly. The piston rings and heat-conductive guiding sleeves are meticulously lapped and paired with premium high-grade PTFE and graphite composite seal rings. This ensures tight gas sealing and negligible thermal deformation even over hundreds of thousands of thermal cycles across an ultra-wide window from -5°C to 180°C.

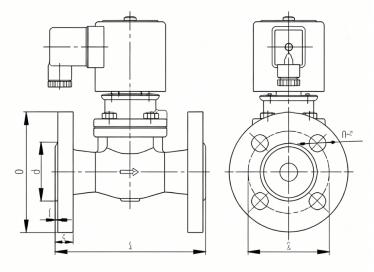

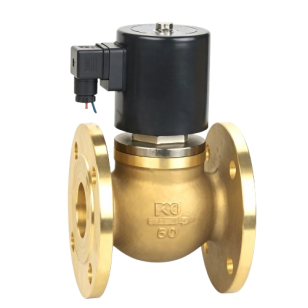

Premium Cast Brass with Diverse Connection Formats: Cast from thickened brass alloy, the valve body exhibits outstanding tensile strength at high temperatures and superior resistance to localized pitting caused by acidic condensate pooling. Alongside the compact, easily installable threaded models, robust flanged variants (designated by the "F" suffix) are specifically supplied for large-diameter headers or high-vibration applications, drastically enhancing structural bending rigidity and preventing leakage.
Fail-Safe Normally Closed Arrangement with Flow Optimization: The valve adheres to a 2-way 2-position normally closed (NC) electrical layout. Upon routine power termination or sudden emergency outage, the main piston returns instantly to its seat via a high-fatigue-life return spring, blocking the flow of thermal media and acting as a dependable fail-safe barrier. The internal hydrodynamic channels are georadially smoothed to optimize flow capacity (Cv value), significantly lowering fluid pressure drops and mitigating high-velocity steam turbulence noises.
