The VX2 Direct-acting Solenoid Valve is an electromagnetically driven control valve deeply customized for high-frequency precision fluid pipeline control and medium-to-high pressure automated general equipment. Featuring a precise specification profile covering sizes from DN6 to DN15, this series boasts a highly compact and streamlined geometry. While significantly optimizing space utilization, it fully supports high-precision G thread and NPT thread standard connections, greatly facilitating prompt on-site assembly and seamless replacement within domestic and international piping layouts. The internal flow channels and core sealing configurations have undergone meticulous fluid dynamics optimization for direct-acting high-pressure and low-pressure-differential operations, delivering exceptional responsiveness and minimal flow resistance loss without requiring a minimum working pressure within an expansive pressure range of 0 to 30 bar. To accommodate diverse and harsh industrial operational environments, the valve bodies are available in two premium materials: high-quality forged Brass and versatile corrosion-resistant SS304 Stainless Steel. It is universally compatible with industrial water, low-viscosity liquids, air, neutral gases, and light oils, serving as an ideal component choice for modern automated fluid control networks and integrated modular piping assemblies.

Product Image:VX2 Direct-acting solenoid valve

Compact Geometry & Multi-Thread Standards: Engineered specifically for micro and small-bore pipelines ranging from DN6 to DN15, the ultra-compact structure substantially reduces the overall footprint. Universal compatibility with international G and NPT thread standards ensures flawless integration with diverse industrial automation pipeline loops worldwide.

Pure Direct-Acting Drive for Zero-Differential Pressure Span: Utilizing a pure direct-acting drive mechanism, the valve maintains stable operation across an ultra-wide pressure spectrum of 0 to 30 bar. It supports agile zero-differential pressure initiation and instantaneous switching completely independent of pipeline fluid pressure, achieving millisecond-level response times.

Premium Body Materials for Variable Conditions: The Brass variants offer outstanding cost-performance and excellent machining precision, tailored for general water lines, pneumatic loops, and light oil configurations. The SS304 Stainless Steel models are purpose-built for light corrosion, washing, harsh environments, or conditions requiring high cleanliness, showing exceptional resistance against chemical erosion and localized oxidation.

All-Weather Wide Temperature Resilience: Boasting an operational thermal range of -15 to 80 ℃, the specialized elastomeric seals and robust valve body maintain excellent physical elasticity and tensile strength even in freezing outdoor winters or sharp overnight temperature drops, completely resisting hardening or cracking to secure long-term leak-proof integrity.

Structure Diagram:VX2 Direct-acting solenoid valve

Specification Sheet

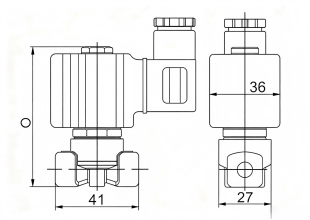

Outline Diagram:VX2 Direct-acting solenoid valve

Outline Dimension Table   （Unit:mm）
