Y43X Pilot Piston Pressure Reducing Valve Overview

The Y43X Pilot  Piston Pressure Reducing Valve is a high-performance pressure regulation device designed based on the hydraulic linkage principle. Through the precise sensing of the pilot valve and the linkage control of the main valve piston, it achieves automatic and stable regulation of system pressure. Driven by the medium's own energy, the valve can accurately and stably reduce the fluctuating high-pressure fluid at the inlet to a preset outlet pressure value, while effectively suppressing the interference of flow changes on the outlet pressure. Its design balances control precision and structural strength, making it suitable for industrial fluid control systems with high requirements for pressure stability. Typically adopting a flange connection and cast steel valve body structure, the valve is widely used in water supply pipe networks, fire protection systems, industrial circulating water, and medium-low pressure steam pipelines. It is one of the core equipment for realizing system pressure zoning management and ensuring the safe operation of equipment.

Y43X Pilot Piston Pressure Reducing Valve Product Image

Y43X Pilot Piston Pressure Reducing Valve Features

1. Pilot-piston linkage for precise control

Adopts a two-stage regulation mechanism where the pilot valve senses pressure signals and the main valve piston executes control. The pilot valve responds sensitively to pressure changes, driving the main valve piston to move smoothly through hydraulic transmission. It achieves high-precision pressure control under large flow conditions, with pressure stabilization performance superior to direct-acting pressure reducing valves.

2. Balanced piston structure for easy regulation

The main valve adopts a balanced piston design, which effectively offsets the unbalanced force of the medium on the valve disc. This allows the valve to open and close easily even under high pressure difference conditions, with good action linearity. The structure significantly reduces execution resistance and extends the service life of the valve.

3. Wide pressure reduction range and strong adaptability

Has a large pressure reduction ratio range (usually up to 8:1 or more), and the outlet pressure can be easily set by adjusting the pilot valve spring. The internal flow channel is optimally designed to balance pressure stabilization performance and flow capacity, making it suitable for working conditions with large fluctuations in inlet pressure.

4. Self-cleaning and anti-pollution design

The main valve piston has a self-cleaning function during reciprocating movement, which can prevent impurity deposition and jamming. The pilot control circuit is equipped with a filtering device as standard, which effectively intercepts pipeline particles, protects precision pilot components, and ensures reliable long-term operation of the valve in general water quality.

5. Compact structure and convenient maintenance

Adopts a modular design, where the pilot valve and main valve body can be separated for quick inspection, repair and maintenance of key components. The flange connection ensures stable installation. Some models are equipped with pressure gauge interfaces and safety valve options to support function expansion and system integration.

Y43X Pilot Piston Pressure Reducing Valve Structure Diagram

Parts Name Material List

Dimensions Standard Requirements

1. The structural length of the valve shall conform to the standard GB/T12221.

2. The connecting flange shall conform to the standard GB/T 9113.

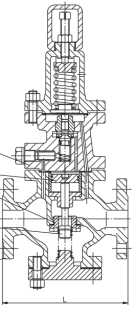

Y43X Pilot Piston Pressure Reducing Valve View Drawing

Y43X Pilot Piston Pressure Reducing Valve Dimensions Table
