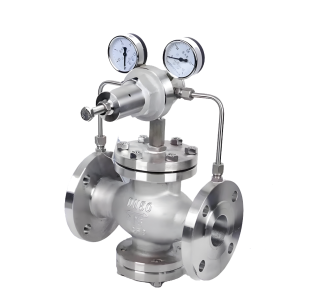

YK43X Nitrogen Pressure Reducing Valve Features
1. Nitrogen-Compatible Sealing and Materials
The internal sealing elements are made of special materials (such as enhanced PTFE and fluoroelastomer) that have passed nitrogen compatibility testing, avoiding gas contamination caused by material aging. The flow channel surface is polished or nickel-plated to reduce gas adsorption and residue, ensuring the purity and chemical stability of the output nitrogen.
2. High-Precision Pilot Pressure Stabilization Control
The micro pilot valve senses fluctuations in outlet pressure and links with the main valve piston for proportional regulation, achieving high-precision pressure reduction when the inlet pressure ranges from 0.5 to 20MPa (control accuracy up to ±3%). The balanced piston structure effectively suppresses the interference of flow changes on outlet pressure, making it suitable for working conditions with frequent fluctuations in gas consumption.
3. Anti-Crystallization and Dry Gas Optimized Design
Targeting the characteristic of low-temperature condensation easily caused by high-pressure nitrogen pressure reduction, key parts of the valve body adopt low-temperature resistant materials and optimized heat conduction structure to prevent malfunction due to local icing. The internal flow channel avoids dead ends, reducing the accumulation of moisture or impurities, and is suitable for long-term stable transmission of dry nitrogen.
4. Safety Redundancy and Operational Protection
Comes standard with a high-mesh sintered filter to protect the pilot circuit, and the outlet can be optionally equipped with dual protection of a safety relief valve or rupture disc. The adjusting mechanism uses a precision handwheel with locking function to prevent pressure drift caused by vibration, and is equipped with a pressure gauge interface for real-time monitoring.
5. Modular Maintenance and Long-Life Design
The main valve and pilot valve adopt a separable modular structure, supporting quick replacement of seals and filter units. Key components undergo wear-resistant and anti-corrosion treatment, significantly extending the service life under continuous operation conditions. No overall disassembly is required during maintenance, reducing system downtime and operating costs.
