H41H Forged Steel Lift Check Valve

H41H Forged Steel Lift Check Valve

  • Model:H41H-16P/H41H-25P/H41H-10C/H41H-16C/H41H-40P
  • Specification:DN15-50
  • Temperature:≤ 425 ℃
  • Medium:Water, Oil, Steam
  • Pressure:PN16,PN25,PN40
  • Connection method:Flange
  • Driving method:automated
  • Material:forged steel、forged stainless steel
x

Add QR code to serve you!

x

Add QR code to serve you!

x

Add QR code to serve you!

x
H41H Forged Steel Lift Check ValveOverview

H41H Forged Steel Lift Check Valve Overview

The H41H Forged Steel Lift Check Valve is an automatic valve that utilizes a forged valve body and operates through the vertical lifting and lowering motion of its disc to achieve unidirectional flow control. The valve body is typically constructed from forged steel materials such as A105, ensuring robust and compact construction. It features a metal hard-seal design, with the sealing surfaces of the disc and seat often overlay-welded with hard alloys.  Its working principle involves the disc being lifted open by the pressure of forward-flowing medium. When the medium flow ceases or reverses, the disc rapidly returns to the seat under its own weight and reverse pressure, achieving a tight seal.  Designed to meet high standards for pressure resistance, this valve is suitable for demanding applications involving high temperatures, high pressures, high flow velocities, and stringent sealing requirements. It is widely used in pipelines for power plants, petrochemical industries, steam systems, and high-pressure water supply systems, serving as a critical component to prevent medium backflow.

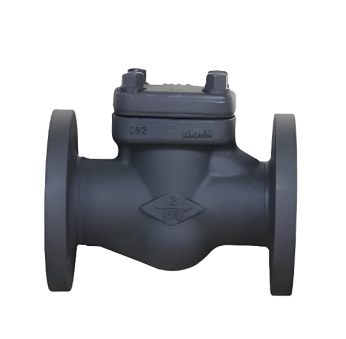

H41H Forged Steel Lift Check Valve Product Image

H41H Forged Steel Lift Check ValveCharacteristic

H41H Forged Steel Lift Check Valve Features

1. Forged Steel Body for High-Pressure Performance

  The valve body is manufactured using forging technology, ensuring uniform material density and freedom from casting defects. This provides exceptional mechanical strength and pressure-bearing capacity, making it suitable for demanding applications involving high pressure, high temperature, and frequent pressure fluctuations.

2. Hard Metal Sealing for Wear Resistance

  The sealing surfaces of the disc and seat are made of hard alloy materials, offering excellent resistance to wear, erosion, and high temperatures. This ensures a long service life and reliable sealing performance, even in media containing fine particles or under high-temperature conditions.

3. Strict Installation Requirements

  The valve must be installed horizontally with the valve stem axis strictly vertical, ensuring the disc can freely return under gravity—a prerequisite for proper operation. These requirements must be strictly adhered to during installation.

4. Rapid Response and Low Flow Resistance

  The short vertical travel of the disc enables quick closure, effectively mitigating water hammer effects. When open, the valve provides an unobstructed flow path with minimal flow resistance, exerting negligible impact on system pressure.

5. Stable Structure and Maintainability

  The guiding mechanism ensures smooth disc movement and prevents sticking. The robust overall design allows for disassembly and maintenance or replacement of sealing components during major system overhauls, ensuring ease of maintenance.

H41H Forged Steel Lift Check Valvestructure principle

H41H Forged Steel Lift Check Valve Structure Diagram

Parts Name Material List

NO.NameMaterial
6boltB7、B8
5gasketSS316、graphite、PTFE
4name platestainless steel
3disccarbon steel、stainless steel
2bonnetcarbon steel、stainless steel
1bodycarbon steel、stainless steel


H41H Forged Steel Lift Check Valvetechnology parameter
Performance Specification
Nominal Pressure1.6/2.5/4Mpa
Shell Test2.4/3.75/6
Seal Test1.76/2.75/4.4
Suitable Temp.≤425


H41H Forged Steel Lift Check Valvestandard size

Dimensions Standard Requirements

1. The structural length of the valve shall conform to the standard ASME16.10.

2. The connecting flange shall conform to the standard ASME16.50.

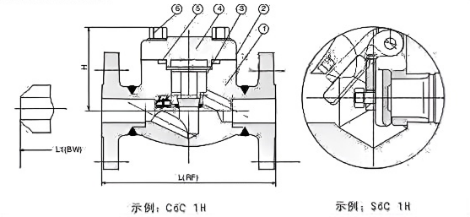

H41H Forged Steel Lift Check Valve View Drawing

H41H Forged Steel Lift Check Valve Dimensions Table

NPSDN15DN20DN25DN32DN40DN50
L(RF) L1(BW)150Lb108117127140165203
300Lb152178203216229267
600Lb165190216229241292
H150Lb~300Lb61617995103118
600Lb617995103118135


Articles related to technology research and development
  • Slow-closing wafer check valve patent

       The utility model provides a slow-closing wafer check valve, which includes a valve body, a valve disc, a valve shaft, and a torsion spring sleeved on the valve shaft. The valve body is provided with a medium channel for medium circulation in the axial direction, which includes an inlet end and an outlet end. The valve disc, valve shaft, and torsion spring are symmetrically arranged in two groups relative to the center of the valve body. The utility model further includes a damping device located at the inlet end, which includes a cylinder inserted on the valve body, a piston rod located inside the cylinder, a spring, and a cover connected to the outer end of the cylinder. The cylinder is provided with a first cavity and a second cavity that are connected and communicated. The cross-section of the second cavity is square, and its cross-sectional area is larger than that of the first cavity. One end of the piston rod located inside the medium channel is provided with a movable block. The utility model has low noise and technical characteristics of quick opening, slow closing, and water hammer elimination, enabling light-load pump start-up and preventing the generation of water hammer during pump shutdown.

    1. A slow-closing wafer check valve, comprising a valve body, a valve disc, a valve shaft, and a torsion spring sleeved on the valve shaft. The valve body is provided with a medium passage for medium circulation in the axial direction, and the medium passage includes an inlet end and an outlet end. The valve disc, valve shaft, and torsion spring are symmetrically arranged in two groups relative to the center of the valve body. The valve also comprises a damping device located at the inlet end. The damping device includes a cylinder inserted on the valve body, a piston rod located inside the cylinder, a spring, and a cover connected to the outer end of the cylinder. The cylinder is provided with a first cavity and a second cavity that are connected and communicated. The cross-section of the second cavity is square, and the cross-sectional area of the second cavity is larger than that of the first cavity. One end of the piston rod is located inside the second cavity, and the other end penetrates through the first cavity and is located inside the medium passage. The end of the piston rod located inside the medium passage is provided with a movable block, and the end of the piston rod located inside the second cavity is provided with an external thread. The second cavity is provided with a limit plate that is adapted to and threadedly connected with the piston rod. The spring is sleeved on the piston rod, with one end abutting against the limit plate and the other end abutting against the inner wall of the second cavity. The side of the valve disc facing the piston rod is provided with a driving block that cooperates with the movable block. During the closing process of the valve disc, the side of the driving block facing the center of the valve body cooperates with the movable block to achieve displacement of the piston rod relative to the cylinder towards the center of the valve body. The damping device is symmetrically arranged in two groups relative to the center of the valve body.

    2. A slow-closing wafer check valve according to claim 1, characterized in that a square hole is axially provided at the end of the piston rod located in the second cavity, an adjuster is inserted at a position on the cover corresponding to the square hole, a driving rod adapted to the square hole is provided at the end of the adjuster, and the adjuster is rotatable relative to the cover.

    3. A slow-closing wafer check valve according to claim 2, characterized in that a limit slot is provided at the connection between the cover and the regulator, and a limit mechanism is arranged inside the limit slot. The limit mechanism comprises a ball, a tower spring connected to the ball, and a positioning column for fixing the tower spring. At least four engaging slots adapted to the ball are provided circumferentially at the connection between the regulator and the cover.

    4. A slow-closing wafer check valve according to claim 3, characterized in that the top edge of the engaging groove is provided with a rounded corner.

    5. A slow-closing wafer check valve according to claim 1, characterized in that the valve body is provided with a stepped groove adapted to the cylinder body.

    6. A slow-closing wafer check valve according to claim 5, characterized in that a sealing ring is sleeved at the connection between the cylinder and the valve body.

    7. A slow-closing wafer check valve according to claim 1, characterized in that the valve disc is provided with a build-up welding layer that is sealed with the valve body. 8. A slow-closing wafer check valve according to claim 7, characterized in that one side of the build-up welding layer is provided with vulcanized rubber that is sealed with the valve body.
