H42F46 Fluorine-Lined Lift Check Valve

H42F46 Fluorine-Lined Lift Check Valve

  • Model:H42F46-16C/H42F46-10C/H42F46-25C/H42F46-16/H42F46-10/H42F46-25/H42F46-16P/H42F46-25P
  • Specification:DN25-DN150
  • Temperature:≤150 ℃
  • Medium:Sulfuric Acid, Hydrochloric Acid, Strong Oxidizers, Liquid Media
  • Pressure:PN10,PN16,PN25
  • Connection method:Flange
  • Driving method:automated
  • Material:Cast Iron, Cast Steel, Stainless Steel Lined with FEP/PTFE
x

Add QR code to serve you!

x

Add QR code to serve you!

x

Add QR code to serve you!

x
H42F46 Fluorine-Lined Lift Check ValveOverview

H42F46 Fluorine-Lined Lift Check Valve Overview

The H42F46 Fluorine-Lined Lift Check Valve is a specialized valve designed for highly corrosive media. Its valve body and inner surface are entirely lined with fluoroplastic materials such as perfluoroalkoxy (FEP) or polytetrafluoroethylene (PTFE). Featuring flanged connections and a lift-type structure, the valve achieves unidirectional flow control through the vertical motion of its disc.

The working principle involves the disc lifting open under the pressure of forward-flowing medium and automatically closing under its own weight and reverse pressure when the medium stops or reverses. The sealing surfaces are typically composed of corrosion-resistant alloys or fluoroplastics.

By leveraging the exceptional chemical inertness of fluoroplastics, this valve can withstand erosion from most strong acids, strong alkalis, organic solvents, and various mixed corrosive media. It is widely used in corrosive media pipeline systems across industries such as chemical processing, pharmaceuticals, metallurgy, electroplating, and environmental protection, serving as a critical safety device to prevent the backflow of harmful media.

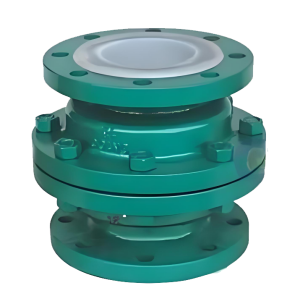

H42F46 Fluorine-Lined Lift Check Valve Product Image

H42F46 Fluorine-Lined Lift Check ValveCharacteristic

H42F46 Fluorine-Lined Lift Check Valve Features

1. Outstanding Corrosion Resistance

  The valve body cavity and flow passage components are fully lined with fluoroplastics such as FEP/PTFE, offering excellent resistance to almost all concentrations of acids, alkalis, salts, and organic solvents. This effectively addresses the corrosion vulnerability of metal valves.

2. Reliable Sealing and Safety

  The sealing pair is specifically optimized for corrosive media, ensuring dependable closure and sealing performance. It effectively prevents the backflow of hazardous media, safeguarding upstream equipment and operational safety.

3. Strict Installation Requirements

  The valve must be installed strictly horizontally with the valve stem kept vertical to ensure the disc can freely return under gravity. Correct installation orientation is fundamental to its proper operation.

4. Lightweight and Anti-Adhesion Properties

  The fluoroplastic lining features a smooth, dense surface with an extremely low friction coefficient, minimizing adhesion of crystalline or deposited media. This design results in low flow resistance and a relatively lightweight valve structure.

5. Application Scope and Limitations

  The operating temperature and pressure ranges are limited by the properties of the fluoroplastic lining (typically suitable for -20°C to 150°C and low to medium-pressure applications). It is not recommended for use with media containing hard particles, highly abrasive conditions, or extreme vacuum environments. Care must be taken during installation and maintenance to avoid damaging the lining layer.

H42F46 Fluorine-Lined Lift Check Valvestructure principle

H42F46 Fluorine-Lined Lift Check Valve Structure Diagram

Parts Name Material List

NO.NameMaterial
4discCast Steel, Stainless Steel Lined with FEP/PTFE)
3bonnetCast Iron, Cast Steel, Stainless Steel Lined with FEP/PTFE
2gasketFEP(F46)、PCTFE(F3)、PTFE(F4)
1bodyCast Iron, Cast Steel, Stainless Steel Lined with FEP/PTFE


H42F46 Fluorine-Lined Lift Check Valvetechnology parameter
Performance Specification
Nominal Pressure1.0/1.6/2.5Mpa
Shell Test1.5/2.4/3.75
Seal Test1.1/1.76/2.75
Suitable Temp.≤150


H42F46 Fluorine-Lined Lift Check Valvestandard size

Dimensions Standard Requirements

1. The structural length of the valve shall conform to the standard GB/T 12221.

2. The connecting flange shall conform to the standard JB/T79-94、GB9113.1-26.

H42F46 Fluorine-Lined Lift Check Valve View Drawing

H42F46 Fluorine-Lined Lift Check Valve Dimensions Table

SIZEPN6尺寸 mm
DNLDD1D2fbZ-Φd
2515210075603144-Φ12
3215212090703164-Φ14
40178130100803164-Φ14
50178140110903164-Φ14
651901601301103.5184-Φ14
802031851501253.5184-Φ18
1002672051701454204-Φ18
1253052352001754208-Φ18
1503942602252004208-Φ18
SIZEPN10尺寸 mm
DNLDD1D2fbZ-Φd
2515211585653164-Φ14
32152135100703184-Φ18
40178145110853184-Φ18
501781601251003184-Φ18
651901801451203.5204-Φ18
802031951601353.5204-Φ18
1002672151801554228-Φ18
1253052452101854248-Φ18
1503942802402104248-Φ23
