H44W API Swing Check Valve

H44W API Swing Check Valve

  • Model:H44W-Class150P/H44W-Class300P/H44W-Class600P/H44W-Class900P/H44W-1500P/H44W-Class150C/H44W-Class300C/H44W-Class600C/H44W-Class900C/H44W-1500C
  • Specification:1/2"-48"
  • Temperature:≤ 540 ℃
  • Medium:Water, Oil , Steam
  • Pressure:Class150LB,Class300LB,Class600LB,Class900LB,Class1500LB
  • Connection method:Flange
  • Driving method:automated
  • Material:Carbon Steel,Stainless Steel
x

Add QR code to serve you!

x

Add QR code to serve you!

x

Add QR code to serve you!

x
H44W API Swing Check ValveOverview

H44W API Check Valve Overview

The H44W API Swing Check Valve is a flanged check valve designed and manufactured in accordance with American standards (ASME/API), featuring a swing-type structure. The valve body is typically made of materials such as A216 WCB cast steel or CF8 stainless steel, with pressure ratings ranging from Class 150 to Class 600.  The valve operates by using the forward flow of the medium to push the disc open as it rotates around its pivot. When the medium stops or reverses flow, the disc automatically closes under its own weight and reverse pressure, achieving reliable unidirectional flow control.  Strictly compliant with standards such as API 6D, this valve is specifically designed for high-pressure, high-temperature, and demanding pipeline systems in industries such as petroleum, natural gas, chemical processing, and power plants. It effectively prevents backflow of water, steam, oil products, and corrosive media, making it a critical component for ensuring the safe operation of industrial facilities.

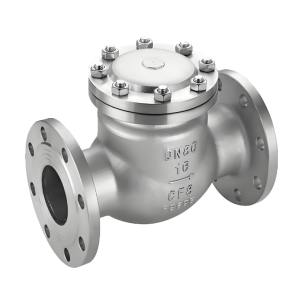

H44W API Check Valve Product Image

H44W API Swing Check ValveCharacteristic

H44W American Standard Swing Check Valve Features

1. Strict Compliance with American Standards

  The design, manufacturing, and testing fully adhere to standards such as ASME B16.34 and API 6D, ensuring the valve meets international project requirements in terms of pressure ratings, structural dimensions, material performance, and interchangeability.

2. High Pressure and Temperature Resistance with Metal Hard Sealing

  The disc and seat are often overlay-welded with hard alloys or feature stainless steel sealing surfaces, providing excellent resistance to erosion and high temperatures. This makes the valve suitable for high-pressure differentials, high temperatures, and media containing particles, ensuring a long service life.

3. Flexible Installation and Low Pressure Loss

  The swing-type design allows for horizontal or vertical installation (with upward flow direction), offering strong adaptability. When fully open, the disc causes minimal flow resistance, barely affecting pipeline flow and system energy consumption.

4. Robust Structure and High Safety Reliability

  The valve body is designed with high structural strength, capable of withstanding pipeline stress and pressure impacts. Some models are equipped with fireproof and anti-static designs. The durable hinge mechanism ensures rapid closure, effectively mitigating water hammer effects.

5. Easy Maintenance and Wide Applicability

  The structural design facilitates online inspection, with some models supporting quick maintenance. Suitable for various industrial media such as petroleum, chemicals, LNG, and power plants, this valve is a preferred check device for high-standard pipeline systems.

H44W API Swing Check Valvestructure principle

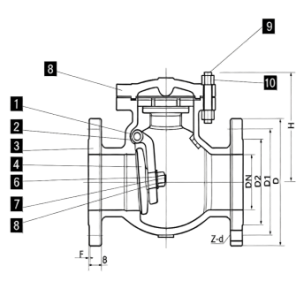

H44W API Check Valve Structure Diagram

Parts Name Material List

NO.NameMaterial
1BODYcarbon steel、stainless steel
2DISCcarbon steel、stainless steel
3GASKETGraphite
4NUTA194-B8
5BOLTA193-8
6ROCKER ARMcarbon steel、stainless steel
7PLUGstainless steel
8CAPcarbon steel、stainless steel
9NUTA194-B4
10BOLTA193-8


H44W API Swing Check Valvetechnology parameter
性能规范表Performance Specification
公称压力Nominal Pressure2-25(150LB-1500LB)Mpa
强度试验压力Shell Test3-37.5
密封试验压力Seal Test2.2-27.5
适用温度Suitable Temp.≤540


H44W API Swing Check Valvestandard size

Dimensions Standard Requirements

1. The structural length of the valve shall conform to the standard ASME B16.10.

2. The connecting flange shall conform to the standard ASEM B16.50.

H44W API Check Valve View Drawing

H44W API Check Valve Dimensions Table

DNHDD1D2BFZ-d
32120135100781824-18
40130145110851834-18
501401601251002034-18
651601801451202238-18
801851951601352238-18
1002102301901602438-23
1252502702201882838-25
1503003002502183038-25
20038036031027834312-25
