Features

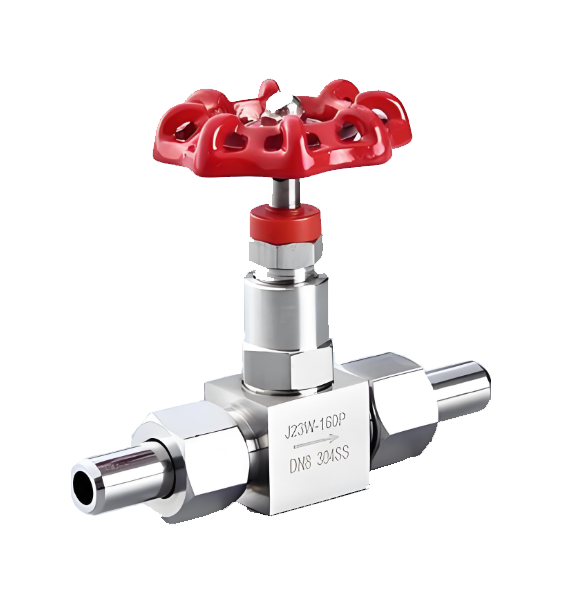

1.Compact Extension and High-Strength Connection: The combined structure of external threads welded to nipples maintains a compact valve body while enabling a permanent, robust connection to the pipeline system via the extended nipples. The valve body is forged as a single piece from high-quality carbon steel or stainless steel, offering both high strength and excellent extended adaptability. It is particularly suitable for applications with dual requirements for connection strength and spatial layout.
2.Reliable Sealing and Pressure-Resistant Design: Utilizing a metal hard-seal structure (body seal or hard alloy overlay welding), it provides excellent resistance to high temperatures, high pressure, and erosion. The welded nipple connection eliminates potential leakage points associated with threaded joints, achieving integrated sealing with the pipeline. This makes it suitable for high-pressure, high-temperature media environments with extremely high demands for sealing reliability.
3.Robust Construction and Vibration-Resistant Design: The welded connection integrates the valve and pipeline into a rigid assembly, offering significantly better vibration and fatigue resistance compared to threaded or flanged connections. This structure effectively withstands pipeline stresses and mechanical vibrations, making it suitable for industrial equipment with significant vibration or long-term cyclic loading.
4.Stable Operation and Precise Control: The handwheel drive, paired with precision-machined stem threads, ensures smooth, reliable transmission and good self-locking performance. The disc moves vertically along the valve seat with precise opening/closing trajectory, enabling smooth and reliable flow shutoff to meet the demands for precise valve operation in high-pressure applications.
5.Temperature and Corrosion Resistance with Wide Applicability: The forged steel or stainless steel valve body materials offer good high-temperature strength and general corrosion resistance, making the valve suitable for various demanding conditions, including high-temperature steam, high-pressure oil and gas, and non-highly corrosive chemical media. It is widely used in power plants, petrochemical facilities, high-pressure industrial pipelines, and terminal applications requiring highly reliable shutoff.
6.Professional Installation and Long-Life Design: The valve requires professional welding for installation, resulting in a permanent connection with a long maintenance cycle. The metal hard-seal pair has a low wear rate, significantly extending service life. Routine maintenance primarily involves monitoring the stem packing seal and lubricating moving parts, resulting in low maintenance costs and high reliability.
