Features:

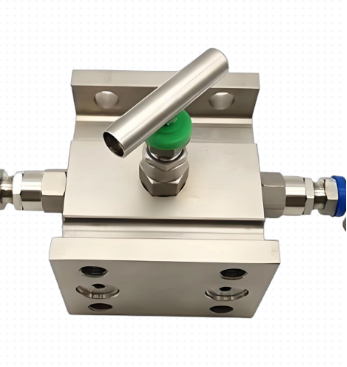

1. Integrated design
Integrating high pressure valve, low pressure valve, and balance valve into one valve body has a compact structure, occupies less space, reduces leakage points, and improves system reliability.
2. Dedicated to differential pressure transmitters
Specially designed to be compatible with differential pressure transmitters, it can be directly installed between the transmitter and the process pipeline, simplifying installation and facilitating maintenance.
3. Standardized operation sequence
Through the collaborative operation of three valves, the normal operation, zero calibration, and online isolation of the differential pressure transmitter can be achieved, preventing damage caused by one-way pressure due to misoperation.
4. Multiple valve seat forms to choose from
According to the working conditions, various valve seat forms such as conical sealing, spherical sealing, or flat sealing can be used, and the sealing performance is reliable.
5. Flexible material selection
The valve body material can be selected from stainless steel (304/316), carbon steel, etc., to meet the corrosion requirements of different media.
6. Diverse connection methods
The input end can be connected to the process pipeline using flanges, threads, or welding, and the output end can be directly connected to the transmitter. The interface is standardized and has strong universality.
