The J14W angle-type internal thread needle valve is a small-bore instrument valve featuring an angle-style body and female thread connections, operated by rotating the handwheel to drive the stem and needle-type disc for precise opening and closing. Its sealing surface is directly machined from the valve body material (“W” type), forming a metal-to-metal hard seal. The angle-style design changes the flow direction by 90°, effectively saving installation space and reducing pressure loss. This valve is primarily used for root isolation of pressure gauges and transmitters, pipeline sampling, flow regulation, and draining/venting. It serves as a critical instrument accessory in industries such as petroleum, chemical, power generation, and pharmaceuticals, ensuring safe isolation and precise control of measurement systems.

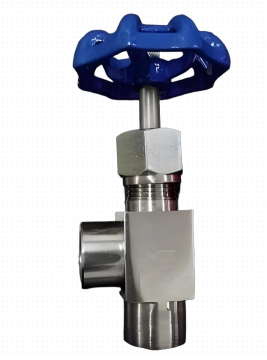

                                                                               Product Drawing of J14W Angle Type Female Threaded Needle Valve

1.Angle-style structure for space saving: The 90° flow direction change suits space-limited installations or applications requiring pipeline direction changes, offering a compact design.

2.Internal thread connections for easy installation: Both ends feature standard female threads for direct connection to pipelines or instrument ports, ensuring simple installation and reliable sealing.

3.Needle-type disc for precise regulation: The needle disc cooperates with the seat to enable precise adjustment and control of small flow rates with excellent regulation performance.

4.Metal-to-metal hard seal for reliability: Sealing surfaces are directly machined from stainless steel, forming a wear-resistant metal-to-metal hard seal with long service life.

5.All-stainless steel corrosion resistance: Body and main components are made of 304/316 stainless steel, providing excellent corrosion resistance for various corrosive media.

6.High-pressure design: Robust body structure withstands high working pressures, suitable for high-pressure applications.

Structure Diagram of J14W Angle Type Female Threaded Needle Valve

Component name and material

Performance Specification Sheet

J14W Angle Type Female Threaded Needle Valve Outline Drawing

Outline dimension table
