Overview

D341F46 cast steel flange lined fluorine butterfly valve is a valve that opens, closes, and regulates fluid channels by rotating a disc-shaped butterfly plate around its fixed shaft (valve stem). The axis of its valve stem deviates from the center of the butterfly plate sealing surface, and adopts a "single eccentricity" or more complex structural design, with asymmetric sides on both sides of the butterfly plate. The valve adopts a flange connection, which means that the valve body has standard flanges at both ends and is directly fastened to the pipeline flange through bolts. The surface of the butterfly plate and the inner cavity of the valve body are lined with fluoroplastic (such as F46, also known as perfluoroethylene propylene FEP) as the sealing surface and anti-corrosion layer, and the butterfly plate is used to rotate and press the fluorine lined valve seat to achieve sealing. This valve is driven by manual, electric, or pneumatic devices to rotate the valve stem by 90 ° or less, achieving reliable on/off and flow control for highly corrosive and other harsh media fluids.

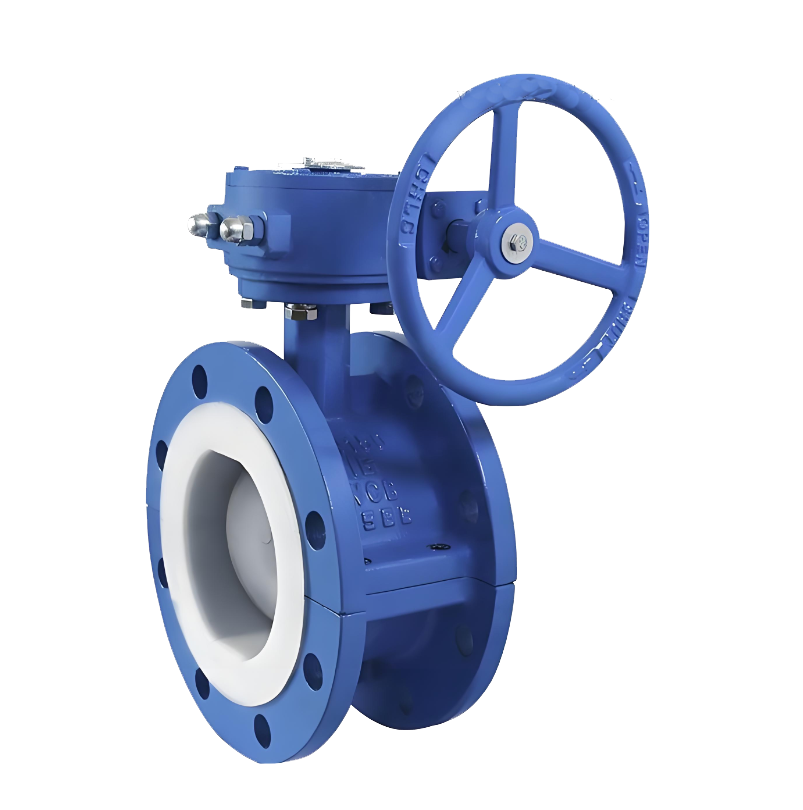

D341F46 cast steel flange lined fluorine butterfly valve product diagram

feature

1. Durable and sturdy structure: The valve body is made of cast steel and connected to standard flanges, with high structural strength and good rigidity, suitable for pipeline systems that require mechanical strength.

2. Flexible and controllable opening and closing: The butterfly plate can be fully opened or closed by rotating 90 °, and with the help of worm gear and other driving devices, it can operate smoothly and achieve flow regulation and rapid cutting.

3. Low fluid resistance: When the butterfly plate is in the fully open position, the medium flow channel is smooth, and the butterfly plate has less obstruction to the fluid, resulting in lower pressure loss.

4. Excellent sealing performance and outstanding anti-corrosion: Adopting eccentric structure combined with integral fluorine lining design, F46 (perfluoroalkoxy) lining layer covers all overcurrent surfaces, providing excellent corrosion resistance and effectively sealing strong corrosive media such as acid, alkali and salt.

5. Easy maintenance and long service life: The fluorine lining layer is integrally formed, effectively preventing the medium from corroding the valve body and reducing maintenance requirements. The flange connection method is easy to install and disassemble.

6. Specific Application: Designed specifically for media with strong corrosiveness, high purity, or harsh working conditions, it is widely used in acid, alkali, salt, organic solvent, and high-purity medium transportation pipelines in industries such as chemical, pharmaceutical, smelting, environmental protection, and electronics.

D341F46 cast steel flange lined fluorine butterfly valve structure diagram

Part name and material list

Performance Specification Sheet

D341F46 cast steel flange lined fluorine butterfly valve external dimension drawing

Overall Dimension Table
