GLH41W Axial Flow Check Valve

Model：GLH41W-150LB/GLH41W-300LB/GLH41W-600LB/GLH41W-900LB/GLH41W-1500LB/GLH41W-2500LB
Specification：2"-36"
Temperature：≤ 450 ℃
Medium：Water, Steam, Oil

Pressure：CL150 - 2500LB
Connection method：Flange
Driving method：automated
Material：Carbon Steel,Stainless Steel, DuplexSS,Monel, AL-Bronze

Consult now

Add QR code to serve you!

GLH41W Axial Flow Check ValveOverview

Overview

The axial flow check valve is an energy-saving check valve featuring a streamlined disc design that moves linearly along the pipeline axis for automatic opening and closing. It typically adopts a flanged or wafer connection. The valve body is mainly made of cast steel, stainless steel or ductile iron, with its internal disc performing axial reciprocating motion under the assistance of a flow guide and a spring. This valve can be installed either horizontally or vertically. When the medium flows in the forward direction, it pushes the disc to open along the axis, providing a completely straight-through flow path with extremely low pressure loss. When the medium stops or flows backward, the disc quickly returns to its closed position under spring force and reverse medium pressure, offering reliable sealing with minimal water hammer impact. It is specifically designed for piping systems requiring low flow resistance and high-frequency opening and closing. Widely used in long-distance pipelines, water injection systems, petrochemical plants, seawater desalination and similar projects, it serves as a key protective device ensuring efficient and stable system operation.

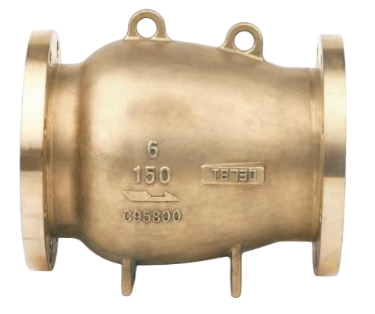

GLH41W Axial Flow Check Valve Product Image

GLH41W Axial Flow Check ValveCharacteristic

Features

Minimizes damage caused by water hammer in pipelines.

2.Eliminates flutter, reducing the likelihood of sudden valve failure in reciprocating compressor applications.

3.Protects critical equipment from costly damage caused by reverse flow.

4.Low pressure drop, energy-saving and environmentally friendly.

5.Utilizes the fast dynamic response of the axial flow check valve to reduce reverse flow velocity.

GLH41W Axial Flow Check Valvestructure principle

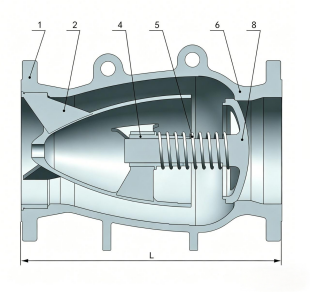

GLH41W Axial Flow Check Valve Structure Diagram

Parts Name Material List

序号NO.	部件名称Part name	材料Materials
1	阀体Body	Carbon Steel,Stainless Steel, DuplexSS,Monel, AL-Bronze
2	扩散器Diffuser
3	阀瓣Disc
4	轴套Bearing	Stainless Steel,Dulex SS,Monel, AL-Bronzel
5	弹簧Spring	SS316,InconelX-750, Inconel 718
6	阀座Seat	Mefal To Metal

GLH41W Axial Flow Check Valvetechnology parameter

性能规范表Performance Specification
公称压力Nominal Pressure	2-42(150LB-900LB)	Mpa
强度试验压力Shell Test	3-63
密封试验压力Seal Test	2.2-46.2
适用温度Suitable Temp.	≤450	℃

GLH41W Axial Flow Check Valvestandard size

Dimensions Standard Requirements

1. The structural length of the valve shall conform to the standard ASME16.10.

2. The connecting flange shall conform to the standard ASME16.50.

GLH41W Axial Flow Check Valve View Drawing

GLH41W Axial Flow Check Valve Dimensions Table

Pressure Rating ASME	Nominal Size NPS					End Connection Facing						API6D Standard Type													Weight Kg
												L(mm)
												RF								RTJ
CLASS150 PN20	2					RF						203								-					14
	3					RF						241								-					24
	4					RF						292								-					37
	6					RF						356								-					65
	8					RF						495								-					115
	10					RF						622								-					184
	12					RF						699								-					275
	14					RF						787								-					367
	16					RF						864								-					515
	18					RF						978								-					580
	20					RF						978								-					810
	24					RF						1295								-					1152
	30					RF						1524								-					2340
	36					RF						1956								-					3550
Pressure Rating ASME				Nominal Size NPS					End Connection Facing								API6D Standard Type							Weight Kg
																	L (mm)
																	RF						RTJ
CLASS300 PN50				2					RF								267						-	18
				3					RF								318						-	34
				4					RF								356						-	57
				6					RF								445						-	105
				8					RF								533						-	175
				10					RF								622						-	270
				12					RF								711						-	365
				14					RF								838						-	490
				16					RF								864						-	662
				18					RF								978						-	910
				20					RF								1016						-	1180
				24					RF								1346						-	1785
				30					RF								1594						-	2810
				36					RF								2083						-	4376
Pressure Rating ASME			Nominal Size NPS					End Connection Facing						API6D Standard Type													Weight Kg
														L(mm)
														RF					RTJ
CLASS600 PN110			2					RF/RJ-23						292					295								24
			3					RF/RJ-31						356					359								44
			4					RF/RJ-37						432					435								76
			6					RF/RJ-45						559					562								167
			8					RF/RJ-49						660					664								280
			10					RF/RJ-53						787					791								445
			12					RF/RJ-57						838					841								580
			14					RF/RJ-61						889					892								715
			16					RF/RJ-65						991					994								1060
			18					RF/RJ-69						1092					1095								1442
			20					RF/RJ-73						1194					1200								1840
			24					RF/RJ-77						1397					1407								2513
			30					RF/RJ-95						1651					1664								4564
			36					RF/RJ-98						2083					-								6360
Pressure Rating ASME		Nominal Size NPS					End Connection Facing						API6D Standard Type													Weight Kg
													L mm)
													RF					RTJ
CLASS900 PN150		2					RF/RJ-24						368					371								39
		3					RF/RJ-31						381					384								63
		4					RF/RJ-37						457					460								92
		6					RF/RJ-45						610					613								197
		8					RF/RJ-49						737					740								390
		10					RF/RJ-53						838					841								560
		12					RF/RJ-57						965					968								870
		14					RF/RJ-62						1029					1038								1104
		16					RF/RJ-66						1130					1140								1407
		18					RF/RJ-70						1219					1232								1960
		20					RF/RJ-74						1321					1334								2422
		24					RF/RJ-78						1549					1568								3661
Pressure Rating ASME					Nominal Size NPS						End Connection Facing					API6D Standard Type													Weight Kg
																L(mm)
																RF						RTJ
CLASS1500 PN260					2						RF/RJ-24					368						371							39
					3						RF/RJ-35					470						473							67
					4						RF/RJ-39					546						549							121
					6						RF/RJ-46					705						711							246
					8						RF/RJ-50					832						841							421
					10						RF/RJ-54					991						1000							730
					12						RF/RJ-58					1130						1146							1250
					14						RF/RJ-63					1257						1276							2114
					16						RF/RJ-67					1384						1407							3010
					18						RF/RJ-71					1537						1559							3922
					20						RF/RJ-75					1664						1686							5124
					24						RF/RJ-79					1943						1972							6962
Pressure Rating ASME					Nominal Size NPS					End Connection Facing					API6D Standard Type													Weight Kg
															L (mm)
															RF						RTJ
CLASS2500 PN420					2					RF/RJ-26					451						454							54
					3					RF/RJ-32					578						584							120
					4					RF/RJ-38					673						683							196
					6					RF/RJ-47					914						927							487
					8					RF/RJ-51					1022						1038							743
					10					RF/RJ-55					1270						1292							1173
					12					RF/RJ-60					1422						1445							1750
