Liquid cooling valve

Liquid Cooling Valve Models: YLQ / YLP / YLD / YLH / YLA / YLPQ / YLC Liquid cooling valves are control components specifically designed for liquid cooling systems. They are primarily used to regulate the flow rate, direction, and pressure of coolants (such as water-based coolants: deionized water, ethylene glycol/propylene glycol solutions; oil-based coolants: synthetic oils (PAO/synthetic hydrocarbons), mineral oils, silicone oils; fluorinated fluids: perfluoropolyethers (PFPE), hydrofluoroethers (HFE), perfluorinated amines (PFA)). They are key components of liquid cooling thermal management systems. Their performance directly affects the cooling efficiency, operational reliability, and safety of the system. Liquid cooling valves mainly perform three core functions: First, precise flow control via electric control valves or balancing valves to avoid localized hot spots. Second, rapid on/off switching and flow direction control using ball valves, solenoid valves, etc. Third, overpressure and backflow prevention via safety valves and check valves to protect equipment safety. The types produced by Kaivex Valve Group include ball valves (for quick isolation), electric control valves (for precise flow control), solenoid valves (for fast switching), check valves (to prevent backflow), and balancing valves (for hydraulic balance). All feature quick-connect capability (supporting hot-swappable maintenance). Liquid cooling valves have a zero-tolerance requirement for external leakage, with internal leakage meeting ANSI Class VI standards. The operating temperature range is typically -40°C to 120°C, with a pressure rating of up to 1.6 MPa.

V-port Liquid-cooled Control Ball Valve

Model：
VQ87F-16P/VQ87F-16R
Specification：
DN15-DN100
Pressure：
PN16
Material：
CF8, CF8M

V-port liquid cooling control ball valve is a precision control regulating valve specifically designed for the liquid cooling systems of computer computing data centers. Its core feature is the deep combination of the V-port ball core structure and liquid cooling heat dissipation application scenarios. In terms of structure, the ball core of this valve matches with a flow distribution plate with a V-shaped notch. During the rotation process, a certain shearing force is formed, which can effectively cut off micro-impurities in the medium and has a self-cleaning function to prevent jamming. Its flow characteristic is approximate to equal percentage, with a large adjustable ratio and strong flow capacity. It can dynamically adjust the coolant flow according to the heat generation requirements of the equipment, and precisely control parameters such as flow, pressure, and temperature, avoiding overcooling or insufficient heat dissipation. This valve is dedicated to liquid cooling systems, mainly regulating cooling media such as water, ethylene glycol/propylene glycol mixture with a maximum concentration of no more than 60%, deionized water, and fluorinated liquids. In terms of material selection, it is compatible with coolants (such as stainless steel body paired with fluorine rubber or perfluoroelastomer seals) to prevent electrochemical corrosion or swelling of sealing components. The internal channel of the valve body is smooth and without dead corners, with high cleanliness requirements, ensuring the long-term and reliable operation of the system.Product Image:V-port Liquid-cooled Control Ball Valve

View detail>>
Clamp-Type Liquid Cooling On-Off Ball Valve

Model：
OQ87F-16P/OQ87F-16R
Specification：
DN15-DN100
Pressure：
PN16
Material：
CF8, CF8M

The OQ87F-16P clamp-type liquid cooling on-off ball valve is a quick-integration control valve specifically designed for next-generation high-density data center servers, energy storage thermal management systems (ESS), and high-precision liquid cooling CDUs (Coolant Distribution Units). Featuring a clamp (quick-connect) connection structure, it greatly simplifies the installation and modular maintenance processes inside densely wired racks. Its core design focuses on dead-zone-free high flow capacity and bubble-tight shutoff performance, enabling fast and reliable on-off control of coolants (such as deionized water, glycol solutions, fluorinated liquids, etc.) in the liquid cooling loop. Constructed from premium 16P (SS304) stainless steel and coupled with automated actuators, it ensures absolute safety and high-cleanliness operation of liquid cooling pipelines under high-frequency cycling conditions.Product Image:Clamp-Type Liquid Cooling On-Off Ball Valve

View detail>>
YQ81 Liquid Cooling Quick-Install Ball Valve

Model：
YQ81-10P/YQ81-16P/YQ81-25P/YQ81-10R/YQ81-16R/YQ81-25R
Specification：
DN15-DN125
Pressure：
PN10~25
Material：
CF8, CF8M

The YQ81F Liquid Cooling Quick-Install Ball Valve is designed specifically for high-efficiency connection in data centers, energy storage systems, and high-performance computing cooling loops. Featuring an international standard tri-clamp connection, this valve allows for rapid assembly and disassembly within seconds without tools, significantly enhancing maintenance efficiency for liquid cooling modules. Precision-cast from stainless steel and lined with stable fluoroplastic seals, it ensures zero leakage and high purity when handling deionized water, glycols, or perfluoropolyethers.Product Image:YQ81 Liquid Cooling Quick-Install Ball Valve

View detail>>
YQ11 Internal Thread Liquid Cooling Ball Valve

Model：
YQ11-63P/YQ11-63R
Specification：
DN6-DN25
Pressure：
PN63
Material：
CF8,CF8M

The YQ11 Internal Thread Liquid Cooling Ball Valve is a small-bore fluid control component specifically designed for compact liquid cooling circulation systems. Utilizing a two-piece or three-piece body structure connected via female threads, it is widely used in immersion cooling servers, energy storage battery cooling branches, and laboratory temperature control units. The design focuses on flow path smoothness to minimize pressure loss and uses highly stable materials to ensure zero leakage and low operating torque when in long-term contact with various coolants, such as synthetic oils and hydrofluoroethers.Product Image:YQ11 Internal Thread Liquid Cooling Ball Valve

View detail>>
YQ21F External Thread Liquid Cooling Ball Valve

Model：
YQ21-63P/YQ21-63R
Specification：
DN6-DN25
Pressure：
PN63
Material：
CF8, CF8M

The YQ21F External Thread Liquid Cooling Ball Valve is a control component specifically designed for direct piping alignment and modular assembly. Featuring precision-machined male threads on both ends, it allows for direct connection with female-threaded hoses, sensor bases, or manifolds without the need for additional adapters. The flow path is hydrodynamically optimized to provide extremely low resistance for high-power density liquid cooling systems (such as supercomputing centers and ESS). With high-grade corrosion-resistant stainless steel, it ensures long-term, stable, and leak-free operation in various chemical cooling media.Product Image:YQ21 External Thread Liquid Cooling Ball Valve

View detail>>
YQ21 Internal and External Thread Liquid Cooling Ball Valve

Model：
YQ21-63P / YQ21-63R
Specification：
DN6-DN25
Pressure：
PN63
Material：
CF8, CF8M

The YQ21 Internal and External Thread Liquid Cooling Ball Valve is a specialized control component designed to meet diverse connection requirements in liquid cooling circuits. Its unique "Male-to-Female" thread structure allows it to act as both a connector and a terminal control valve, directly linking equipment and piping networks. It is widely used in energy storage container cooling loops, liquid-cooled charging piles, and immersion cooling systems. By reducing the need for extra adapters, it minimizes potential leak points and optimizes integrated liquid cooling designs.Product Image:YQ21 Internal and External Thread Liquid Cooling Ball Valve

View detail>>

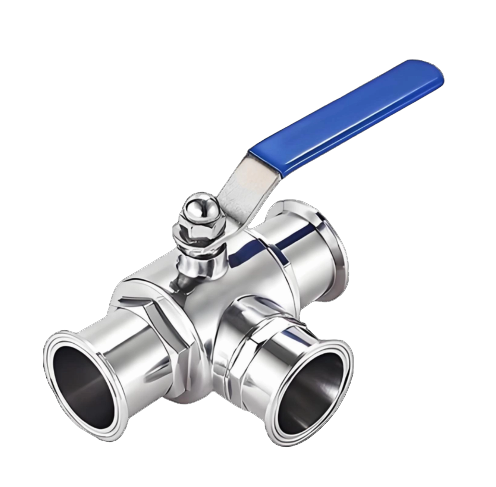

YQ84F Three-Way Liquid Cooling Ball Valve

Model：
YQ84F-10P/YQ84F-16P/YQ84F-25P/YQ84F-10R/YQ84F-16R/YQ84F-25R
Specification：
DN20-DN100
Pressure：
PN10~25
Material：
CF8, CF8M

The YQ84F Three-Way Liquid Cooling Ball Valve is a specialized fluid control component engineered for energy storage systems (ESS), data center thermal management, and high-power electronics cooling. With its three-way L-port structure, it enables precise switching of cooling media between the main loop and bypass or redistribution across multiple cooling modules. The compact clamp connection ensures high maintenance efficiency and fits the strict space constraints of modern liquid cooling cabinets.Product Image:YQ84F Three-Way Liquid Cooling Ball Valve

View detail>>

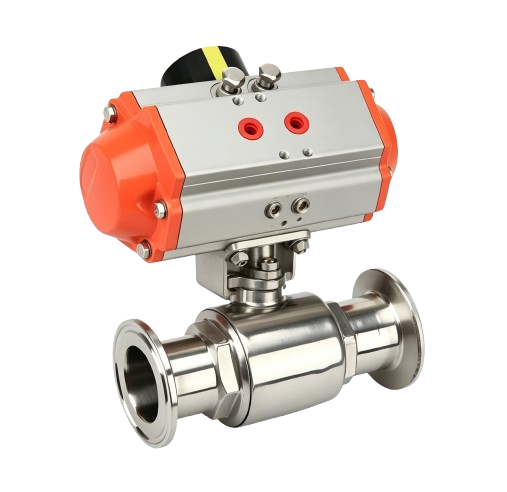

YQ681F Pneumatic Liquid Cooling Tri-Clamp Ball Valve

Model：
YQ681F-10P/YQ681F-10R/YQ681F-16P/YQ681F-16R/YQ681F-25P/YQ681F-25R
Specification：
DN20-DN100
Pressure：
PN10~25
Material：
CF8, CF8M

The YQ681F Pneumatic Liquid Cooling Tri-Clamp Ball Valve is an automated fluid control component integrating a high-performance pneumatic actuator with a quick-release ball valve structure. Designed for hyperscale data center cooling systems, automated Cooling Distribution Units (CDU), and semiconductor thermal control lines, it enables remote rapid shut-off or proportional control. Featuring ISO standard tri-clamp interfaces, precision-ground stainless steel balls, and high-purity fluoroplastic seals, it combines seconds-level maintenance convenience with the reliability required for specialized coolants like HFE and PFPE.Product Image:YQ681F Pneumatic Liquid Cooling Tri-Clamp Ball Valve

View detail>>

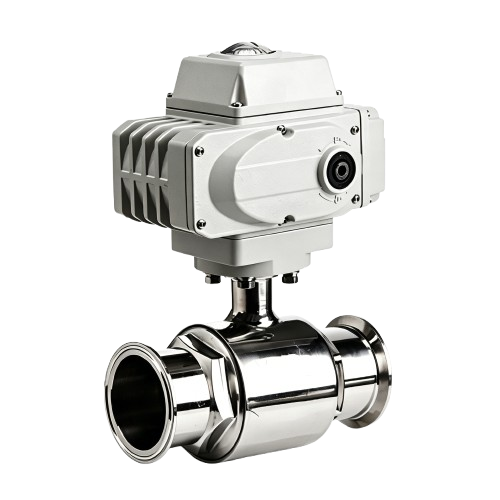

YQ981F Electric Liquid-Cooled Ball Valve

Model：
YQ981F-10P / 16P / 25P; YQ981F-10R / 16R / 25R
Specification：
DN20-DN100
Pressure：
PN10~25
Material：
CF8, CF8M

The YQ981F Electric Liquid-Cooled Ball Valve is a high-performance fluid control unit specifically designed for new energy energy storage systems (ESS), data center liquid cooling units (CDU), and industrial cooling circulation systems. Driven by a low-power electric actuator, the valve body is made of high-quality stainless steel (e.g., CF8/CF8M), enabling precise regulation or shut-off of cooling media such as ethylene glycol solutions or silicone oil. Its compact and lightweight design makes it ideal for narrow piping spaces, serving as a core component for automated liquid cooling management and thermal efficiency optimization.Product Image:YQ981F Electric Liquid-Cooled Ball Valve

View detail>>

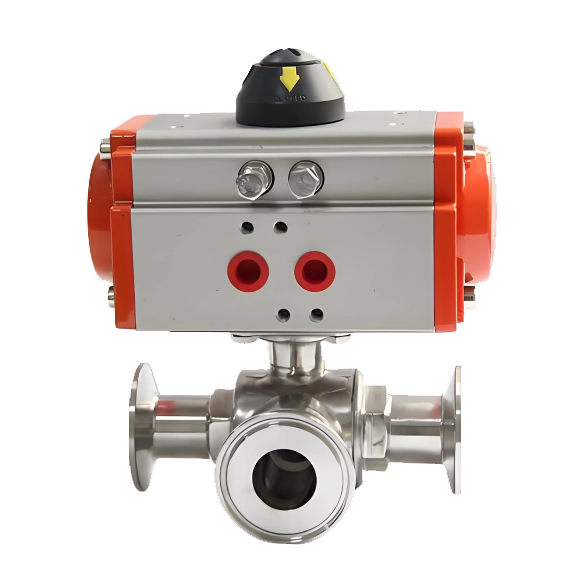

YQ684F Pneumatic Three-Way Liquid Cooling Ball Valve

Model：
YQ684F-10P/YQ684F-10R/YQ684F-16P/YQ684F-16R
Specification：
DN20-DN100
Pressure：
PN10~16
Material：
CF8, CF8M

The YQ684F Pneumatic Three-Way Liquid Cooling Ball Valve is a professional fluid switching component designed for high-power density liquid cooling systems, energy storage cooling units, and data centers. Integrated with a high-performance pneumatic actuator, this three-way valve allows for rapid switching, diverting, or merging of cooling media. It is engineered with optimized flow paths to minimize pressure drop and ensure zero leakage, providing precise automated temperature control for advanced thermal management systems.Product Image:YQ684F Pneumatic Three-Way Liquid Cooling Ball Valve

View detail>>

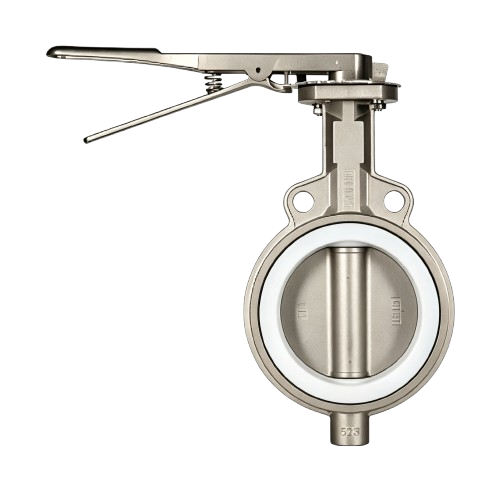

YD71F Wafer Fluorine-Lined Liquid Cooling Butterfly Valve

Model：
YD71F-10P/YD71F-16P/YD71F-10R/YD71F-16R
Specification：
DN50-DN1200
Pressure：
PN10~16
Material：
CF8+F46, CF8M+F46

The YD71F Wafer Fluorine-Lined Liquid Cooling Butterfly Valve is a fluid control component designed specifically for highly corrosive or ultra-pure cooling media (such as HFE, PFPE, and special chemical coolants). Utilizing a comprehensive fluorine-lining process, the internal cavity and the disc are fully encapsulated in high-performance fluoroplastics, completely isolating metal parts from the medium. The wafer design significantly compresses the installation footprint, making it ideal for semiconductor cooling, pharmaceutical thermal management, and specialty energy storage systems requiring extreme purity and corrosion resistance.Product Image:YD71F Wafer Fluorine-Lined Liquid Cooling Butterfly Valve

View detail>>

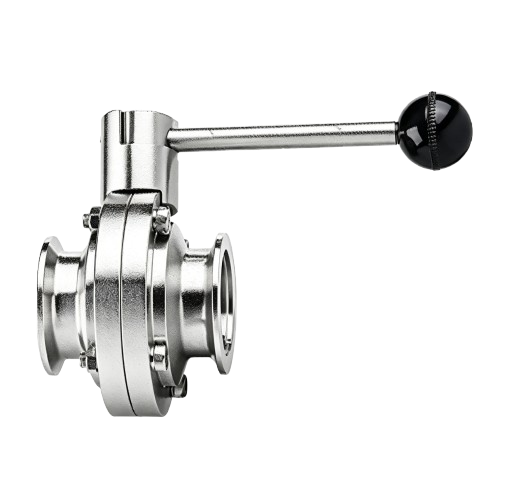

YD81 Tri-Clamp Liquid Cooling Butterfly Valve

Model：
YD81-10P/YD81-16P/YD81-25P/YD81-10R/YD81-16R/YD81-25R
Specification：
DN15-DN200
Pressure：
PN10~25
Material：
CF8 (SS304), CF8M (SS316)

The YD81 Tri-Clamp Quick-Install Butterfly Valve is a precision-engineered valve designed for high-cleanliness and long-cycle requirements in modern liquid cooling systems. Moving away from traditional fluoroplastic linings, this valve utilizes precision-ground metal-to-metal seating or integrated synthetic seals. Its primary advantage is eliminating the risk of "cold flow" deformation often associated with plastics under extreme temperatures. Using international standard tri-clamp connections, the YD81 provides a simplified, high-pressure, and low-maintenance solution for CDU modules and semiconductor cooling loops.Product Image:YD81 Tri-Clamp Liquid Cooling Butterfly Valve

View detail>>

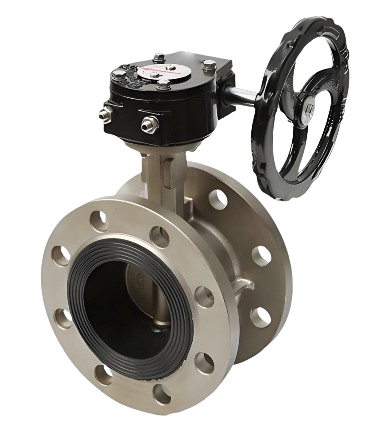

YD41X Flanged Rubber-Lined Liquid Cooling Butterfly Valve

Model：
YD41X-10P/YD41X-10R/YD41X-16P/YD41X-16R
Specification：
DN50-DN2400
Pressure：
PN10~16
Material：
CF8,CF8M

The YD41X Flanged Rubber-Lined Liquid Cooling Butterfly Valve is a high-performance control valve specifically engineered for energy storage systems (ESS), data center liquid cooling, and industrial circulating water circuits. Featuring a concentric rubber-lined design, the valve body interior is fully lined to isolate the medium from the metal components, providing exceptional corrosion resistance and sealing reliability. It is optimized for liquid cooling media (e.g., ethylene glycol solutions, deionized water), ensuring low flow resistance and zero-leakage shut-off.Product Image:YD41X Flanged Rubber-Lined Liquid Cooling Butterfly Valve

View detail>>

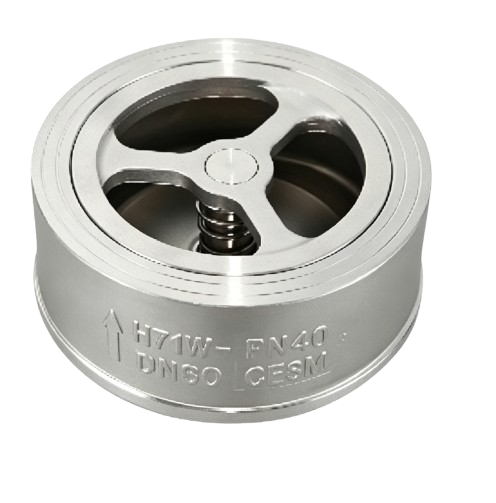

YH71 Wafer Lift Check Valve

Model：
YH71-16P/YH71-25P/YH71-40P/YH71-16R/YH71-25R/YH71-40R
Specification：
DN50-DN300
Pressure：
PN16~40
Material：
CF8, CF8M

The YH71 Wafer Lift Check Valve is an automatic valve that relies on the flow of the medium itself to automatically open and close the disc to prevent backflow. Featuring a wafer connection, the valve has an extremely short face-to-face dimension and a compact volume, making it ideal for piping systems with limited installation space. The lift disc design, integrated with a precision spring, ensures rapid closure in both horizontal and vertical pipelines, effectively eliminating water hammer and protecting pumps, compressors, and downstream equipment.Product Image:YH71 Wafer Lift Check Valve

View detail>>

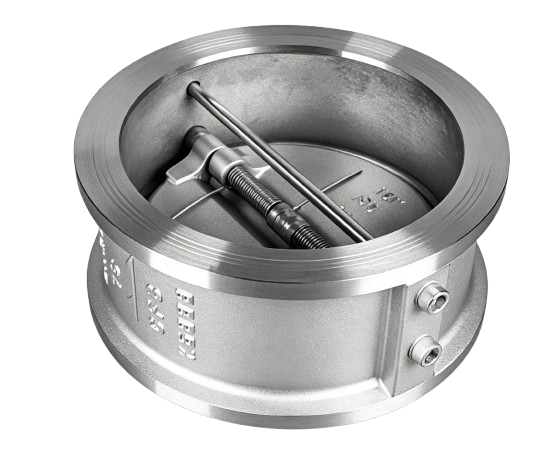

YH76 Wafer Butterfly Check Valve

Model：
YH76-10P/YH76-16P/YH76-25P/YH76-10R/YH76-16R/YH76-25R
Specification：
DN50-DN1200
Pressure：
PN10~25
Material：
CF8, CF8M

The YH76 Wafer Butterfly Check Valve, also known as a Dual Plate Check Valve, is a high-performance, lightweight automatic valve. It consists of a body, two semi-circular plates, a hinge pin, and springs. Due to the short stroke of the plates during closing and the assistance of the springs, this valve can close rapidly, significantly reducing water hammer and noise. Its wafer structure makes it compact and lightweight, providing an ideal solution for protecting pumps and equipment from backflow in water treatment, municipal supply, and petrochemical pipelines.Product Image:YH76 Wafer Butterfly Check Valve

View detail>>

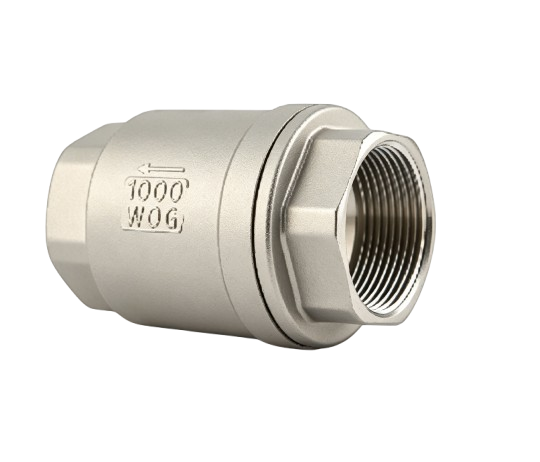

H12 Vertical Liquid Cooling Check Valve

Model：
H12-10P/H12-10R/H12-16P/H12-16R/H12-25P/H12-25R
Specification：
DN6-DN50
Pressure：
PN10~25
Material：
CF8, CF8M

The H12 Vertical Liquid Cooling Check Valve is an automatic valve designed specifically for data center liquid cooling cabinets, cooling tower circulation systems, and compact liquid cooling pipelines. Utilizing a vertical lift structure, the valve opens automatically under medium pressure and closes via the disc’s weight and backflow. For liquid cooling applications, the body is precision-cast from high-grade stainless steel with a hydrodynamically optimized disc, ensuring sensitive operation even in low-pressure differential environments to prevent backflow damage to pumps and precision electronics.Product Image:H12 Vertical Liquid Cooling Check Valve

View detail>>

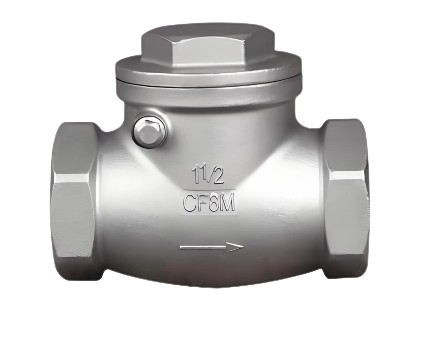

Internal Swing Check Valve for Liquid Cooling H14

Model：
H14-16P/H14-16R
Specification：
DN6-DN80
Pressure：
PN16
Material：
CF8,CF8M

The H14 Internal Swing Check Valve is specifically engineered for industrial liquid cooling systems, energy storage cooling units, and data center thermal management. This valve features a fully integrated internal swing mechanism, where the disc and rocker arm are contained entirely within the body. This design minimizes installation footprint and eliminates risks associated with external mechanical interference. As an automatic valve, it relies on media flow to open and utilizes backflow and gravity to close, effectively preventing coolant reversal, protecting pumps and heat exchangers from water hammer, and ensuring stable unidirectional flow.Product Image:Internal Swing Check Valve for Liquid Cooling H14

View detail>>

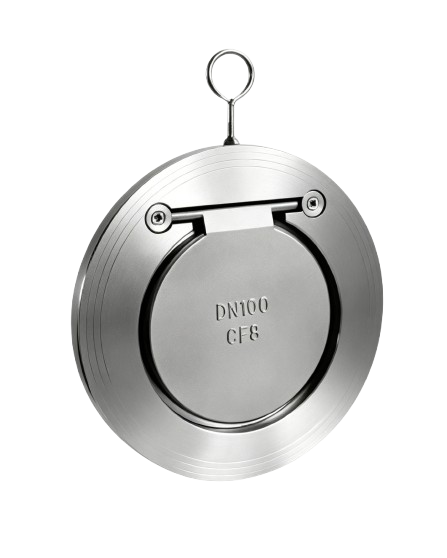

H71 Wafer Single Disc Check Valve

Model：
H71-16P/H71-25P/H71-40P/H71-16R/H71-25R/H71-40R
Specification：
DN50-DN300
Pressure：
PN16~40
Material：
CF8, CF8M

The H71 Wafer Single Disc Check Valve is an ultra-thin check valve characterized by an extremely short face-to-face dimension, typically 1/4 to 1/8 that of a traditional check valve. Composed of a body, disc, and spring, it uses a wafer connection and operates automatically based on pipeline pressure. The disc opens with flow and closes via spring tension and backflow when pressure drops. Due to its lightweight and space-saving nature, it is widely used in water supply, HVAC, chemical, and water treatment systems at pump discharge points.Product Image:H71 Wafer Single Disc Check Valve

View detail>>
Y-Type Check Valve

Model：
Y
Specification：
DN6-DN80
Pressure：
PN50
Material：
CF8, CF8M

A Y-Strainer is an essential filtration device for piping systems conveying various media. It is typically installed at the inlet of pressure reducing valves, relief valves, or check valves to remove mechanical impurities. When fluid enters the strainer, solid particles are trapped in the screen while clean fluid passes through the outlet. Designed for compactness, low resistance, and easy maintenance, it protects downstream equipment from damage caused by debris.Product Image:Y-Type Check Valve

View detail>>

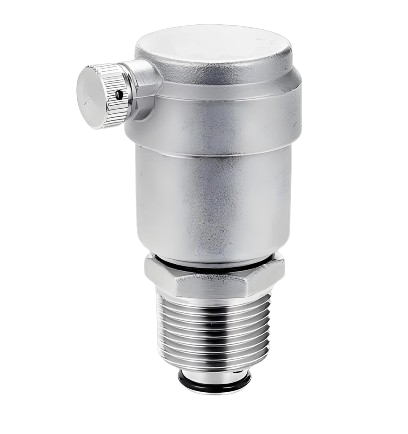

YP21X Micro Air Release Valve for Liquid Cooling

Model：
YP21X-10P/YP21X-16P/YP21X-25P/YP21X-10R/YP21X-16R/YP21X-25R
Specification：
DN10-DN25
Pressure：
PN10~25
Material：
CF8 (SS304), CF8M (SS316)

The YP21X Micro Air Release Valve is a compact automatic venting device designed specifically for data center liquid cooling modules, server cold plates, and Cooling Distribution Units (CDU). During the circulation of the liquid cooling system, small amounts of accumulated air can create air locks, reducing heat exchange efficiency and causing pump cavitation. Featuring a lever-float mechanism, this valve senses fluid level changes in real-time, automatically discharging micro-bubbles under system operating pressure and closing tightly when liquid reaches the port, ensuring the cooling loop remains fully filled with liquid.Product Image:YP21X Micro Air Release Valve for Liquid Cooling

View detail>>

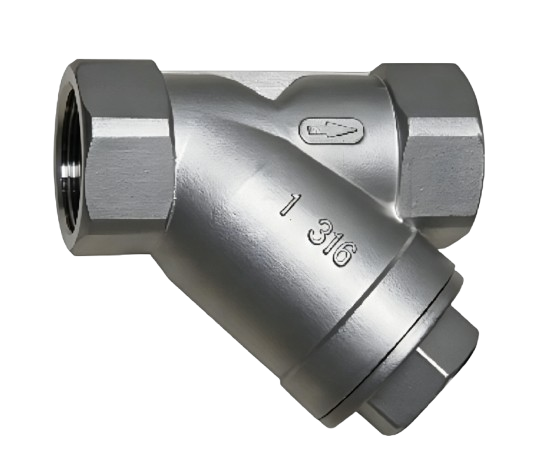

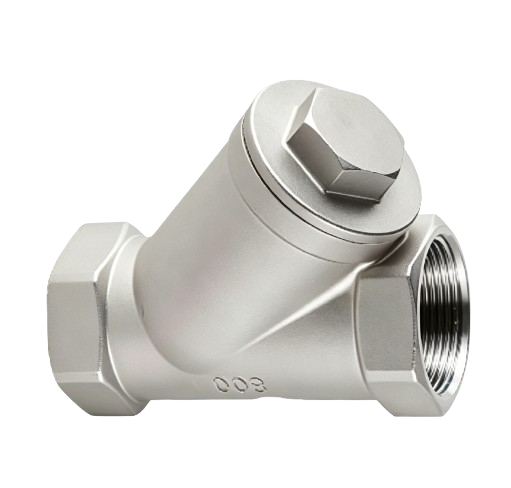

Y-Strainer

Model：
GL11W-50P/GL11W-50R
Specification：
DN6-DN80
Pressure：
PN50
Material：
CF8,CF8M

Y-Strainer is a small-bore precision filtration device manufactured from stainless steel with internal thread connections. It is primarily designed for low-pressure fluid systems such as water, oil, and gas, effectively intercepting fine particles and impurities to ensure the safe operation of downstream faucets, valves, instruments, and small equipment. With its excellent corrosion resistance, reliable sealing, and ease of installation, this type of strainer is a critical accessory commonly found in domestic water supply, small HVAC systems, chillers, and various instrumentation pipelines.Y-Strainer Product Diagram

View detail>>

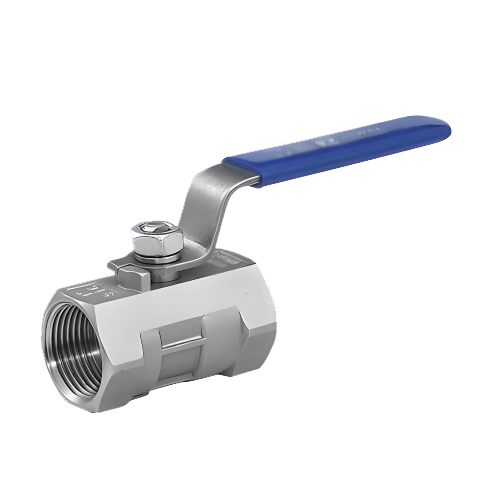

YQ11F 1-PC Liquid Cooling Ball Valve

Model：
YQ11F-16P/YQ11F-16R/YQ11F-25P/YQ11F-25R
Specification：
DN6-DN100
Pressure：
PN16~25
Material：
CF8,CF8M

The YQ11F 1-PC Liquid Cooling Ball Valve is a compact control valve specifically designed for data center server liquid cooling systems, power battery heat dissipation, and various precision cooling circulation pipelines. Featuring a one-piece investment casting structure, this valve minimizes potential leak points at body connections, ensuring the safety of liquid cooling systems in high-precision operating environments. Its core design focuses on low flow resistance and lightweight construction, enabling precise on-off control of cooling media (such as deionized water or ethylene glycol solutions). Due to its compact structure and reliable sealing, it is an essential fluid control component in modern high-computing equipment and new energy storage system cooling solutions.Product Image:YQ11F 1-PC Liquid Cooling Ball Valve

View detail>>

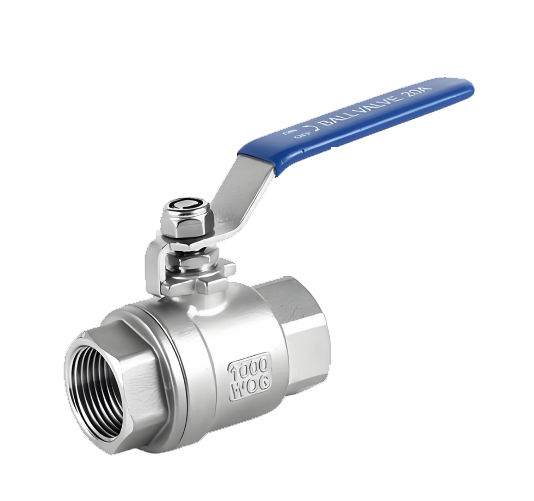

YQ11F 2-PC Liquid Cooling Ball Valve

Model：
YQ11F-16P/YQ11F-16R/YQ11F-25P/YQ11F-25R
Specification：
DN6-DN100
Pressure：
PN16~25
Material：
CF8,CF8M

The YQ11F two-piece liquid cooling ball valve is a precision fluid control component specifically designed for high-power-density thermal management systems, supercomputing centers, and new energy storage facilities. Featuring a two-piece split body design, it combines ease of maintenance with high sealing reliability, effectively managing coolant media (such as fluorinated liquids, deionized water, etc.) in liquid cooling loops. The design balances compact installation space with superior flow performance, ensuring efficient fluid transmission under extremely low pressure drop through optimized channels. As a core component of thermal management systems, it provides a solid guarantee for the safe operation of server clusters and core power electronic equipment.Product Image:YQ11F 2-PC Liquid Cooling Ball Valve

View detail>>
