Overview
The J11W American Standard Internal Thread Globe Valve is a valve that conforms to U.S. standards (ANSI/ASME) and features an internal thread connection. It operates by driving the valve disc through the valve stem to move vertically along the centerline of the valve seat, enabling reliable opening/closing and flow regulation in pipelines. Its core design lies in the use of high-strength materials for the valve body, strictly adhering to American standards for pressure ratings and structural specifications, ensuring sealing performance and durability under demanding conditions such as high pressure and high temperature. The valve employs an internal thread connection, allowing it to be directly screwed onto external threads of American standard pipes, achieving compact, convenient installation and sealing. The valve structure is typically designed with a low-inlet, high-outlet flow path to optimize fluid control and reduce operating torque. The valve can be operated manually, converting rotational force into linear motion of the disc via the valve stem for smooth and reliable opening/closing operations. It can also be equipped with electric or pneumatic actuators to meet automation control requirements. This valve is specifically designed for water, steam, oil, and non-corrosive media in American standard pipeline systems. It is particularly suitable for applications in industries such as petroleum, chemical, power, and shipping, where strict requirements for pressure ratings, sealing performance, and installation space exist.

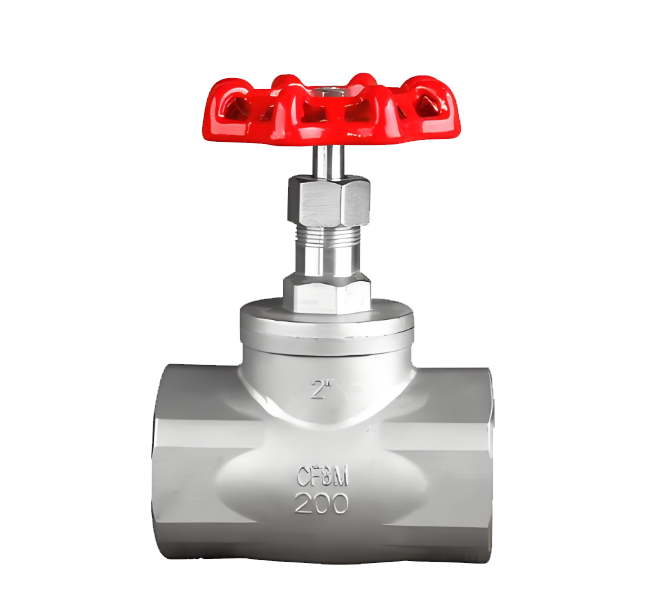

J11W American Standard Internal Thread Globe Valve Product Diagram

Features

1.Compliance with American Standards & High-Pressure Design:The valve strictly adheres to U.S. standards (ANSI/ASME) for pressure ratings, materials, and structural requirements. The valve body is manufactured from high-strength materials, offering excellent pressure-bearing capacity and structural stability, making it suitable for demanding conditions such as high pressure and high temperature.

2.Compact Internal Thread Connection & Easy Installation:Featuring American standard internal thread connections (NPT), the valve is compact, lightweight, and requires no additional flanges or complex accessories. It can be directly threaded into the pipeline system, enabling quick and straightforward installation. This design is particularly suitable for piping layouts with limited space.

3.Reliable Sealing & Wear/Corrosion Resistance:The sealing pair (disc and seat) is made of hard alloy or corrosion-resistant materials, precision-ground and paired. Combined with an elastic sealing structure, it maintains long-term tight sealing even under frequent operation and high-pressure differential conditions, effectively preventing media leakage.

4.Low Flow Resistance & Precise Flow Control:The valve employs a low-inlet, high-outlet flow path design, optimizing its internal structure to minimize fluid resistance. It supports precise opening/closing and flow regulation, balancing system energy efficiency and process control requirements.

5.Easy Operation & Compatibility with Multiple Actuation Methods:The handwheel is ergonomically designed for low operating torque. The valve stem operates smoothly without sticking. The valve is also compatible with electric or pneumatic actuators, meeting the dual requirements of manual operation and automated control.

6.Wide Applicability & High Cost-Effectiveness:Suitable for water, steam, oil, and non-corrosive media, the valve is widely used in pipeline systems across industries such as petroleum, chemical, power, and shipping. The valve body material options include carbon steel and stainless steel, ensuring a balance between performance and economy, low maintenance costs, and a long service life.

J11W American Standard Internal Thread Globe Valve Structure Diagram

Materials List

Performance Specifications Table

J11W American Standard Internal Thread Globe Valve Overall Dimension Drawing

J11W American Standard Internal Thread Globe Valve Overall Dimensions Table
