A44Y Manual Reset Lever Spring Full-Lift Closed Discharge Safety Valve

Model：A44Y-10C/A44Y-16C/A44Y-25C/A44Y-40C/A44Y-64C/A44Y-100C/A44Y-10C/A44Y-16P/A44Y-25P/A44Y-40P/A44Y-64P/A44Y-100P/A44Y-10C/A44Y-16R/A44Y-25R/A44Y-40R/A44Y-64R/A44Y-100R
Specification：DN25-DN400
Temperature：≦300℃
Medium：Water, oils, steam, gases, and corrosive media.

Pressure：PN10-PN100
Connection method：flange
Driving method：spring type
Material：Cast steel, stainless steel, bidirectional stainless steel

Consult now

Add QR code to serve you!

A44Y Manual Reset Lever Spring Full-Lift Closed Discharge Safety ValveOverview

A44Y with wrench spring fully open closed safety valve is a high-performance safety valve that integrates manual testing, fully open discharge, hard alloy sealing, and closed structure. The valve is equipped with a manual testing wrench, which can be used for regular functional testing; Adopting a fully open design to achieve high flow discharge; The "Y" type hard alloy seal ensures tightness under high temperature and high pressure; Its enclosed structure can guide the discharged medium to a safe area (such as a discharge pipeline) through the outlet flange, avoiding the risk of on-site spraying, especially suitable for situations where toxic, harmful, flammable or high-temperature media are discharged. Mainly used in situations where it is necessary to safely recover or direct the released medium to the treatment system, such as reactors and storage tanks in petrochemical plants for the treatment of toxic and harmful gases (such as H2S and chlorine); Hydrogenation and cracking units in refineries; Process systems in the coal chemical and pharmaceutical industries. It is a key pressure relief equipment that ensures the safe and environmentally friendly operation of high-risk process flows.

A44Y Manual Reset Lever Spring Full-Lift Closed Discharge Safety Valve Product Diagram

A44Y Manual Reset Lever Spring Full-Lift Closed Discharge Safety ValveCharacteristic

1. Manual test wrench: A wrench is mounted on the top of the valve, allowing for regular manual lifting tests. This forces the valve disc to open, verifying its flexibility of action, preventing it from sticking or seizing due to long-term inactivity, and ensuring reliability in emergency situations.

2. Cemented carbide seal (Type "Y"): The sealing surface between the valve disc and the valve seat is deposited with hard alloys such as Stellite, which boasts high hardness, wear resistance, high temperature resistance, and corrosion resistance, ensuring excellent sealing performance.

3. Fully open large-displacement design: The valve disc has a large opening height, a large discharge area, and strong discharge capacity (displacement), which can quickly reduce system pressure and is suitable for media such as steam and gas.

4. Closed discharge structure: The valve cover and valve body are designed to be completely enclosed, ensuring that the discharged medium is fully guided to the designated discharge pipeline through the outlet flange. This prevents the medium from being directly ejected into the atmosphere, safeguarding personnel and equipment safety, and meeting environmental protection requirements.

5. High adaptability to high pressure and high temperature: The overall structure is made of heat-resistant alloy steel and other materials, featuring a sturdy construction, making it suitable for high pressure (PN16-PN100), high temperature (≤450℃), and harsh working conditions.

A44Y Manual Reset Lever Spring Full-Lift Closed Discharge Safety Valvestructure principle

A44Y Manual Reset Lever Spring Full-Lift Closed Discharge Safety Valve Structural Diagram

Part Name Material

NO.	零件名称 Name of part	A48Y-C A44Y-C 材料 Materials	A44Y-P 材料 Materials	A44Y-R 材料 Materials
1	阀体 Body	WCB	ZG1Cr18Ni9Ti	CF8M
2	阀座 Nozzle	2Cr13	1Cr18Ni9Ti	316
3	调节圈 Adjusting ring	ZG2Cr13	ZG1Cr18Ni9Ti	0Cr18Ni12Mo2Ti
4	反冲盘 Disc holder	ZG2Cr13	ZG1Cr18Ni9Ti	316
5	阀瓣 Disc	2Cr13	1Cr18Ni9Ti	316
6	导向套 Guide sleeve	2Cr13	1Cr18Ni9Ti	0Cr18Ni12Mo2Ti
7	阀盖 Bonnet	ZG230-450	ZG230-450	ZG230-450
8	弹簧 Spring	50CrVA	50CrVA包覆氟塑料 Coated Teflon	50CrVA包覆氟塑料 Coated Teflon
9	阀杆 Stem	2Cr13	1Cr18Ni9Ti	1Cr18Ni12Mo2Ti
10	扳手 Lever	ZG200-400	ZG200-400	ZG200-400
11	调整螺杆 Adjusting bolt	45	2Cr13	2Cr13
12	保护罩 Cap	ZG200-400	ZG200-400	316
	密封面材料Sealing surface of material	堆焊Co基硬质合金 Depositing stellite

A44Y Manual Reset Lever Spring Full-Lift Closed Discharge Safety Valvetechnology parameter

Performance Specifications Table

型号 model	铸钢型 Cast steel type
口径范围 Caliper range	DN25-DN400
适用温度 application temperature	≤300℃
适用介质 application media	水、蒸汽、油品 water、Steam and oil

A44Y Manual Reset Lever Spring Full-Lift Closed Discharge Safety Valvestandard size

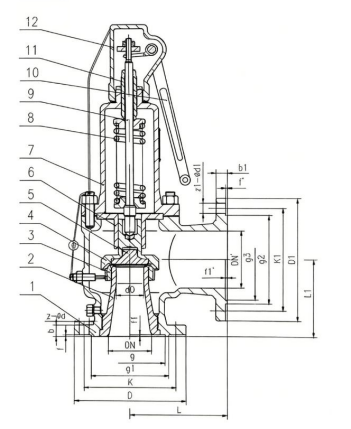

A44Y Manual Reset Lever Spring Full-Lift Closed Discharge Safety Valve Outline Drawing

Dimension Chart

公称直径(DN) nominal diameter	do	D	K	g	g1	b	f	f1	Z=φ-d	DN'	D1	k1	g3	g4	b1	f1'	f1	Z1=φ-d1	L	L1=	ΔH
20	15	105	75		55	16	2		4-14	25	115	85		65	16	2		4-14	110	95	411
25	16	115	85		65	16	2		4-14	32	140	100		78	18	2		4-18	110	95	411
32	20	140	100		78	18	2		4-18	40	150	110		85	18	3		4-18	115	100	411
40	25	150	110		85	18	3		4-18	50	165	125		100	20	3		4-18	120	110	472
50	32	165	125		100	20	3		4-18	65	185	145		120	20	3		4-18	135	120	532
65	40	185	145		120	20	3		4-18	80	200	160		135	20	3		8-18	160	140	556
80	50	200	160		135	20	3		8-18	100	220	180		155	22	3		8-18	170	135	551
100	65	220	180		155	20	3		8-18	125	250	210		185	22	3		8-18	195	175	657
125	80	250	210		185	22	3		8-18	150	285	240		210	24	3		8-23	210	190	857
150	100	285	240		210	24	3		8-23	175	310	270		240	26	3		8-23	255	230	915
200	125	340	295		265	26	3		12-23	250	405	355		320	30	3		12-26	300	260	1073
250	150	405	355		320	30	3		12-26	300	460	410		375	30	4		12-26	350	320	1307
300	220	460	410		375	30	4		12-26	400	580	525		485	36	4		16-30	370	350	1233
350	250	520	470		435	34	4		16-26	500	715	650		608	44	4		20-34	500	450	1711
400	280	580	525		485	36	4		16-30	500	715	650		608	44	4		20-34	500	450	1780
20	15	105	75		55	16	2		4-14	25	115	85		65	16	2		4-14	110	95	411
25	16	115	85		65	16	2		4-14	32	140	100		78	18	2		4-18	110	95	411
32	20	140	100		78	18	2		4-18	40	150	110		85	18	3		4-18	115	100	411
40	25	150	110		85	18	3		4-18	50	165	125		100	20	3		4-18	120	110	472
50	32	165	125		100	20	3		4-18	65	185	145		120	20	3		4-18	135	120	532
65	40	185	145		120	22	3		8-18	80	200	160		135	22	3		8-18	160	140	556
80	50	200	160		135	22	3		8-18	100	220	180		155	22	3		8-18	170	135	551
100	65	230	190		160	24	3		8-23	125	250	210		165	22	3		8-18	195	175	657
125	80	270	220		188	28	3		8-26	150	285	240		210	24	3		8-23	210	190	857
150	100	300	250		218	30	3		8-26	175	310	270		240	26	3		8-23	255	230	915
200	125	360	310		278	34	3		12-26	250	405	355		320	30	3		12-26	300	260	1073
250	150	425	370		332	36	3		12-30	300	460	410		375	30	4		12-26	350	320	1307
300	220	485	430		390	40	4		16-30	400	580	525		485	36	4		16-30	370	350	1233
350	250	555	490		448	44	4		16-34	500	715	650		608	44	4		20-34	500	450	1711
400	280	620	550		505	48	4		16-38	500	715	650		608	44	4		20-34	500	450	1780
20	15	105	75	51	55	16	2	4	4-14	25	115	85		65	16	2		4-14	110	95	411
25	16	115	85	58	65	16	2	4	4-14	32	140	100		78	18	2		4-18	110	95	411
32	20	140	100	66	78	18	2	4	4-18	40	150	110		85	18	3		4-18	115	100	411
40	25	150	110	76	85	18	3	4	4-18	50	165	125		100	20	3		4-18	120	110	472
50	32	165	125	88	100	20	3	4	4-18	65	185	145		120	20	3		4-18	135	120	532
65	40	185	145	110	120	22	3	4	4-18	80	200	160		135	20	3		8-18	160	140	556
80	50	200	160	121	135	22	3	4	4-18	100	220	180		155	22	3		8-18	170	135	551
100	65	235	190	150	160	24	3	4-5	8-23	125	250	210		185	22	3		8-18	195	175	697
125	80	270	220	176	188	28	3	4-5	8-26	150	285	240		210	24	3		8-23	210	190	857
150	100	300	250	204	218	30	3	4-5	8-26	175	310	270		240	26	3		8-23	255	230	915
200	125	375	320	260	282	38	3	4-5	8-32	125	250	405		320	30	3		12-26	300	260	1073
250	150	450	385	313	345	42	3	4-5	12-34	300	460	410		375	30	4		12-26	350	320	1307
300	220	515	450	364	408	46	4	4-5	16-34	400	580	525		485	36	4		16-30	370	350	1233
350	250	580	510	422	465	52	4	5	16-36	500	715	650		608	44	4		20-34	500	450	1711
400	280	660	585	474	535	58	4	5	16-41	500	715	650		608	44	4		20-34	500	450	1711
20	10	125	90	51	68	22	2	4	4-18	25	115	85	58	65	16	2	4	4-14	110	100	297
25	16	140	100	58	78	22	2	4	4-18	32	140	100	66	78	18	2	4	4-18	110	100	310
32	20	155	110	66	82	24	2	4	4-23	40	150	110	76	85	18	3	4	4-18	130	110	322
40	25	170	125	76	95	24	3	4	4-23	50	165	125	88	100	20	3	4	4-18	130	120	352
50	32	180	135	88	105	26	3	4	4-23	65	185	145	110	120	22	3	4	8-18	155	130	425
65	40	205	160	110	130	28	3	4	4-23	80	200	160	121	135	22	3	4	8-18	175	160	570
80	50	215	170	121	140	30	3	4	4-23	100	235	190	150	160	24	3	4-5	8-23	175	160	570
100	65	250	200	150	168	32	3	4-5	8-26	125	270	220	176	188	28	3	4-5	8-25	195	195	690
150	100	345	280	204	240	38	3	4-5	8-34	200	375	320	260	282	38	3	4-5	12-30	285	260	935
20	10	125	90	51	68	22	2	4	4-18	25	115	85	58	65	16	2	4	4-14	96	85	297
25	16	140	100	58	78	24	2	4	4-18	32	140	100	66	78	18	2	4	4-18	110	100	310
32	20	155	110	66	82	24	2	4	4-23	40	150	110	76	85	18	3	4	4-18	130	110	322
40	25	170	125	76	95	26	3	4	4-23	50	165	125	88	100	20	3	4	4-18	130	120	352
50	32	195	145	88	112	28	3	4	4-26	65	185	145	110	120	22	3	4	8-18	155	130	425
65	32	220	170	110	138	32	3	4	8-26	80	200	160	121	135	22	3	4	8-18	175	160	570
80	40	230	180	121	148	34	3	4	8-26	100	235	190	150	160	24	3	4-5	8-23	175	160	560
100	50	265	210	150	172	38	3	4-5	8-30	125	270	220	176	188	28	3	4-5	8-25	195	195	690
150	80	395	290	204	250	46	3	4-5	12-34	200	375	320	260	282	38	3	4-5	12-30	285	260	935
