The solenoid directional control valve is an automated foundational component that utilizes the suction generated by an electromagnet to push a spool for relative motion within the valve body, thereby changing the flow direction of fluid media and switching circuits in hydraulic or pneumatic systems. As one of the most widely used control elements in industrial equipment, it enables precise control of the startup, shutdown, and movement direction of actuators by receiving electrical signal commands. The structure typically comprises a body, electromagnetic coils, return springs, and a sliding spool. Known for its sensitive action, reliability, high integration, and ease of remote control, the solenoid directional valve is extensively used in numerical control machines, automated production lines, construction machinery, metallurgy, and plastic machinery.

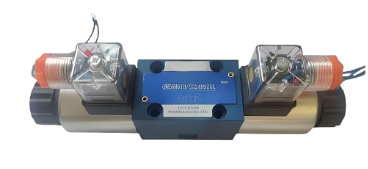

Product Image of Solenoid Directional Valve

1.Rapid response and high frequency:Utilizes electromagnetic induction for direct or pilot-driven spool displacement. The response time is extremely short, capable of high-frequency reciprocating switching to ensure high system cycle efficiency.
2.Diverse control logic:Offers various functions such as 2-way 3-port, 2-way 5-port, and 3-way 5-port. Different spool center-position functions allow for system unloading, locking, and complex flow distribution logics.
3.Compact and integrable design:Features modular and standardized design with a small footprint and low weight. Supports manifold or subplate mounting, facilitating integrated arrangements of multiple valve banks in limited spaces.
4.Low power and long service life:Optimized magnetic circuit design ensures low starting power and holding consumption. spools and body cavities are precision-machined and hardened for superior wear resistance and long service life.
5.Manual emergency override:Most models come standard with manual override buttons or devices. During commissioning, power loss, or circuit failure, operators can manually intervene, enhancing system controllability.
6.Environmental resistance and reliability:Solenoid heads utilize an encapsulated process with protection ratings of IP65 or above, providing excellent dust, water, and vibration resistance for stable operation in harsh environments.
7.Wide voltage compatibility:Coils are available in various common voltages (AC220V, AC110V, DC24V, DC12V). Coils are easily replaceable to meet global electronic control standards across different countries and industries.
8.Excellent sealing stability:Utilizes precision-machined clearance seals or resilient soft seals. Internal leakage is minimal within rated pressures, ensuring system pressure build-up and maintenance while reducing energy loss.

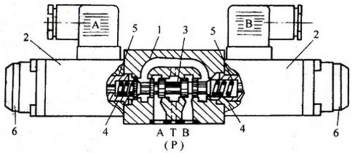

Structural Drawing of Solenoid Directional Valve
