The HX5/HXF5 single breather valve is a one-way pressure-relief breather valve installed on the top of fixed roof tanks, allowing tank gas to vent outward only when overpressure occurs, while remaining tightly closed when the tank pressure is below the set value. This valve features standard flange connections for piping to a recovery system or direct atmospheric discharge, and an optional built-in flame arrestor is available. Its core purpose is to automatically release excess gas during tank filling or temperature rise to prevent overpressure deformation, while reducing media evaporation loss. It is suitable for tanks that are insensitive to vacuum or already equipped with independent gas intake devices (such as nitrogen blanketing systems).

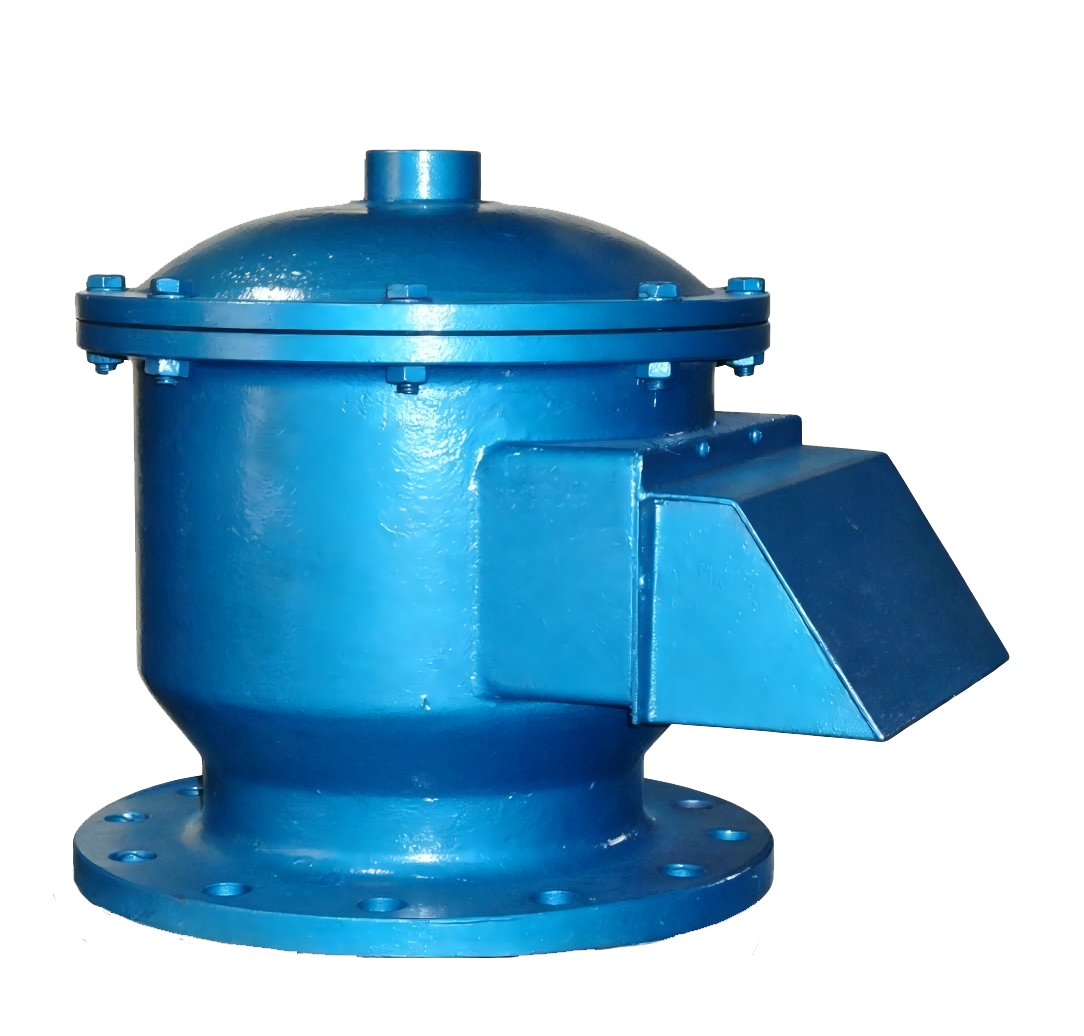

HX5 and HXF5 single exhaust valves product diagram

1. One-way relief function: Only the pressure disc operates, automatically opening during overpressure without vacuum intake; suitable for tanks with separate gas supply systems.

2. Set-pressure operation with reliable sealing: Flat or tapered hard seal provides stable opening pressure and zero leakage when closed.

3. Optional built-in flame arrestor: Can be equipped with stainless steel corrugated plate flame arrestor core to prevent external flame ingress, meeting fire protection codes.

4. Large ventilation capacity with low pressure drop: Optimized flow path ensures low breathing resistance, meeting venting demands during rapid tank filling.

5. All-weather protection structure: Rain and dust cover with internal drainage prevents water accumulation, suitable for harsh outdoor environments.

6. Corrosion-resistant materials: Body available in aluminum alloy, cast steel, or stainless steel; disc and internal parts in stainless steel for various corrosive media.

7. Easy maintenance: Removable disc assembly; flame arrestor core (if equipped) can be extracted for cleaning, facilitating periodic inspection and maintenance.

Structural diagram of HX5 and HXF5 single exhaust valves

Drawing of Parts

Ventilation meter

Operating pressure

                 HX5 type single call valve DN50-250                     HXF5 type flame retardant single call valve DN50-500

Outline dimension table
