The XYXA breather manhole is an integrated device combining a manhole cover and a breather valve installed on the top of fixed roof tanks, integrating tank access, automatic pressure regulation, and flame arrestor functions. Under normal conditions, when the tank pressure exceeds the set value, the breather disc automatically opens to release excess gas; when vacuum occurs, it admits air to maintain pressure balance. Meanwhile, the manhole cover can be opened when needed to provide entry for operators to inspect or clean the tank. This device is primarily used for safe venting and personnel access in petroleum, chemical, and other industrial storage tanks. Its core purpose is to replace traditional separate breather valves and manholes, providing automatic tank pressure regulation to prevent overpressure/vacuum damage while offering safe and convenient access for tank entry operations, with built-in flame arrestor to prevent external flame ingress.

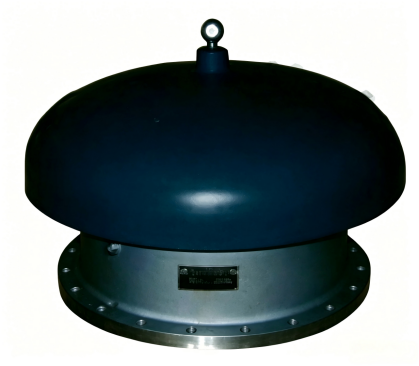

XYXA breathing manhole product diagram

1. Integrated design: Combines breather valve and manhole cover into one unit, reducing roof openings and potential leakage points.

2. Set-pressure automatic breathing: Built-in pressure and vacuum discs automatically relieve overpressure and admit air under vacuum; pressure settings adjustable as required.

3. Built-in flame arrestor: Stainless steel corrugated plate flame arrestor core effectively blocks flame propagation, meeting tank fire and explosion protection codes.

4. Large ventilation capacity with low pressure drop: Optimized flow path provides low breathing resistance, maintaining stable tank pressure during rapid filling or discharging.

5. All-weather protection structure: Sealed top cover with rain and dust protection, internal drainage prevents water accumulation, suitable for harsh outdoor environments.

6. Safe and convenient manhole access: Manhole cover opens easily for personnel entry during tank inspection and cleaning, eliminating the need for a separate manhole.

7. Corrosion-resistant materials: Body and manhole ring available in aluminum alloy, carbon steel, or stainless steel; internal components in stainless steel for various corrosive media.

8. Easy maintenance: Removable flame arrestor core for cleaning; breather disc assembly disassembly convenient; manhole cover seal replaceable, facilitating periodic inspection and maintenance.

Structural diagram of XYXA breathing manhole

Drawing of Parts

Performance Specification Table

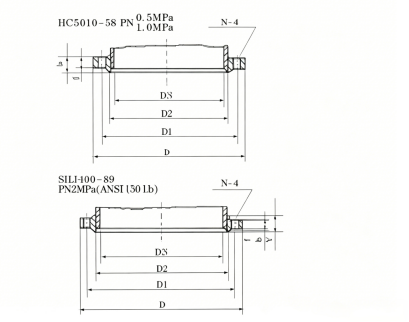

Outline drawing of XYXA breathing manhole

Outline dimension table

1.标准号 Standard No.：SHJ510-58 0.6MPa (Pg 6Kg/cm²)

2.标准号 Standard No.：SHJ510-58 1.0MPa (Pg 10Kg/cm²)

3.标准号 Standard No.：SHJ406-89 PN2.0MPa (ANSI 150Lb)
