Efficient Pilot-Operated Drive: By utilizing the pipeline medium's pressure as the driving force, the mechanical load on the electromagnetic coil is vastly minimized. Within the 0.3 to 8 Bar range, it provides swift, highly sensitive on/off actuation alongside low energy consumption, substantially extending coil durability.

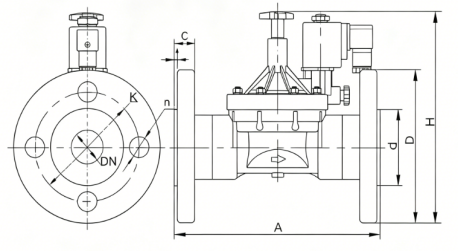

Dual Flange & Union Connection: The hybrid design combining a union nut and a flange provides both the high-pressure endurance of a flanged joint and the flexible, non-destructive disassembly of a union. This drastically reduces installation and servicing difficulties in multi-valve manifolds or confined spaces.
High-Strength PA66 Body: The premium reinforced Polyamide 66 body yields outstanding mechanical strength, wear resistance, and water-hammer endurance. It maintains physical and structural integrity within a fluid/ambient temperature range of -10 to 50 ℃, ensuring rust-free and contamination-free operations.
Hydrodynamically Streamlined Flow: The internal geometry features a large-orifice, low-resistance design optimized specifically for large diameters (up to DN80), ensuring maximum flow capacity (high Cv rating) while diminishing localized fluid turbulence and pressure drops.
Industrial-Grade Protection: Equipped with an IP65-rated industrial coil and standard DIN junction box, yielding exceptional dustproof and waterproof capabilities to guarantee continuous performance even in damp irrigation pump stations or harsh industrial workshops.
