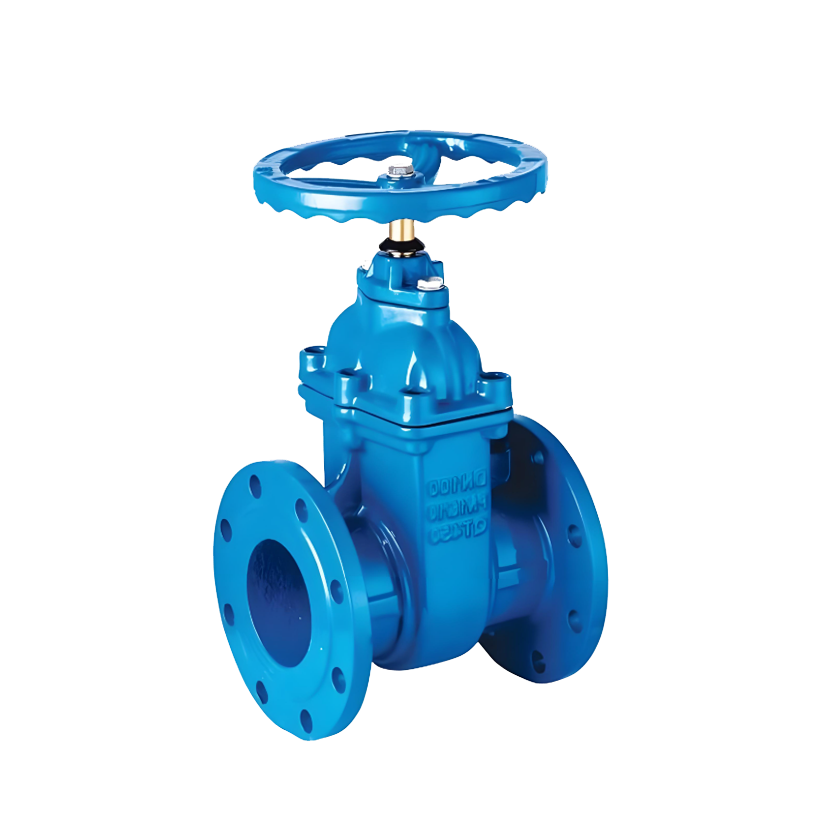

Soft Seal Gate Valve

Soft seal gate valve (elastic seat seal gate valve) is a key improved valve that uses non-metallic elastic materials (such as rubber) as the overall sealing pair on the basis of traditional gate valves. The gate is usually wedge-shaped, with rubber covering the exterior as a whole; The sealing surface of the valve body is machined to match the sealing surface of the gate plate. When the valve is closed, the gate descends and the rubber sealing surface tightly adheres to the valve body sealing surface under pressure, forming an elastic seal. This design gives it a significant advantage over traditional metal sealed gate valves, with excellent zero leakage sealing performance; Small closing torque, easy to operate; Rubber can absorb vibrations and compensate for certain deviations; And it has strong adaptability to fluids and is not easily blocked. However, its application is also limited by the characteristics of rubber materials and is not suitable for working conditions such as high temperature, high pressure, sharp particles, or highly corrosive media. The soft seal gate valve produced by Kaiweixi has become the mainstream shut-off valve in urban water supply networks, building water supply systems, and general fluid transportation fields due to its excellent sealing and economy, especially suitable for clean water media with strict sealing requirements. Resilient Seated Gate Valve (Elastic Seat Gate Valve)

Z41X rising stem soft seal gate valve series

Model：
Z41X-10/Z41X-16Q/Z41X-25Q/Z41X-16P/Z41X-25P/Z41X-16R/Z41X-25R
Specification：
DN50-DN800
Pressure：
PN10-PN25
Material：
cast iron, ductile iron, stainless steel

OverviewZ41X soft sealed rising stem gate valve is a valve that opens or closes fluids by vertically lifting and lowering the gate (valve plate). The valve stem of a rising stem soft seal gate valve will move up or down in a straight line along with the gate plate when the valve is opened or closed. Its trapezoidal thread is located outside the valve body, and we can intuitively see the lifting position of the valve stem to determine the opening of the valve. The sealing surface of the gate is covered with elastic material rubber, and through the support of the valve seat, the elastic sealing ring can tightly adhere to the gate to achieve sealing. The valve rotates the handwheel to drive the valve stem and gate to move vertically, thereby completing the opening or closing action. Z41X soft sealed rising stem gate valve is widely used in high demand applications, such as urban water supply networks, building water supply and drainage systems, sewage treatment plants, food, pharmaceutical and other industrial pipelines. As a reliable cut-off device, it realizes the connection or cut-off control of fluid media.Z41X rising stem soft seal gate valve series Product Drawing

View detail>>
Z945X Electric Resilient Seated Gate Valve

Model：
Z945X-10/Z945X-16Q/Z945X-25Q/Z945X-16P/Z945X-25P/Z945X-16R/Z945X-25R
Specification：
DN50-DN1400
Pressure：
PN10-PN25
Material：
cast iron, ductile iron, stainless steel

OverviewZ945X Electric Resilient Seated Gate Valve is an automatic valve integrated with an electric actuator, which controls the vertical lifting of the gate through electric drive, so as to realize remote and accurate on-off control of the fluid medium. As a soft-sealed gate valve, its gate plate is integrally wrapped with rubber and closely fitted with the valve seat to ensure zero leakage of the seal. The core of the valve is its electric actuator, which can receive the switch signal (or regulating signal) of the control system and automatically complete the opening and closing operation of the valve. It is the key equipment for realizing unattended operation in modern industrial automation and intelligent water service system. The product is widely used in urban water supply network automation system, intelligent water platform, circulating water system of large factories and mines, automatic fire sprinkler system, automatic irrigation of farmland and various process control industrial pipelines. As the key cutting equipment of pipeline fluid, it provides reliable execution guarantee for realizing remote dispatching, intelligent control and efficient management of the system.Z945X Electric Resilient Seated Gate Valve Product Drawing

View detail>>

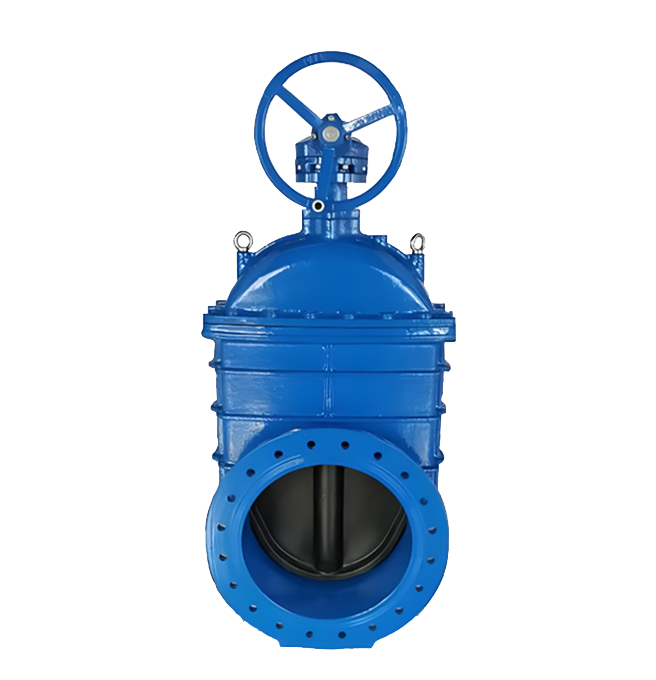

Z545X large-diameter non-rising stem soft seal gate valve

Model：
Z945X-10/Z945X-16Q/Z945X-25Q/Z945X-16P/Z945X-25P/Z945X-16R/Z945X-25R
Specification：
DN500-DN1200
Pressure：
PN10-PN25
Material：
cast iron, ductile iron, stainless steel

OverviewZ545X large-diameter non-rising stem soft seal gate valve is a valve specially designed for large-flow pipeline system, which realizes on-off control of fluid through vertical lifting of gate. As a non-rising stem gate valve, the valve stem only rotates during opening and closing. The threaded transmission parts are completely built-in and the structure height is constant. The valve uses an integral rubber coated gate to form a soft seal to ensure zero leakage. A distinguishing feature is the large bore design, typically driven by a turbine case or electric actuator, to easily handle the enormous operating torque required for large bore valves. This product is mainly used for the trunk line of urban water supply network, water supply and drainage system of large building complex, sewage treatment plant, inlet and outlet pipes of fire pool, water conservancy engineering and other large diameter pipeline systems. As the key cut-off equipment of fluid medium, it realizes the reliable isolation and flow regulation of pipeline, and is one of the core components to ensure the safe and reliable operation of large water transmission and distribution system.Z545X Large-diameter Non-rising Stem Soft Seal Gate Valve Product Drawing

View detail>>
Z45X concealed soft seal gate valve

Model：
Z45X-10/Z45X-16Q/Z45X-25Q/Z45X-16P/Z45X-25P/Z45X-16R/Z45X-25R
Specification：
DN50~DN1000
Pressure：
PN10~PN25
Material：
Cast iron, ductile iron, stainless steel, copper

OverviewThe Z45X soft sealed concealed stem gate valve is a valve that opens or closes fluids by vertically lifting and lowering the gate (valve plate). The stem of the concealed stem soft sealed gate valve only rotates during valve opening and closing, and does not move up or down. Its threaded part is located inside the valve body and is connected to the gate nut. We usually only see the handwheel rotating and cannot see the valve stem lifting or lowering. The sealing surface of the gate is covered with elastic material rubber, and through the support of the valve seat, the elastic sealing ring can tightly adhere to the gate to achieve sealing. The lifting rod of the soft sealed gate valve has trapezoidal threads. Through the nut in the middle of the gate and the guide groove on the valve body, the rotational motion is converted into linear motion, that is, the operating torque is converted into operating thrust to open or close.Z45X soft sealed concealed stem gate valve product image

View detail>>

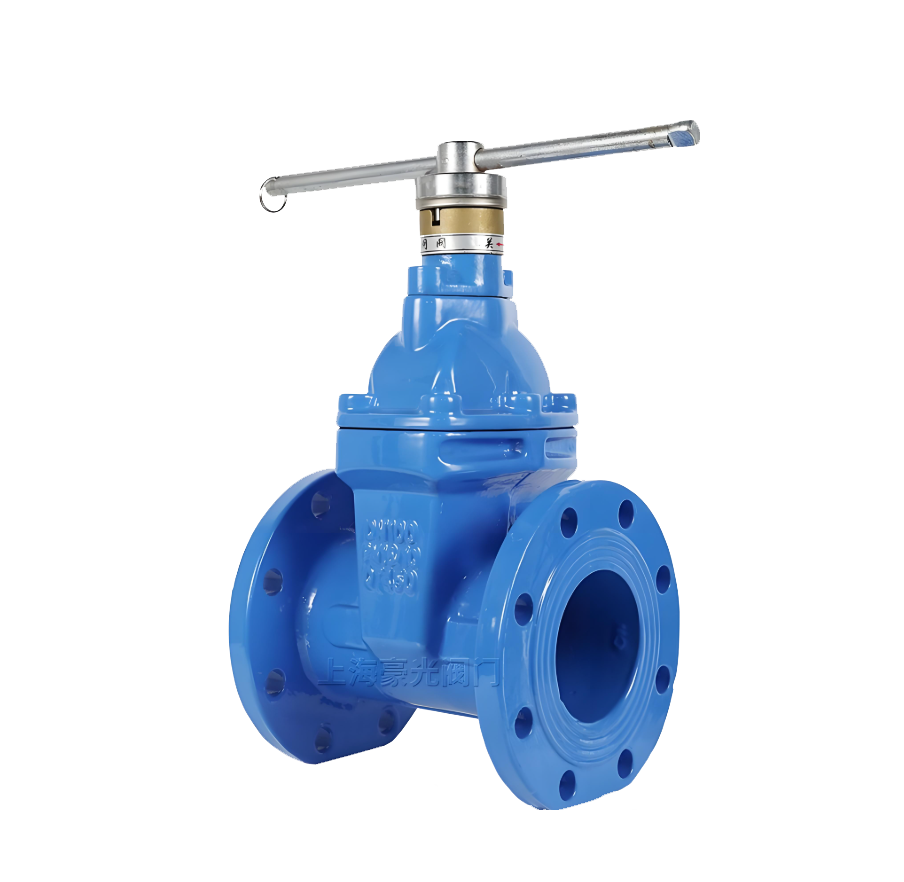

Z45X Non-Rising Stem Resilient Seated Gate Valve with Magnetic Lock

Model：
JXZ45X-10/JXZ45X-16Q/JXZ45X-25Q/JXZ45X-16P/JXZ45X-25P/JXZ45X-16R/JXZ45X-25R
Specification：
DN50-DN400
Pressure：
PN10-PN25
Material：
Cast iron, ductile iron, stainless steel

OverviewZ45X Non-Rising Stem Resilient Seated Gate Valve with Magnetic Lock is a specialized valve integrating dedicated management functions. It controls fluid flow by vertically lifting and lowering the gate plate. As a concealed-stem gate valve, its stem undergoes only rotational motion during operation, ensuring a compact structure. The valve's core feature is its magnetic locking mechanism, which requires a specialized magnetic key for unlocking. This effectively prevents unauthorized personnel from arbitrarily opening or closing the valve, enabling secure management of water supply or fluid systems and eliminating accidents caused by malicious or accidental operation. This product is primarily used in municipal water supply networks, residential communities, public buildings, landscape irrigation, and industrial fluid systems requiring strict management. It is particularly suitable for scenarios necessitating prevention of unauthorized opening/closing, avoidance of misoperation, implementation of water metering management, or regional flow control. It serves as an ideal device for achieving standardized and secure management of fluid systems. Z45X Non-Rising Stem Resilient Seated Gate Valve with Magnetic Lock Product Drawing

View detail>>

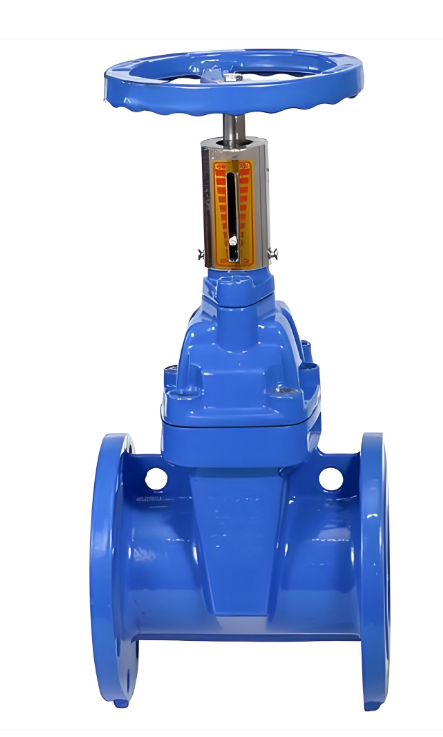

Z45X non-rising stem soft seal gate valve with scale

Model：
KZ45X-10/KZ45X-16Q/KZ45X-25Q/KZ45X-16P/KZ45X-25P/KZ45X-16R/KZ45X-25R
Specification：
DN50-DN300
Pressure：
PN10-PN25
Material：
cast iron, ductile iron, stainless steel

OverviewThe Z45X non-rising stem soft seal gate valve with scale is an intelligent fluid control device that innovatively upgrades the traditional concealed stem gate valve. Its core feature is the integration of a high-precision mechanical scale indication system on the top of the valve cover. The valve adopts a non lifting concealed stem structure, which drives the gate to move vertically through the trapezoidal thread inside the valve stem, achieving precise adjustment and complete cutoff of the pipeline medium. The overall rubber coated gate and fluid optimized valve seat form an elastic sealing pair. While ensuring zero leakage, the scale system can convert the number of valve stem rotations into an intuitive percentage opening display, overcoming the industry problem of the inability to directly observe the opening of concealed stem valves and achieving a perfect unity of concealed installation and visual control. Suitable for urban water supply, industrial circulating water, HVAC systems, and pipeline applications that require precise flow control or status monitoring, especially suitable for installation environments with limited space but clear opening requirements.Product diagram of Z45X non-rising stem soft seal gate valve with scale

View detail>>

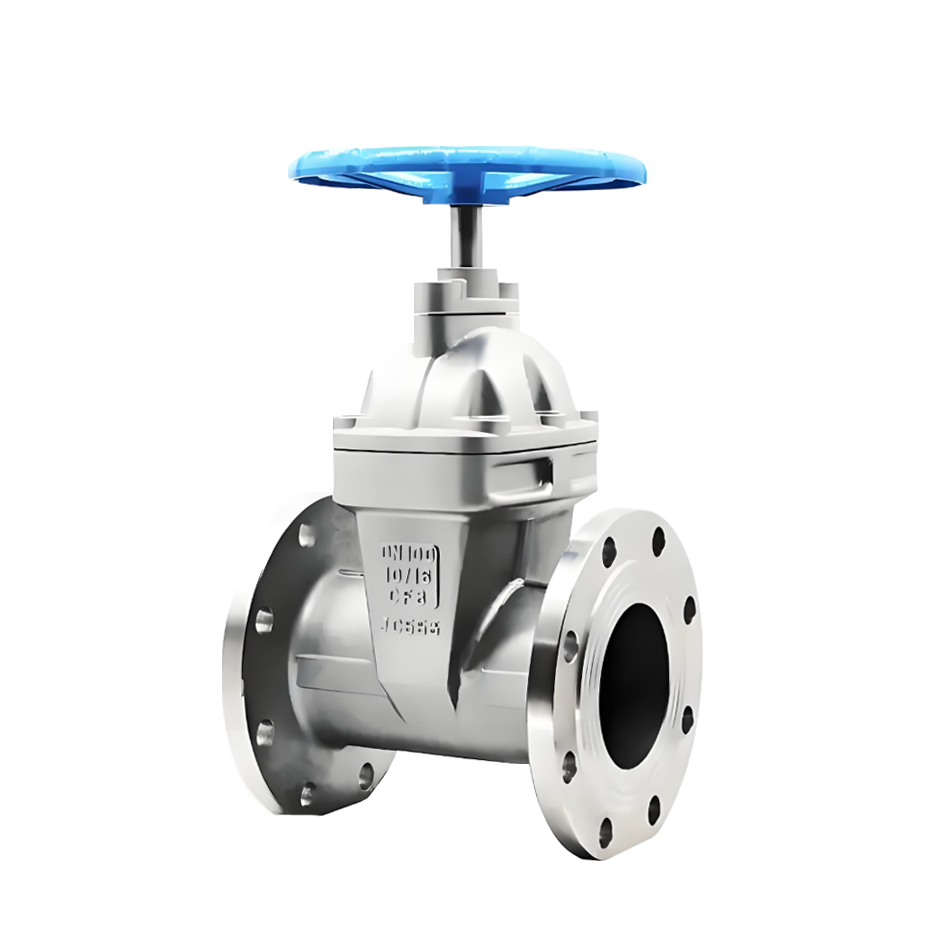

Z45 stainless steel concealed bar gate valve

Model：
Z45X-10P/Z45X-16P/Z45X-25P/Z45X-10R/Z45X-16R/Z45X-25R
Specification：
DN50-DN800
Pressure：
PN10-PN25
Material：
stainless steel

OverviewZ45 stainless steel concealed stem gate valve is a valve made of stainless steel material, which controls fluid flow through the vertical lifting and lowering of the gate. Its concealed stem structure design allows the valve stem to only rotate during opening and closing, and the threaded transmission components are completely placed inside the valve body, resulting in a compact overall structure. The core features of this valve are its full flow path and excellent corrosion resistance. The gate is usually sealed with soft or metal seals, tightly fitting with the valve seat to ensure reliable sealing under various harsh working conditions. This product, with its excellent corrosion resistance and structural strength, is widely used in industrial fields such as chemical, pharmaceutical, food, shipping, seawater treatment, and water treatment. It is particularly suitable for occasions that require high hygiene or material cleanliness, and is a key cutting device in corrosive medium pipeline systems. Z45 Stainless Steel Non-Rising Stem Resilient Seated Gate Valve Product Drawing

View detail>>

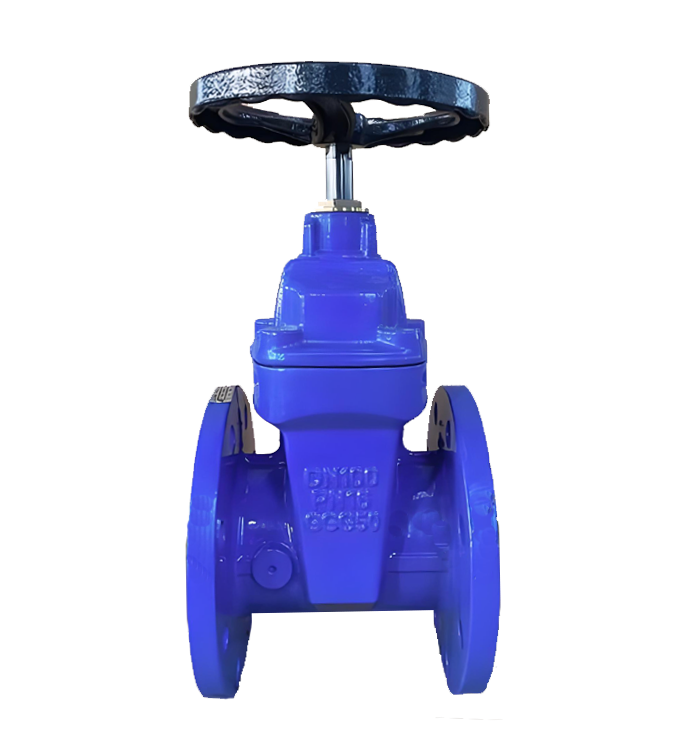

GGG50 DIN Standard Resilient-Seated Gate Valve

Model：
GGG50
Specification：
DN40-DN600
Pressure：
PN10 -PN25
Material：
cast iron, ductile iron, stainless steel

GGG50 German standard soft seal gate valve is a concealed stem soft seal gate valve designed and manufactured strictly in accordance with German standards (DIN/EN). The valve body is made of GGG50 ductile iron material, which has excellent mechanical strength and impact resistance. The valve stem is located inside the valve body and only rotates without lifting or lowering during opening and closing, with a compact structure. The gate adopts a soft sealing structure covered with rubber as a whole, forming an elastic sealing pair with the valve seat to achieve zero leakage. The valve connection end complies with German flange standards (such as DIN EN 1092) and is suitable for water supply, heating, and industrial piping systems that follow the German standard system. Widely used in European and global municipal water supply networks, sewage treatment plants, HVAC systems, fire water supply pipelines, and industrial circulating water systems with German standards for medium and low pressure (PN10/16/25) pipelines, as a cut-off device for manually controlling fluid flow. Especially suitable for drinking water and water treatment systems with high requirements for sealing, corrosion resistance, and service life.GGG50 DIN Standard Resilient-Seated Gate Valve Product Drawing

View detail>>
Z41X Rising Stem Fire Gate Valve

Model：
Z41X-10/Z41X-16Q/Z41X-25Q/Z41X-16P/Z41X-25P/Z41X-16R/Z41X-25R
Specification：
DN50-DN800
Pressure：
PN10-PN25
Material：
cast iron, ductile iron, stainless steel

OverviewThe Z41X Rising Stem Fire Gate Valve is a critical control valve specifically designed for fire protection systems. It regulates water flow by vertically lifting or lowering the gate plate. As a rising stem gate valve, its stem moves in tandem with the gate plate during operation. The external threaded stem allows for clear and intuitive visualization of the valve's open/closed status. This valve integrates a fire signal feedback device that converts the valve's real-time open/closed status into an electrical signal. This signal is transmitted remotely to the fire control center, ensuring continuous monitoring of the fire pipeline's flow status and meeting the safety requirements of fire protection regulations. This product serves as a core control component in fire protection systems for industrial and civil buildings, widely applied in critical pipelines such as fire hydrant systems, automatic sprinkler systems, and fire pump station outlets. Its primary function is to ensure fire supply pipelines remain perpetually ready for operation. Through its signal feedback capability, it provides vital safety monitoring for fire protection systems, making it indispensable equipment for safeguarding lives and property.Z41X明杆消防闸阀产品图

View detail>>

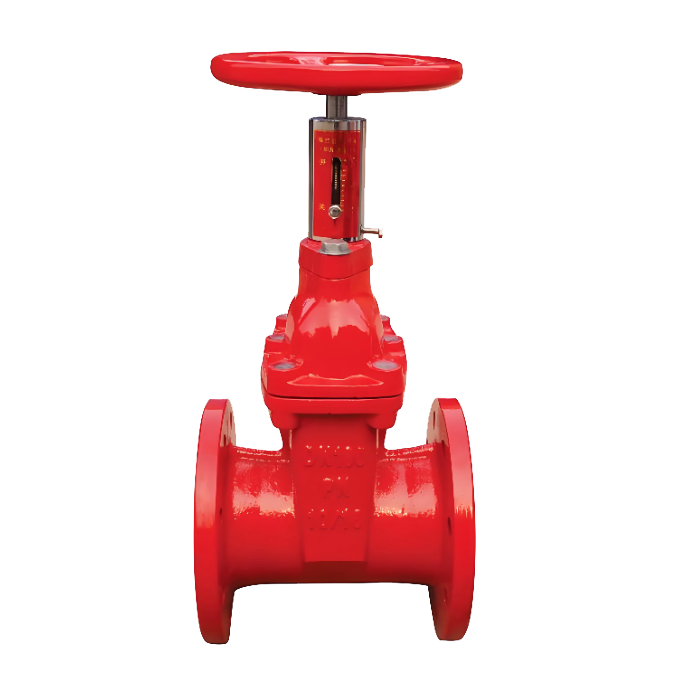

Z45X Fire Protection Non-Rising Stem Gate Valve with Position Indicator

Model：
KZ45X-10/KZ45X-16Q/KZ45X-25Q/KZ45X-16P/KZ45X-25P/KZ45X-16R/KZ45X-25R
Specification：
DN50-DN300
Pressure：
PN10-PN258
Material：
cast iron, ductile iron, stainless steel

OverviewThe Z45X graduated concealed stem fire gate valve is a highly reliable control valve designed specifically for fire protection systems. It opens or cuts off water flow through the vertical lifting of the gate. As a concealed stem gate valve, its valve stem only rotates during opening and closing, resulting in a compact structure. The core innovation of this valve lies in the clear dial on the valve cover or indicator, which can intuitively convert the number of valve stem rotations into percentage opening, thereby accurately indicating the valve status. It usually integrates electrical signal devices to remotely transmit this status to the fire control center, achieving full process visual monitoring from "fully closed" to "fully open". This product is an ideal choice for modern intelligent fire protection systems, widely used in fire hydrant systems, automatic sprinkler systems, and fire pump rooms in various commercial complexes, data centers, hospitals, airports, and other places with extremely high requirements for fire safety. It not only provides reliable truncation function, but also provides dual guarantees for the "constant readiness" of the fire protection system through opening visualization and remote status transmission. It is the core equipment for achieving precise and intelligent fire management.Z45X Product Drawing of Non-rising Stem Fire Gate Valve with Scale

View detail>>
Z45X Fire Protection Indicating Gate Valve

Model：
XZ45X-10/XZ45X-16Q/XZ45X-25Q/XZ45X-16P/XZ45X-25P/XZ45X-16R/XZ45X-25R
Specification：
DN50-DN400
Pressure：
PN10-PN25
Material：
cast iron, ductile iron, stainless steel

Overview Z45X Fire Protection Indicating Gate Valve is a concealed soft seal valve designed specifically to meet the requirements of fire system status monitoring. It is opened and closed by vertical lifting of the gate, and the valve stem is only used for rotational movement. The core feature of the valve is the integrated electromechanical signal feedback device, which can convert the "fully open" and "fully closed" mechanical positions of the valve into real-time switch electrical signals and transmit them remotely to the fire control center, achieving centralized monitoring and alarm of the working status of the fire water supply pipeline valves, ensuring that the system is in a standing and effective state. Key fire water supply pipelines such as fire hydrant systems, automatic sprinkler systems, and fire pump discharge pipelines dedicated to various types of buildings. As the "sentinel valve" of the fire protection system, it not only provides reliable cutoff function, but also realizes remote centralized monitoring of valve opening and closing positions through status signal feedback. It is one of the core components to ensure the integrity and response reliability of the fire protection system.

View detail>>

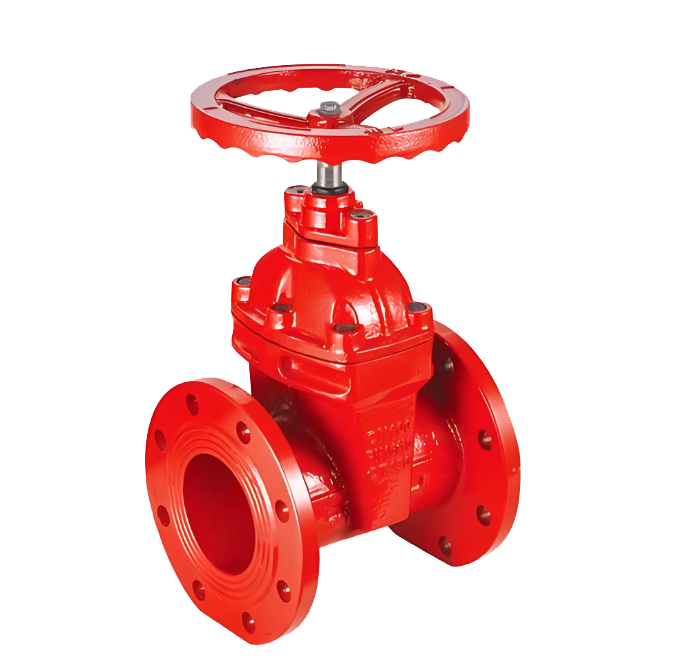

Z45X non-rising stem fire gate valve

Model：
Z45X-10/Z45X-16Q/Z45X-25Q/Z45X-16P/Z45X-25P/Z45X-16R/Z45X-25R
Specification：
DN50-DN600
Pressure：
PN10~PN25
Material：
cast iron, ductile iron, stainless steel

OverviewZ45X non-rising stem fire gate valve is a core control device specifically designed for modern fire protection water supply systems. Featuring a non-rising stem and an integral rubber-lined gate plate structure, it employs internal threaded transmission within the stem to drive vertical movement of the gate plate, ensuring reliable pipeline opening and closing. Strictly compliant with GB/T 12234 and China Compulsory Certification for Fire Protection Products (CCCF) standards, this valve integrates a mechanical signal feedback device. It converts the valve's open/closed status into real-time electrical signals transmitted to the fire control center, ensuring the fire protection pipeline network remains in a legally mandated standby state at all times. Its compact concealed-stem design is particularly suited for installation in space-constrained fire pipe shafts and pump rooms. Specifically designed for various building fire protection systems, including fire hydrant systems, automatic sprinkler systems, and fire pump room pipelines, it serves as a critical control device ensuring the reliable operation of fire water supply systems.Z45X non-rising stem fire gate valve Product Diagram

View detail>>
Z81X Fire Protection Grooved End Rising Stem Resilient Seated Gate Valve

Model：
Z81X-10/Z81X-16Q/Z81X-25Q/Z81X-16P/Z81X-25P/Z81X-16R/Z81X-25R
Specification：
DN50-DN300
Pressure：
PN10-PN25
Material：
cast iron, ductile iron, cast steel, stainless steel

OverviewZ81X Fire Protection Grooved End Rising Stem Resilient Seated Gate Valve is a high reliability control valve designed specifically for fire pipeline systems. It opens or cuts off water flow through the vertical lifting of the gate. This valve combines the two characteristics of a rising stem structure and a groove connection: the valve stem rises and falls together with the gate during opening and closing, and the valve opening is clearly visible; At the same time, using groove pipe joints and clamps for pipeline connection makes installation extremely convenient. The gate is covered with rubber as a whole to ensure zero leakage of the seal, fully meeting the dual requirements of reliability and rapid deployment of the fire protection system. This product is mainly used in fire water supply systems that have extremely high requirements for safety and status monitoring, such as fire hydrant systems, automatic sprinkler systems, and fire pump room outlet pipelines in key places such as commercial complexes, data centers, hospitals, airports, etc. It is particularly suitable for renovation and expansion projects that require quick installation and clear judgment of valve status, or pipeline wells with sufficient space. It is an important equipment for achieving visualization and manageability of fire protection systems.Z81X Grooved Outside Screw & Yoke Fire Gate Valve

View detail>>

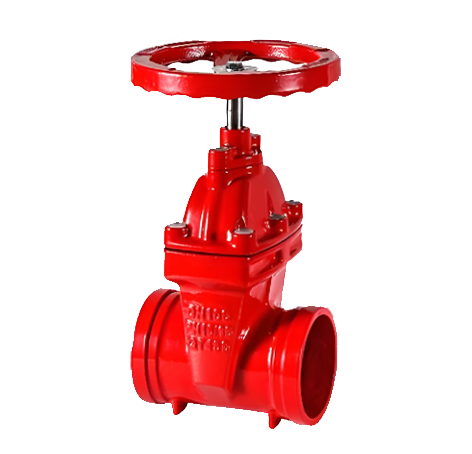

Z85X Fire Protection Grooved End Non-Rising Stem Resilient Seated Gate Valve

Model：
Z85X-10C/Z85X-16C/Z85X-25C/Z85X-10P/Z85X-16P/Z85X-25P/Z85X-10R/Z85X-16R/Z85X-25R
Specification：
DN50-DN200
Pressure：
PN10-PN25
Material：
cast iron, ductile iron, stainless steel

OverviewZ85X Fire Protection Grooved End Non-Rising Stem Resilient Seated Gate Valve is a quick-connection valve specially designed for fire fighting pipeline system. It opens or cuts off water flow through vertical lifting of gate. As a non-rising stem gate valve, the valve stem only rotates during opening and closing, with the structure height unchanged and the overall compact. The core feature of the valve is that the grooved pipe joint is used to replace the traditional flange. During installation, only the pipe section needs to be inserted into the joint and tightened with the clamp, greatly improving the installation efficiency. The gate is integrally covered with rubber to ensure zero leakage of the seal and meet the reliability requirements of the fire fighting system. The product is mainly used in the fire water supply system of industrial and civil buildings, such as fire hydrant system and automatic sprinkler system. It is especially suitable for occasions requiring rapid installation, transformation or regular maintenance, such as construction site, transformation project and pipeline layout with limited space. It is one of the key equipment to realize efficient and reliable arrangement of fire fighting system.Z85X Fire Protection Grooved End Non-Rising Stem Resilient Seated Gate Valve product drawing

View detail>>
