PZL73H Sprocket Operated Lug Type Knife Gate Valve

PZL73H Sprocket Operated Lug Type Knife Gate Valve

  • Model:PZL73H-6C/PZL73H-10C/PZL73H-16C/PZL73H-6P/PZL73H-10P//PZL73H-16P
  • Specification:DN50-DN500
  • Temperature:-29℃~500℃
  • Medium:Pulp, slurry, etc.
  • Pressure:PN6-PN16
  • Connection method:Sprocket
  • Driving method:Sprocket drive
  • Material:Cast steel, stainless steel
x

Add QR code to serve you!

x

Add QR code to serve you!

x

Add QR code to serve you!

x
PZL73H Sprocket Operated Lug Type Knife Gate ValveOverview

Overview

PZL73H Sprocket Operated Lug Type Knife Gate Valve is a specialized knife gate valve that combines chain wheel drive and lug clamp connection. Its core component is a sharp blade shaped gate, which can effectively cut and scrape off the slurry, fibers, and solid particles inside the pipeline. The protruding ear design makes installation and disassembly extremely convenient, especially suitable for pipeline systems that require frequent maintenance or limited space. The sprocket transmission mechanism provides a significant labor-saving effect, allowing operators to easily control valves located at high or difficult to access positions on the ground. Widely used in industries such as mining, metallurgy, papermaking, sewage treatment, coal, chemical, building materials, etc., especially suitable for the following working conditions: pipeline cutting containing solid particles or fiber media such as slurry, tailings, coal slurry, pulp, sludge, etc; Pipeline systems with limited space or requiring frequent disassembly and maintenance; Large caliber valves that are difficult to manually operate require the use of sprockets for effortless control.

PZL73H Sprocket Operated Lug Type Knife Gate Valve Product Drawing

PZL73H Sprocket Operated Lug Type Knife Gate ValveCharacteristic

Features

1. Sprocket Drive for Effortless Operation: Utilizing a sprocket reduction mechanism, it converts minimal input force into substantial output torque. This enables effortless opening and closing of large-diameter valves while facilitating remote operation.

2. Lug Clamp Connection: Lugs on both sides of the valve body employ a clamp-style connection. Bolts pass through the lug holes and secure the valve to pipeline flanges. This design facilitates easy installation, removal, and maintenance, making it particularly suitable for confined spaces.

3. Blade-edge design for superior cutting performance: The gate plate features a sharp cutting edge at its base. During closure, it effortlessly severs entangled fibers, pulp, and solid impurities, effectively preventing valve jamming and ensuring reliable sealing.

4. Compact structure, lightweight: The overall design is short and robust, with a weight significantly lower than flanged gate valves of the same specifications. This effectively reduces pipeline support loads and saves installation space.

5. Wear-resistant sealing and extended service life: The sealing pair typically uses wear-resistant alloy or stainless steel materials. The valve seat can be designed as replaceable, significantly increasing the valve's service life in abrasive media conditions.

PZL73H Sprocket Operated Lug Type Knife Gate Valvestructure principle

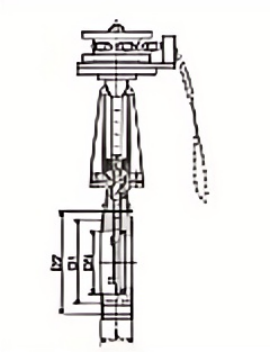

PZL73H Sprocket Operated Lug Type Knife Gate Valve Structural Drawing

Component name and material

零部件名称Part Name闸板 Disc阀杆 Stem密封面 Sealing
体、盖 Body、Bonnet不锈钢、碳钢、灰铸铁(S.S、C.S、C.I)碳钢、不锈钢(C.S、S.S)不锈钢(S.S)橡胶、四氟、不锈钢、硬质合金(Rubber、PTFE、S.S、Carbide Alloy)


PZL73H Sprocket Operated Lug Type Knife Gate Valvetechnology parameter

Performance Specification Sheet

公称压力(MPa)Nominal Pressure壳体试验(MPa)Shell Test密封试验(MPa)Seal Test工作温度Working Tempe ration适用介质Suitable
1.01.51.1小于等于100度-425度纸浆、污水、煤浆、灰、渣水混和物 Mortar Mixture, Dregs With Water Proportion
1.62.41.8小于等于100度


PZL73H Sprocket Operated Lug Type Knife Gate Valvestandard size

Dimensioning Standards

1. Structural length of valves shall comply with GB 13927.

2. Connecting flanges shall comply with GB/T 17241.6.

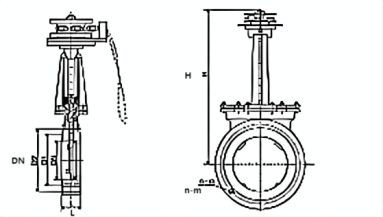

PZL73H Sprocket Operated Lug Type Knife Gate Valve Outline Drawing

外形尺寸表  Dimension Table

0.6 Mpa1.0 Mpa
DNLD1D2Hn-MDNLD1D2Hn-M
5043901103254-M1250501001253254-M16
65461101303404-M1265501201453404-M16
80461251503554-M1680501351603554-M16
100521451704058-M16100501551804058-M16
125561752004408-M16125501852104408-M16
150562002255208-M16150602102405208-M20
200602552805808-M16200602652955808-M20
2506831033567012-M162507032035067012-M20
3007836239582012-M203008036840082012-M20
3507841244592512-M203509042846092516-M20
400102462495103016-M20400100482515103016-M22
450114518550118016-M20450120532565118020-M22
500127568600129016-M20500130585620129020-M22
