Z543Y Parallel Slide Gate Valve with Hardfaced Seats

Model：Z543Y-10C/Z543Y-16C/Z543Y-25C/Z543Y-40C/Z543Y-64CZ543Y-10P/Z543Y-16P/Z543Y-25P/Z543Y-40P/Z543Y-64P/Z543Y-150LB/Z543Y-300LB/Z543Y-600LB/Z543Y-900LB
Specification：DN50-DN600
Temperature：-29℃ ~ +425℃
Medium：water, oil, steam, gas, and corrosive media.

Pressure：150LB-900LB
Connection method：flange connection
Driving method： manual, electric and pneumatic
Material：cast steel, stainless steel

Consult now

Add QR code to serve you!

Z543Y Parallel Slide Gate Valve with Hardfaced SeatsOverview

Overview

Z543Y Parallel Slide Gate Valve with Hardfaced Seats is a straight-through valve driven by bevel gear, which realizes the on-off of fluid through the vertical rise and fall of a flat gate between two parallel valve seats. Its "Y" represents that the sealing surface is overlaid with hard alloy (such as Stellite) or other wear-resistant materials to form a high-performance metal hard seal pair together with the ram of the same surfacing hard alloy. The introduction of bevel gear transmission mechanism provides huge operating torque, making the opening and closing of large-diameter and high-pressure valves labor-saving and reliable. The product is mainly used in heavy industrial fields such as oil and natural gas long-distance pipelines, refineries, chemical plants, power stations, offshore platforms, etc. It is applicable to the transmission of crude oil, refined oil, natural gas, water, steam and other media, especially suitable for high temperature, high pressure, high wear and critical pipe sections requiring strict cutting as the main block valve. It is one of the core equipment to ensure the safe operation of the industrial energy artery.

Z543Y Parallel Slide Gate Valve with Hardfaced Seats Product Drawing

Z543Y Parallel Slide Gate Valve with Hardfaced SeatsCharacteristic

Features:

Bevel gear labor-saving drive: the bevel gear angle drive mechanism is adopted, with obvious torque increasing effect, which can amplify the hand wheel input force dozens of times, easily drive valves with large diameter and high pressure rating, and support the extension of the operating shaft in vertical or horizontal directions.

High-performance hard seal: "Y" hard alloy sealing surface has extremely high hardness, abrasion resistance and scratch resistance, which is applicable to high temperature, high pressure and harsh working conditions containing tiny particles, and its service life is far more than that of conventional sealing materials.

Full-diameter and low flow resistance: the valve adopts full-diameter design, the flow passage is smooth and straight, basically consistent with the inner diameter of the pipe, the resistance is very small when the fluid passes through, almost no pressure loss is generated, and it is suitable for large-flow transmission pipelines.

Double ram elastic structure: floating double ram design is generally adopted, with built-in elastic elements, which can automatically compensate the clearance caused by temperature and pressure change or slight wear when closing, so as to ensure the reliability of two-way seal.

Solid structure and wide applicability: the valve body is usually forged with carbon steel or alloy steel, with high structural strength. The combination of hard seal and bevel gear drive makes it ideal for heavy industrial applications such as long-distance pipelines, oil fields and power plants.

Z543Y Parallel Slide Gate Valve with Hardfaced Seatsstructure principle

Z543Y Parallel Slide Gate Valve with Hardfaced Seats Structure Diagram

Part name and material

零件名称（Part Name）	阀体、阀盖（Valve Body & Bonnet）	闸板（Gate Disc）	阀杆（Valve Stem）	阀座（Valve Seat）
"Z"型（Type "Z"）	WCB（碳钢铸件）	合金钢(特殊处理)（Alloy Steel, Special Treatment）	不锈钢（Stainless Steel）	合金钢(特殊处理)（Alloy Steel, Special Treatment）
"KZ"型（Type "KZ"）	-	-	抗硫不锈钢（Sulfur-Resistant Stainless Steel）	-

Z543Y Parallel Slide Gate Valve with Hardfaced Seatstechnology parameter

Performance Specification Sheet

公称压力（Nominal Pressure）1.0 MPa	壳体（Shell）				左密封（Left Seal）		右密封（Right Seal）
公称压力（Nominal Pressure）1.0 MPa	1.5	1.1	1.1	低压密封（Low-Pressure Seal）	“G”型（Type "G"）	“D”型（Type "D"）	“KZ”型（Type "KZ"）	“Z”型（Type "Z"）
公称压力（Nominal Pressure）1.6 MPa	2.4	1.76	1.76	0.6	-29～250	-45～121	含H₂S和CO₂＞500Mg/m³的介质（Media with H₂S and CO₂＞500Mg/m³）	石油、天然气、水等（Oil, Natural Gas, Water, etc.）
公称压力（Nominal Pressure）2.5 MPa	3.75	2.75	2.75	0.6	-29～250	-45～121	含H₂S和CO₂＞500Mg/m³的介质（Media with H₂S and CO₂＞500Mg/m³	石油、天然气、水等（Oil, Natural Gas, Water, etc.）
公称压力（Nominal Pressure）4.0 MPa	6.0	4.4	4.4	0.6	-29～250	-45～121	含H₂S和CO₂＞500Mg/m³的介质（Media with H₂S and CO₂＞500Mg/m³	石油、天然气、水等（Oil, Natural Gas, Water, etc.）
公称压力（Nominal Pressure）6.4 MPa	9.6	7.04	7.04	0.6	-29～250	-45～121	含H₂S和CO₂＞500Mg/m³的介质（Media with H₂S and CO₂＞500Mg/m³	石油、天然气、水等（Oil, Natural Gas, Water, etc.）
公称压力（Nominal Pressure）10.0 MPa	15.0	11.0	11.0	0.6	-29～250	-45～121	含H₂S和CO₂＞500Mg/m³的介质（Media with H₂S and CO₂＞500Mg/m³	石油、天然气、水等（Oil, Natural Gas, Water, etc.）
公称压力（Nominal Pressure）16.0 MPa	24.0	17.6	17.6	0.6	-29～250	-45～121	含H₂S和CO₂＞500Mg/m³的介质	石油、天然气、水等（Oil, Natural Gas, Water, etc.）
磅级（Pressure Class）150 Lb	2.93	2.07	2.07	0.6	-29～250	-45～121	含H₂S和CO₂＞500Mg/m³的介质（Media with H₂S and CO₂＞500Mg/m³	石油、天然气、水等（Oil, Natural Gas, Water, etc.）
磅级（Pressure Class）300 Lb	5.52	5.52	5.52	0.6	-29～250	-45～121	含H₂S和CO₂＞500Mg/m³的介质（Media with H₂S and CO₂＞500Mg/m³	石油、天然气、水等（Oil, Natural Gas, Water, etc.）
磅级（Pressure Class）400 Lb	10.0	7.31	7.31	0.6	-29～250	-45～121	含H₂S和CO₂＞500Mg/m³的介质（Media with H₂S and CO₂＞500Mg/m³	石油、天然气、水等（Oil, Natural Gas, Water, etc.）
磅级（Pressure Class）600 Lb	15.0	11.03	11.03	0.6	-29～250	-45～121	含H₂S和CO₂＞500Mg/m³的介质（Media with H₂S and CO₂＞500Mg/m³	石油、天然气、水等（Oil, Natural Gas, Water, etc.）
磅级（Pressure Class）900 Lb	22.4	16.54	16.54	0.6	-29～250	-45～121	含H₂S和CO₂＞500Mg/m³的介质（Media with H₂S and CO₂＞500Mg/m³	石油、天然气、水等（Oil, Natural Gas, Water, etc.）
				0.6	-29～250	-45～121	含H₂S和CO₂＞500Mg/m³的介质（Media with H₂S and CO₂＞500Mg/m³	石油、天然气、水等（Oil, Natural Gas, Water, etc.）

Z543Y Parallel Slide Gate Valve with Hardfaced Seatsstandard size

Standard requirements for overall dimensions

1. The structural length of the valve shall comply with GB13927

2. Connecting flange shall comply with GB/T 17241.6

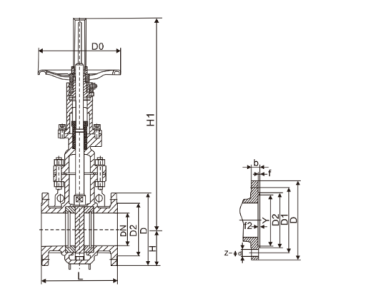

Z543Y Parallel Slide Gate Valve with Hardfaced Seats Outline Drawing

Outline Dimension Table

公称压力 (MPa) Nominal pressure(MPa)	尺寸(mm) Size (mm)
公称压力 (MPa) Nominal pressure(MPa)	DN(mm)		100	125	150	200	250	300	350	400	450	500	600	700	800	900	1000
1.0	L		229	254	267	292	330	356	381	406	432	457	508	610	660	711	811
	H		770	870	965	1200	1360	1560	1740	1930	2160	2420	2800	3200	3640	4050	4467
	H1	No flow guide holes	114	132	150	188	225	247	275	312	335	380	445	490	560	610	715
	H1	flow guide holes	214	257	300	388	475	547	625	712	785	880	1045	1190	1360	1510	1715
	weight(kg)	No	87	130	140	175	275	350	510	610	830	1150	1780	2350	3380	4460	5740
	weight(kg)	flow guide holes	94	140	151	198	297	378	550	658	896	1240	1922	2530	3650	4817	6200
1.6	L		229	254	267	292	330	356	381	406	432	457	508	610	660	711	811
	H		770	870	965	1200	1360	1560	1740	1930	2160	2420	2800	3200	3640	4050	4467
	H1	No	114	132	150	188	225	247	275	312	335	380	445	490	560	610	715
	H1	flow guide holes	214	257	300	388	475	547	625	712	785	880	1045	1190	1360	1510	1715
	weight(kg)	No	90	135	150	185	295	400	550	660	1030	1300	1950	3010	3800	5150	6360
	weight(kg)	flow guide holes	97	145	162	200	318	432	596	713	1100	1400	2100	3250	4100	5560	6868
2.5	L		229	254	267	292	330	356	381	406	432	457	508	610	660	711	811
	H		770	870	965	1200	1370	1560	1740	1970	2260	2420	2800	3230	3640	4050	4467
	H1	No	114	132	150	188	225	247	275	312	335	380	445	490	560	610	715
	H1	flow guide holes	214	257	300	388	475	547	625	712	785	880	1045	1190	1360	1510	1715
	重量 (kg)	No	95	145	163	200	330	420	575	735	1110	1380	2030	3210	4020	5320	6600
	重量 (kg)	flow guide holes	103	156	176	216	356	450	621	794	1198	1490	2192	3466	4340	5745	7130

公称压力(MPa) Nominal pressure(MPa)	尺寸(mm)size
公称压力(MPa) Nominal pressure(MPa)	DN(mm)		100	125	150	200	250	300	350	400	450	500	600	700	800
4.0	L		305	381	403	419	457	502	762	838	914	991	1143	1346	1524
	H		770	870	965	1200	1370	1560	1740	1970	2195	2420	2800	3230	3640
	H1	No	114	132	150	188	225	247	275	312	346	380	445	490	560
	H1	flow guide holes	214	257	300	388	475	547	625	712	796	880	1045	1190	1360
	weight (kg)	No	110	168	200	350	460	670	870	1390	1620	2050	3140	4140	5550
	weight (kg)	flow guide holes	118	181	215	378	497	723	939	1500	1750	2215	3390	4470	5995
