OverviewThe Z41W-150LB API Standard Gate Valve (150LB Pressure Class) is a rising stem gate valve designed and manufactured according to American standards (such as API and ANSI). It controls fluid flow by vertically lifting or lowering the gate plate. During operation, the valve stem moves in tandem with the gate plate, providing clear position indication. The valve's core feature lies in its “W” designation, indicating a sealing surface machined directly from the valve body material. This typically forms a metal-to-metal hard seal pairing with the metal gate. Rated at 150LB pressure, it meets corresponding American standard pressure-temperature ratings and is suitable for various demanding industrial applications. Widely adopted in petroleum, chemical, power generation, natural gas, and shipbuilding industries adhering to American standards or requiring international compatibility, this valve reliably serves as shut-off equipment in pipelines transporting water, steam, petroleum products, natural gas, and non-aggressive media. It plays a critical role in applications demanding strict isolation and complex operating conditions.Z41W-150LB API Standard Gate Valve (150LB Pressure Class)

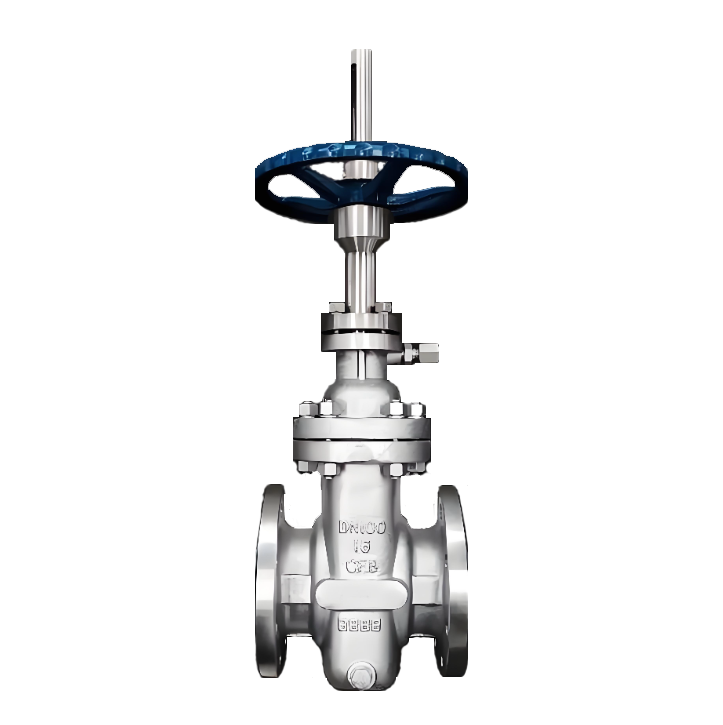

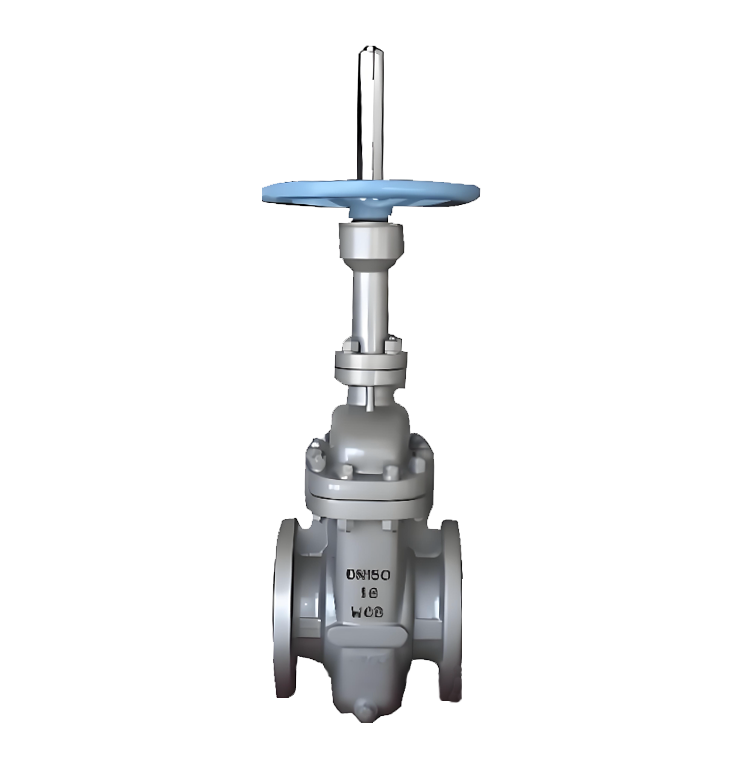

OverviewThe Z43WF stainless steel flat gate valve is a straight-through valve manufactured from stainless steel. It controls fluid flow by vertically lifting a flat gate plate between two parallel seats. Typically featuring a “dual gate plate with elastic expansion” design, this valve automatically compensates for wear on the sealing surfaces during closure. The “F” designation indicates that the seat sealing surface is machined directly from the valve body material or overlaid with other materials, forming a metal-to-metal hard seal with the stainless steel gate plate. This configuration is suitable for high-temperature, high-pressure, and applications requiring high cleanliness standards. This product is widely used in pipeline systems across petrochemical, natural gas transmission, food and pharmaceutical, marine, and light industrial sectors. It is particularly suitable for conveying natural gas, refined oil, water, steam, and various non-corrosive media. It serves as critical shut-off equipment requiring high flow capacity, reliable sealing, and stringent material cleanliness standards.Z43WF Stainless Steel Flat Gate Valve Product Drawing

Z941W electric gate valve is a rising stem wedge gate valve driven by an electric actuator and connected by a flange. It drives the reduction mechanism through a motor to lift and lower the valve stem, causing the wedge gate to move vertically and achieve the opening and closing of the pipeline. The valve body can be made of various materials such as carbon steel and stainless steel, and the sealing surface is directly machined from the valve body material ("W" shape) to form a hard metal to metal seal. This valve integrates a manual operating mechanism, which can perform emergency operations in case of power interruption. It is designed for remote centralized control, automated processes, and frequent opening and closing situations, and is the core execution unit for intelligent management in modern industrial pipeline systems. Widely used in automation control systems for petrochemical, power, metallurgy, municipal water supply, sewage treatment, HVAC, and general industrial pipelines, as a key cutoff device for remote operation, process interlocking, or unmanned situations. Especially suitable for modern industrial pipeline systems that require centralized monitoring, frequent operation, or integration with upper computer systems.API Standard Bevel Gear Gate Valve Product Drawing

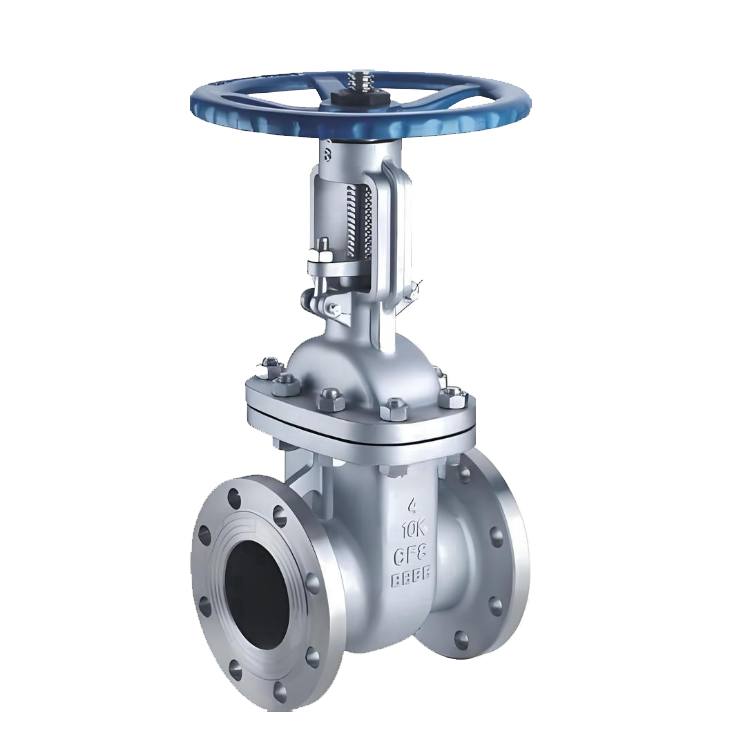

OverviewThe Z41H-10K stainless steel JIS gate valve is a rising stem gate valve designed and manufactured in full compliance with Japanese Industrial Standards (JIS). It controls fluid flow by vertically lifting or lowering the gate plate. The valve stem rises and falls with the gate plate during operation, providing clear position indication. The valve pressure rating is “10K,” equivalent to the nominal pressure of PN10-16. Constructed from stainless steel with a metal hard seal (“H” type) sealing pair, it offers excellent corrosion resistance. This valve is suitable for industrial systems requiring material purity and compliance with specific standards. This product is widely used in Japanese-funded enterprises, equipment exported to Japan, and domestic projects strictly adhering to Japanese standards, such as chemical, pharmaceutical, food, water treatment, and Japanese-style marine industries. It is suitable for conveying water, steam, oil, gas, and various non-corrosive media, serving as critical equipment for reliable pipeline isolation within the Japanese standard system.Z41H-10K Stainless Steel Gate Valve (JIS 10K Standard) Product Drawing

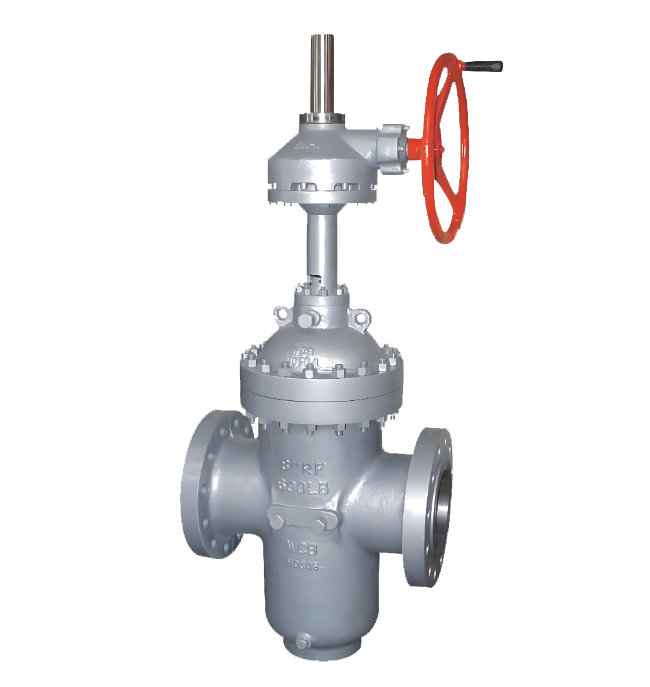

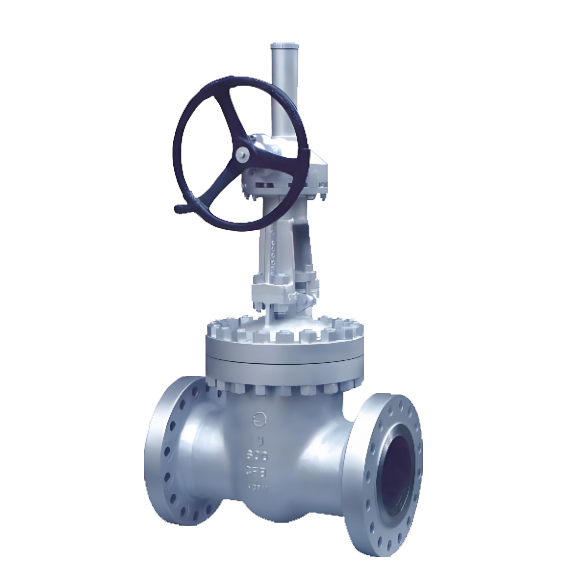

OverviewZ543Y Parallel Slide Gate Valve with Hardfaced Seats is a straight-through valve driven by bevel gear, which realizes the on-off of fluid through the vertical rise and fall of a flat gate between two parallel valve seats. Its "Y" represents that the sealing surface is overlaid with hard alloy (such as Stellite) or other wear-resistant materials to form a high-performance metal hard seal pair together with the ram of the same surfacing hard alloy. The introduction of bevel gear transmission mechanism provides huge operating torque, making the opening and closing of large-diameter and high-pressure valves labor-saving and reliable. The product is mainly used in heavy industrial fields such as oil and natural gas long-distance pipelines, refineries, chemical plants, power stations, offshore platforms, etc. It is applicable to the transmission of crude oil, refined oil, natural gas, water, steam and other media, especially suitable for high temperature, high pressure, high wear and critical pipe sections requiring strict cutting as the main block valve. It is one of the core equipment to ensure the safe operation of the industrial energy artery.Z543Y Parallel Slide Gate Valve with Hardfaced Seats Product Drawing

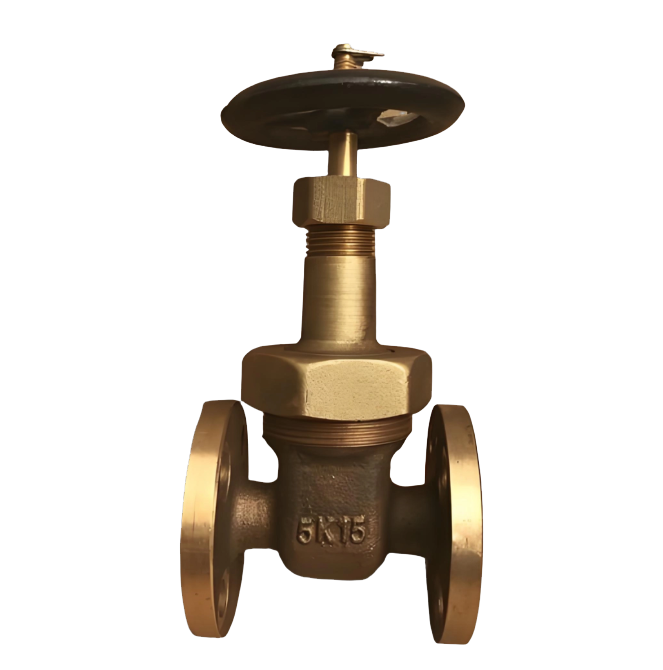

JIS Japanese standard bronze gate valve (model F7367) is a specialized marine valve designed and manufactured strictly in accordance with Japanese Industrial Standards (JIS) and classification society specifications such as the Japan Maritime Association (NK). It is cast with high-strength tin bronze or aluminum bronze, which has excellent resistance to seawater corrosion and good mechanical properties. Valves usually adopt a rising stem wedge structure, with the valve stem rising and falling along with the gate, and the opening indication is intuitive. The connection end complies with JIS marine flange standards (such as JIS F7300 series) and is suitable for ship piping systems. This valve is designed specifically for marine environments and ship operating conditions, and is a key equipment for fluid control in various types of ships and marine engineering. Widely used in ballast water systems, seawater cooling systems, fire protection systems, bilge water systems, domestic water systems, and oil transportation pipelines of various types of ships. It is also applicable to seawater resistant pipeline systems for offshore platforms, port facilities, and coastal industries. As an indispensable cutting device in ship and ocean engineering, its reliability is directly related to the safety of ship navigation and the normal operation of equipment.JIS Standard Marine Bronze Gate Valve f7367 Product Drawing

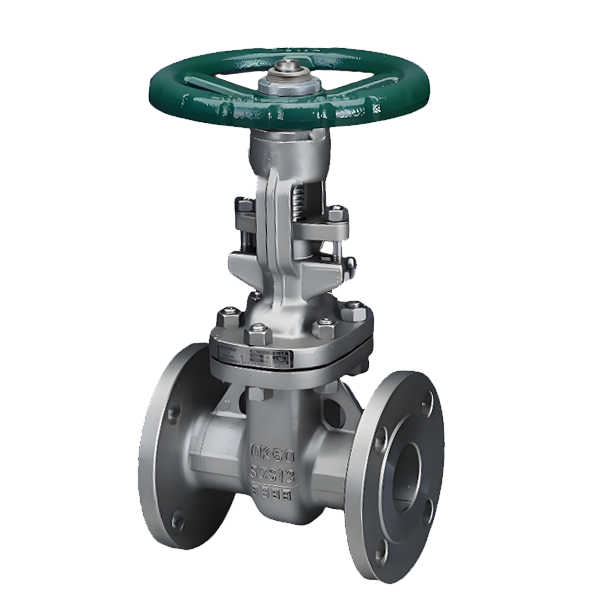

JIS rising stem Japanese standard hard seal gate valve is a rising stem wedge gate valve designed and manufactured strictly in accordance with Japanese Industrial Standards (JIS). The valve stem rises and falls together with the gate, and the valve opening can be intuitively judged by observing the height of the valve stem extension. The sealing surface adopts a metal to metal hard sealing structure (such as alloy steel welding) to form a reliable hard sealing pair. The connection end complies with Japanese standard flange standards (such as JIS B 2238, JIS B 2210) and is suitable for pipeline systems in Japan and Asia that follow the Japanese standard system. This valve is designed specifically for medium and high pressure, high temperature, and wear-resistant working conditions, and is an ideal choice for Japanese funded enterprises, export equipment to Japan, and engineering projects that adopt Japanese standard design. Widely used in petrochemical, municipal water supply, sewage treatment, power, shipbuilding, and general industrial pipeline systems in Japan and Asian countries (such as South Korea and Southeast Asia) that adopt Japanese standard design. Especially suitable for Japanese owned enterprises' factories in China, export equipment to Japan, and engineering projects constructed according to JIS standards. Commonly used for transporting water, steam, oil, gas, and weakly corrosive media in medium and high pressure pipelines, as a key cutting device that requires intuitive display of opening, easy monitoring, and maintenance.JIS Standard Rising Stem Metal-Seated Gate Valve Product Drawing

BS British standard concealed stem hard seal gate valve is a concealed stem wedge gate valve designed and manufactured strictly in accordance with British standards (BS). The valve stem is located inside the valve body and only rotates during opening and closing without lifting, with a constant structural height. The sealing surface adopts a metal to metal hard sealing structure (such as alloy steel or stainless steel) to form a reliable hard sealing pair. The valve connection end complies with the British standard flange standards (such as BS 4504, BS 10) and is suitable for pipeline systems that follow the British standard system. This valve is designed specifically for medium to high pressure, high temperature, and wear-resistant working conditions, and is an ideal choice for Commonwealth countries and engineering projects that adopt British standard design. Widely used in municipal water supply, sewage treatment, petrochemicals, electricity, ships, and industrial pipeline systems in Commonwealth countries, especially suitable for engineering projects designed with British standards. Commonly used as a reliable cutoff device for medium and high pressure pipelines transporting water, steam, oil, gas, and weakly corrosive media.BS Standard Non-Rising Stem Metal-Seated Gate Valve Product Drawing

The BS hard seal gate valve is a concealed wedge gate valve designed and manufactured strictly in accordance with British Standards (BS). The valve stem is located inside the valve body and only rotates during opening and closing without lifting, with a constant structural height. The sealing surface adopts a metal to metal hard sealing structure (such as alloy steel or stainless steel) to form a reliable hard sealing pair. The valve connection end complies with the British standard flange standards (such as BS 4504, BS 10) and is suitable for pipeline systems that follow the British standard system. This valve is designed specifically for medium to high pressure, high temperature, and wear-resistant working conditions, and is an ideal choice for Commonwealth countries and engineering projects that adopt British standard design. Widely used in municipal water supply, sewage treatment, petrochemicals, electricity, ships, and industrial pipeline systems in Commonwealth countries, especially suitable for engineering projects designed with British standards. Commonly used as a reliable cutoff device for medium and high pressure pipelines transporting water, steam, oil, gas, and weakly corrosive media. Widely used in municipal water supply, sewage treatment, petrochemicals, electricity, ships, and industrial pipeline systems in Commonwealth countries, especially suitable for engineering projects designed with British standards. Commonly used for transporting water, steam, oil, gas, and weakly corrosive media in medium and high pressure pipelines, as a key cutting device that requires intuitive display of opening, easy monitoring, and maintenance.BS Standard Rising Stem Metal-Seated Gate Valve Product Drawing

The BS hard seal gate valve is a concealed wedge gate valve designed and manufactured strictly in accordance with British Standards (BS). The valve stem is located inside the valve body and only rotates during opening and closing without lifting, with a constant structural height. The sealing surface adopts a metal to metal hard sealing structure (such as alloy steel or stainless steel) to form a reliable hard sealing pair. The valve connection end complies with the British standard flange standards (such as BS 4504, BS 10) and is suitable for pipeline systems that follow the British standard system. This valve is designed specifically for medium to high pressure, high temperature, and wear-resistant working conditions, and is an ideal choice for Commonwealth countries and engineering projects that adopt British standard design. Widely used in municipal water supply, sewage treatment, petrochemicals, electricity, ships, and industrial pipeline systems in Commonwealth countries, especially suitable for engineering projects designed with British standards. Commonly used as a reliable cutoff device for medium and high pressure pipelines transporting water, steam, oil, gas, and weakly corrosive media. Widely used in municipal water supply, sewage treatment, petrochemicals, electricity, ships, and industrial pipeline systems in Commonwealth countries, especially suitable for engineering projects designed with British standards. Commonly used for transporting water, steam, oil, gas, and weakly corrosive media in medium and high pressure pipelines, as a key cutting device that requires intuitive display of opening, easy monitoring, and maintenance.DIN Standard Metal-Seated Gate Valve Product Drawing

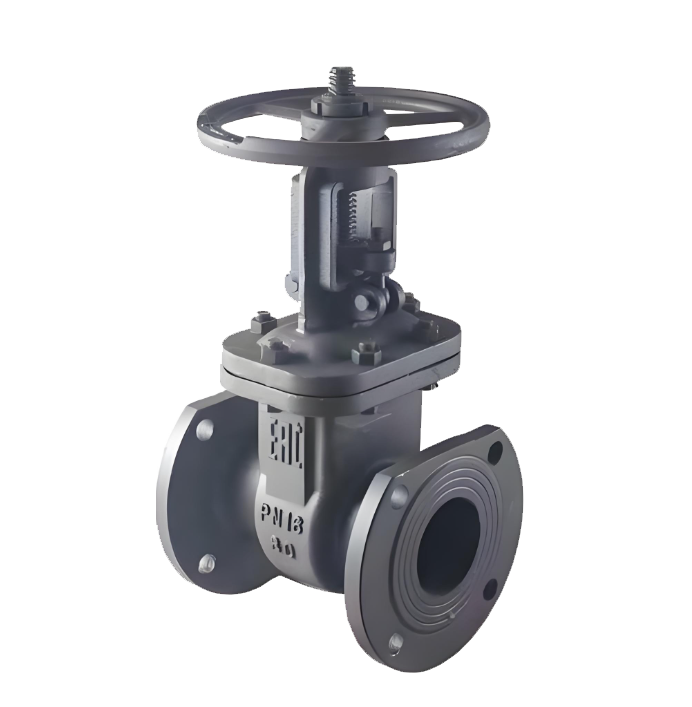

GOST rising stem Russian standard gate valve is a rising stem wedge gate valve designed and manufactured strictly in accordance with the Russian national standard (GOST). The valve stem rises and falls together with the gate, and the valve opening can be intuitively judged by observing the height of the valve stem extension. The valve body is usually made of cast iron, cast steel or alloy steel, and the sealing surface can be welded with alloy steel to form a metal hard seal. The connection end complies with the Russian standard flange standards (such as GOST 12815, GOST 33259) and is suitable for pipeline systems in CIS countries and Eastern Europe that follow the Russian standard system. This valve is designed specifically for medium and high pressure, high temperature, and wear-resistant working conditions, and is a standard choice in engineering projects in Russia and CIS countries. Widely used in industries such as oil and gas, municipal water supply, heating pipelines, electricity, metallurgy, and chemical engineering in Russia and CIS countries, especially suitable for engineering projects designed according to GOST standards. Commonly used for transporting water, steam, oil, gas, and weakly corrosive media in medium and high pressure pipelines, as a key cutting device that requires intuitive display of opening, easy monitoring, and maintenance.GOST Standard Rising Stem Gate Valve Product Drawing

OverviewThe Z43F flat gate valve is a flanged straight-through valve that controls fluid flow by vertically lifting a flat gate plate between two parallel seats. Typically featuring a “dual gate plate with elastic compression” design, this valve automatically compensates for wear on the sealing surfaces during closure. The “F” designation indicates that the seat sealing surface is machined directly from the valve body material or overlaid with other materials, forming a metal-to-metal hard seal with the gate plate. This robust construction makes it suitable for industrial pipelines demanding high flow capacity under severe operating conditions. This product is widely used in various pipeline systems across industrial sectors including petrochemicals, natural gas transmission, power generation, metallurgy, and urban heating. It is particularly suitable for transporting crude oil, refined oil products, natural gas, steam, water, and other media, serving as critical shut-off equipment requiring high flow capacity, reliable sealing, and long-term stable operation under elevated temperatures and pressures.Z43F Flat Gate Valve Product Diagram
