LT342X Piston Type Flow and Pressure Regulating Valve

LT342X Piston Type Flow and Pressure Regulating Valve

  • Model:LT342X-10Q/16Q
  • Specification:DN300-DN2000
  • Temperature:≤80℃
  • Medium:Water and water-like media
  • Pressure:PN10~PN16
  • Connection method:flange
  • Driving method:Worm Gear
  • Material:Ductile Iron
x

Add QR code to serve you!

x

Add QR code to serve you!

x

Add QR code to serve you!

x
LT342X Piston Type Flow and Pressure Regulating ValveOverview

The LT342X Plunger Valve is a high-performance multifunctional control valve designed based on fluid mechanics principles, incorporating advanced technologies from both domestic and international sources. Featuring a unique piston structure that adjusts flow channel area through axial movement, it enables precise and continuous regulation of pipeline medium flow and pressure. Not only is it suitable for clean water, but also demonstrates excellent tolerance for natural river and lake water as well as mild wastewater. This effectively addresses the common issues of scaling and clogging in traditional valves, making it widely adopted in critical pipeline systems such as power plants, water diversion projects, and urban-rural water supply networks.

LT342X Piston Type Flow and Pressure Regulating Valve Product Diagram

LT342X Piston Type Flow and Pressure Regulating ValveCharacteristic

1. High-pressure energy dissipation and cavitation resistance: The valve body features a streamlined, axisymmetric flow channel design that significantly reduces noise and vibration. Its unique piston-and-cage (fan ring) structure effectively dissipates energy through multi-hole jet collisions, ensuring cavitation prevention even under inlet/outlet pressure differentials up to 40 kg/cm², thus safeguarding pipeline systems.

2. Reliable sealing with zero-leakage closure: Featuring a metal-to-metal primary seal and floating valve seat design, it delivers exceptional sealing performance. When fully closed, the valve ensures complete leakage-free operation, making it a reliable shut-off valve.

3. High resistance and durability with extended service life: The specially designed flow path and robust piston structure enable it to handle fluids containing small particles like sand. Critical components such as valve seats and guide rails are made of special stainless steel, with a hardness three times that of ordinary stainless steel, offering excellent wear and corrosion resistance. The designed service life reaches up to 30 years.

4. The intelligent valve features excellent linear regulation characteristics across the full flow range, ensuring stable and precise control. It can be equipped with electric drive devices, PLC control systems, and sensors to achieve both local and remote intelligent automation, with user-friendly operation.

5. The operating force is small and the flow resistance is low. The motion direction of the operating part (piston) is consistent with the direction of the fluid, and the operating torque is small. The optimized flow channel makes the pressure loss of the valve small, which helps to reduce the power consumption of the pipe network.

LT342X Piston Type Flow and Pressure Regulating Valvestructure principle

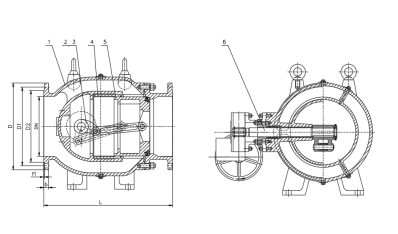

LT342X Piston Type Flow and Pressure Regulating Valve Structure Diagram


List of Component Names and Materials

SNOnamematerial
1bodyDuctile cast iron
2crank2Cr13
3connecting rod2Cr13
4cylinder sleeve2Cr13
5piston2Cr13
6stem2Cr13


LT342X Piston Type Flow and Pressure Regulating Valvetechnology parameter

Performance Specification Sheet

Performance Specification Sheet
Nominal Pressure1.01.6MPa
Strength test pressure1.52.4
Sealing test pressure1.11.76
Applicable Temperature≤80



LT342X Piston Type Flow and Pressure Regulating Valvestandard size

Standard requirements for external dimensions

1. The structural length of the valve shall comply with the standard of GB/T12221

2. Connecting flanges according to GB/T17241.6 standard

LT342X Piston Type Flow and Pressure Regulating Valve Outline Diagram


Outline dimension table

Nominal Diameter(DN)Key Dimensions(mm)
LdKDn×LHH1H2WW1
30050037040044512×23500320270225610
40080048051556516×28550405360300720
500100058262067020×28600480420365800
600115068272578020×31650545490430850
700140079484089524×317006505805001000
8001600901950101524×347507156405651050
1000180011121160123028×378508907907801250
1200180013281380145532×4090010509509101350
1400220015301590167536×4310001150105010201650
1600320017501820191540×4910501300117011501950
1800360019502020211544×4911001500130013002300
2000400021502230232548×4912001750150015002700
