Z641W Pneumatic Flanged Gate Valve

Z641W Pneumatic Flanged Gate Valve

  • Model:Z641W-16C/Z641W-25C/Z641W-40C/Z641W-64C/Z641W-16P/Z641W-25P/Z641W-40P/Z641W-64P/Z641W-16R/Z641W-25R/Z641W-40R/Z641W-64R
  • Specification:DN50-DN600
  • Temperature:≤ 80 ℃
  • Medium:Water, oils, steam, gases, and corrosive media.
  • Pressure:PN10~PN16
  • Connection method:flange
  • Driving method:pneumatic
  • Material:Cast steel, stainless steel
x

Add QR code to serve you!

x

Add QR code to serve you!

x

Add QR code to serve you!

x
Z641W Pneumatic Flanged Gate ValveOverview

Z641W pneumatic gate valve is a rising stem wedge gate valve driven by pneumatic actuator and connected by flange. It drives the cylinder piston or diaphragm through compressed air, which drives the valve stem to rise and fall, causing the wedge gate to move vertically and achieve the opening and closing of the pipeline. The valve body is made of stainless steel or carbon steel, and the sealing surface is directly machined from the valve body material ("W" shape), forming a hard metal to metal seal. This valve integrates a manual operating mechanism, which can perform emergency operations in case of gas supply interruption. It is designed specifically for automated process control, remote operation, and frequent opening and closing situations, and is an ideal execution unit for intelligent management in industrial pipeline systems. Widely used in automation control systems for petrochemical, power, metallurgy, water treatment, food and pharmaceutical, and general industrial pipelines, as a key cutoff device for remote operation, frequent opening and closing, or process interlocking control. Especially suitable for situations that require centralized monitoring, unmanned operation, or remote operation in hazardous environments.

Z641W Pneumatic Flanged Gate Valve Product Drawing

Z641W Pneumatic Flanged Gate ValveCharacteristic

1. Pneumatic drive, automated control

Equipped with single acting or double acting cylinder actuators, powered by compressed air, capable of receiving electrical signals from DCS/PLC systems (converted through solenoid valves), achieving remote centralized control and automated operation of valves.

2. Clear stem structure, intuitive valve position

The valve stem rises and falls with the gate, and the valve opening can be directly determined by observing the height of the valve stem extension, which is convenient for on-site inspection and debugging.

3. Valve body sealing surface ("W" type)

The sealing surface is directly processed from valve body materials such as stainless steel and carbon steel, which is economical, practical, wear-resistant, and suitable for conventional media such as water, oil, and gas.

4. Flange connection, stable and reliable

Using standard flange connections (such as RF flanges), the connection strength is high, the sealing performance is good, and it is easy to install and disassemble.

5. Manual emergency operation

The top of the actuator is equipped with a handwheel or square head, which can be manually operated in case of gas supply interruption or debugging, ensuring that the system is controllable in any situation.

6. Optional attachments and expanded functionality

Accessories such as solenoid valves, limit switches (feedback devices), locators, and filter pressure reducing valves can be installed to achieve switch signal feedback, precise adjustment, and air source processing.

Z641W Pneumatic Flanged Gate Valvestructure principle

Z641W Pneumatic Flanged Gate Valve - Structural Drawing

Part name and material list

阀体/阀盖valve coverZGICr18Ni9TiZG00Cr18Ni10ZG1Cr18Ni12M02TiZG00Cr17Ni14M02WCB
零件名称part nameZGICr18Ni9Tit系列ZG00Cr18Ni10系列ZG1Cr18Ni12M02Ti系列ZG00Cr17Ni14M02系列WCB系列
闸板plateZGICr18Ni9TiZG00Cr18Ni10ZG1Cr18Ni12M02TiZG00Cr17Ni14M021Cr13
阀杆stem1Cr18Ni9Ti00Cr18Ni101Cr18Ni12M02Ti00Cr17Ni14M021Cr13
填料filiingPTFE编织WovenPTFE编织WovenPTFE编织WovenPTFE编织Woven石墨Graphite
垫片Gasket304L+PTFE304L+PTFE316+PTFE316L+PTFE石墨Graphite
压盖GlandZGICr18Ni9TiZG00Cr18Ni10ZG1Cr18Ni12M02TiZG00Cr17Ni14M02系列seriesWCB
填料压环Filler Pressure Ring1Cr18Ni9Ti00Cr18Ni101Cr18Ni12M02Ti00Cr17Ni14M021Cr13
螺栓Bolt1Cr17Ni21Cr17Ni21Cr17Ni21Cr17Ni235CrMoA
螺母nut1Cr18Ni9Ti1Cr18Ni9Ti1Cr18Ni9Ti1Cr18Ni9Ti45


Z641W Pneumatic Flanged Gate Valvetechnology parameter

Performance Specification Sheet

性能规范表 Performance Specification Sheet
公称压力Nominal pressure6.4MPa
强度试验压力Strength test pressure9.6
密封试验压力Seal test pressure7.04
适用温度Applicable temperature≤80


Z641W Pneumatic Flanged Gate Valvestandard size

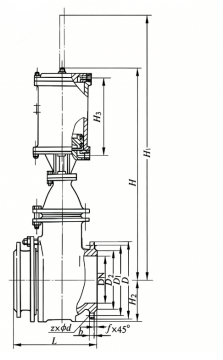

Z641W Pneumatic Flanged Gate Valve - Outline Drawing


Outline Dimension Table

Main dimensions and connection specifications for 1.6MPa:

尺寸sizeDN1520253240506580100125150200250300350400450500600
Lmm130150160180200250265280300325350400450500550600650700800
Hmm1751802102102503503734335006146748181225141516301780205021812599
Tmm180180200200200240240280320360360400450500500600720720720

Main dimensions and connection specifications for 1.6MPa:

尺寸SizeDN1520253240506580100125150200250300350400450500600
Lmm130150160180200250265280300325350400450500550600650700800
Hmm1751802102102503503734335006146748181225141516301780205021812599
Tmm180180200200200240240280320360360400450500500600720720720

Main dimensions and connection specifications for 1.6MPa:

尺寸sizeDN1520253240506580100125150200250300350400
Lmm130150160180200250280310350400450550650750850950
Hmm1751802102102503503734335006146748181225141516301780
Tmm180180200200200240240280320360360400450500500600

Main dimensions and connection specifications for 1.6MPa:

尺寸sizeDN1520253240506580100125150200250300350400
Lmm170190210230240250280320350400450550650750850950
Hmm175180210230350359373433500614674818970114512801430
Tmm120120140160200240280320360400400450560640800800

Main dimensions and connection specifications for 1.6MPa:

尺寸sizeDN1520253240506580100125150200250300350400
Lmm170190210230240250280320350400450550650750850950
Hmm175180210230350359373433500614674818970114512801430
Tmm120120160180240280320360400400450560640640800800


Main dimensions and connection specifications for 1.6MPa:

尺寸sizeDN1520253240506580100125150200250300350400
Lmm170190210230240250280320350400450550650750850950
Hmm175180210230350359373433500614674818970114512801430
Tmm120120140160200240280320360400400450560640640800
