Features

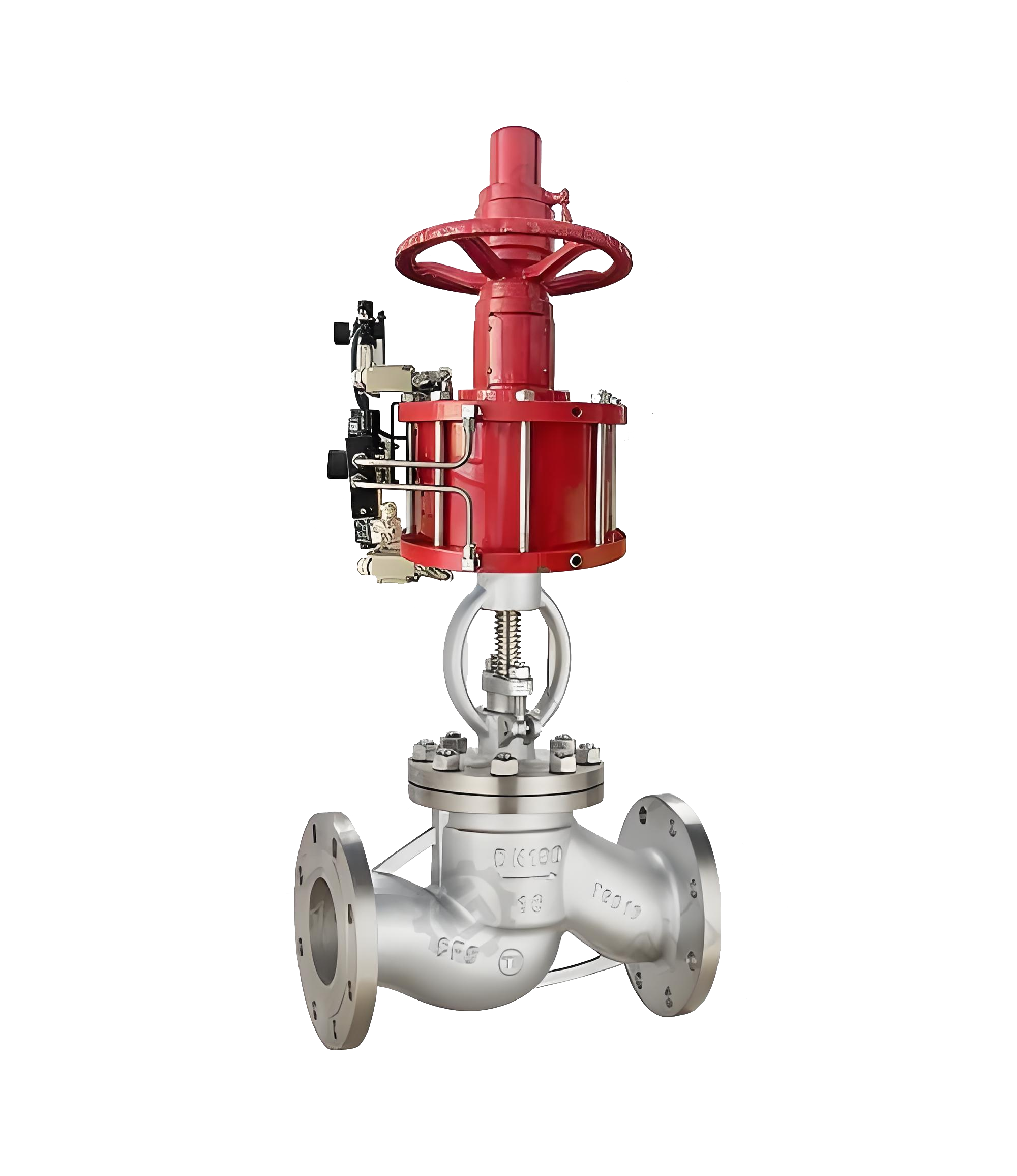

1、High Sealing Reliability: Utilizes a metal-to-metal hard seal structure. The sealing surfaces of the disc and seat are typically hardfaced with cemented carbide and precision-lapped. Under the high thrust of the pneumatic actuator, a tight metal-to-metal line seal is achieved. It offers high sealing performance, suitable for demanding applications involving high temperatures, high pressures, and requiring zero leakage.
2、Smooth Operation, Precise Regulation: During opening and closing, the disc moves in a precise vertical linear motion without binding. Combined with precise control from the pneumatic actuator (which can be equipped with accessories like positioners), it enables accurate flow regulation and stable, reliable on/off positioning, particularly suitable for automated systems requiring process control.
3、High Temperature, High Pressure, and Erosion Resistance: The robust rigid structure, high-temperature resistant metal body, and hardfaced alloy sealing surfaces enable the valve to withstand high system pressures and temperatures. It also offers good resistance to erosion and wear from steam, high-velocity fluids, and media containing small particles.
4、Higher Fluid Resistance: Due to the non-straight flow path inside the valve cavity, the medium must change direction (forming an "S" shape). Consequently, the flow resistance coefficient is higher, and the pressure loss in the fully open state is greater than that of gate valves or ball valves of the same size.
5、Longer Face-to-Face Dimensions: Compared to butterfly valves or ball valves, globe valves have a greater structural height, longer face-to-face dimensions, larger volume and weight, imposing certain requirements on installation space.
6、Automated and Efficient Drive Mode: Driven by a pneumatic actuator using compressed air as the power source. It offers fast response speed, enabling remote centralized control, rapid opening/closing, or emergency shut-off, making it a key equipment for industrial automated pipeline control.
