Features
1、High-Performance Forged Body Structure: The valve body is manufactured using an integral forging process and made of high-quality carbon steel, alloy steel, or stainless steel. This eliminates casting defects, significantly enhances the density and strength of the body, and ensures long-term stable operation under high pressure, high temperature, and harsh working conditions, completely avoiding the risk of pressure-containing part failure.
2、Trunnion-Mounted Ball Design for Low Operating Torque: The trunnion-mounted ball design features the ball supported and positioned by upper and lower stem bearings. This effectively withstands the substantial thrust generated by media pressure, reduces valve operating torque, and ensures smooth, flexible, and reliable opening and closing under large-diameter and high differential pressure conditions.
3、Hard Seal Design for Wear and Erosion Resistance: The sealing pair utilizes a metal-to-metal hard seal structure. The sealing surfaces of the seat and ball are hardfaced with wear-resistant alloys (such as Stellite, 13Cr, etc.) and precision-lapped. This results in high surface hardness, excellent wear resistance, superior erosion resistance, and the ability to withstand harsh conditions involving high temperature, high differential pressure, and particulate media.
4、Double Seat and Automatic Cavity Overpressure Relief: The valve features a bidirectional sealing double seat design and incorporates an automatic cavity overpressure relief structure. If pressure abnormally builds up in the body cavity, it is automatically relieved to the upstream or downstream side, ensuring operational safety under abnormal conditions and preventing valve body damage from overpressure.
5、Standard Flange Connection: The valve adopts standard flange connections (such as RF, RTJ, etc.), fastened to the pipeline flange with bolts. This provides high connection strength, excellent sealing performance, and ease of installation and disassembly. The robust and reliable flanged connection structure is suitable for large-diameter, high-pressure, and critical industrial pipeline systems.
6、Low Flow Resistance Full Bore Design: The valve body features a full bore design, resulting in a short and smooth flow path for the medium, effectively reducing fluid resistance loss and pressure drop. The smooth transition of the flow path avoids eddy currents and media retention, making it suitable for various industrial media such as crude oil, natural gas, and high-temperature steam.
7、Widely Applicable Operating Conditions: The product design covers pressure classes from 150LB-1500LB and a wide temperature range, meeting the pipeline control requirements of diverse industries such as oil and gas extraction and transmission, refining units, power generation, and metallurgy.

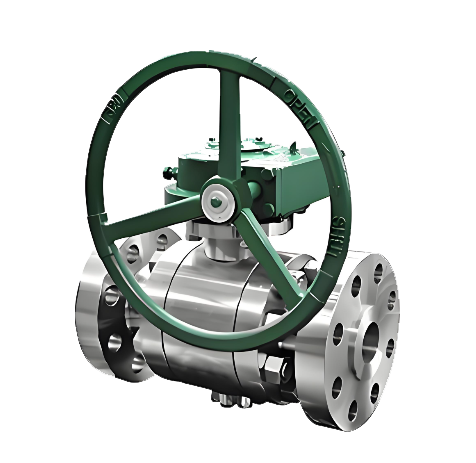

8、Versatile Operation Modes and Configurations: Various drive modes are available, including worm gear, pneumatic actuator, or electric actuator, providing flexible and convenient operation. Worm gear drives are suitable for high torque and large diameter valves. Pneumatic and electric actuators meet the requirements for remote control and automation systems. The valve has no installation direction restrictions and can be installed horizontally or vertically, adapting to different piping layout requirements.
