Features

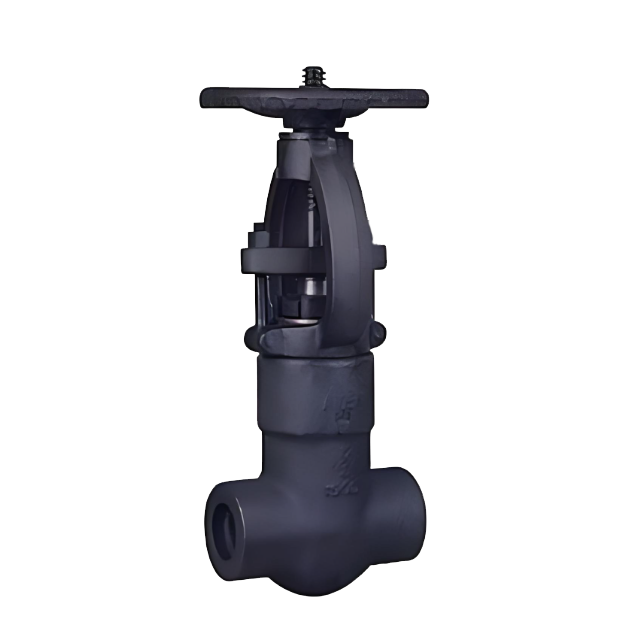

1、Forged Steel Body, Excellent Strength: The valve body is forged from high-quality forged steel (such as A105, F22, F304, F316), resulting in a dense structure, free from casting defects, with high mechanical strength and excellent impact resistance. It is suitable for high-pressure and fatigue-prone operating conditions.
2、Welded Connection, Absolute Seal: Equipped with standard welding bevels on both ends for direct butt welding to the pipeline. This eliminates the risk of leakage associated with flange gaskets, provides high connection strength, and enables the valve to withstand high temperatures, high pressures, and thermal cycling stresses.
3、Hard Alloy Sealing ("Y" Type): The sealing surfaces of the disc and seat are overlaid with high-hardness alloys like Stellite. These surfaces exhibit high hardness, wear resistance, high-temperature resistance, and erosion resistance, ensuring excellent sealing performance and a long service life.
4、Outside Screw and Yoke (OS&Y) Structure, Intuitive Position Indication: The stem rises and falls with the gate. The valve opening position can be directly determined by observing the extension height of the stem, facilitating operation and maintenance.
5、Full Bore Design, Low Flow Resistance: The full bore flow path ensures minimal resistance to media flow and low pressure loss, making it suitable for systems with strict requirements for pressure drop.
6、Suitable for Extreme Operating Conditions: The overall structure and material selection make it suitable for high working pressures and temperatures, providing stable and reliable performance.
