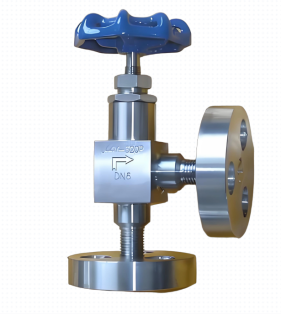

The J44W angle-type flange needle valve is a small-bore instrument valve featuring an angle-style body and flange connections, operated by rotating the handwheel to drive the stem and needle-type disc for precise opening and closing. Its sealing surface is directly machined from the valve body material (“W” type), forming a metal-to-metal hard seal. The angle-style design changes the flow direction by 90°, effectively saving installation space and reducing pressure loss. This valve is primarily used for root isolation of pressure gauges and transmitters, pipeline sampling, flow regulation, and draining/venting. It serves as a critical instrument accessory in industries such as petroleum, chemical, power generation, and pharmaceuticals, ensuring safe isolation and precise control of measurement systems.

                                                                            Product Drawingof J44W Angle Flanged Needle Valve

1.Angle-style structure for space saving: The 90° flow direction change suits space-limited installations or applications requiring pipeline direction changes, offering a compact design.

2.Flange connection for stability and reliability: Standard flange connection offers high strength and reliable sealing, suitable for medium to high-pressure and vibrating applications.

3.Needle-type disc for precise regulation: The needle disc cooperates with the seat to enable precise adjustment and control of small flow rates with excellent regulation performance.

4.Metal-to-metal hard seal for reliability: Sealing surfaces are directly machined from stainless steel, forming a wear-resistant metal-to-metal hard seal with long service life.

5.All-stainless steel corrosion resistance: Body and main components are made of 304/316 stainless steel, providing excellent corrosion resistance for various corrosive media.

6.High-pressure design: Robust body structure withstands high working pressures, suitable for high-pressure applications.

7.Reliable stem sealing: Multi-layer packing or PTFE sealing with gland prevents external leakage.

8.Easy installation and maintenance: Flange connection facilitates disassembly and maintenance, suitable for applications requiring frequent inspection.

                                                              Structure Diagramof J44W Angle Flanged Needle Valve

Component name and material

Performance Specification Sheet

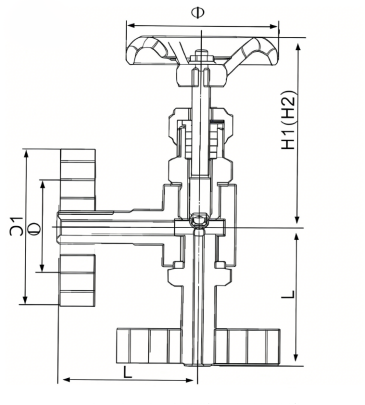

J44W Angle Flanged Needle Valve Outline Drawing

Outline dimension table
