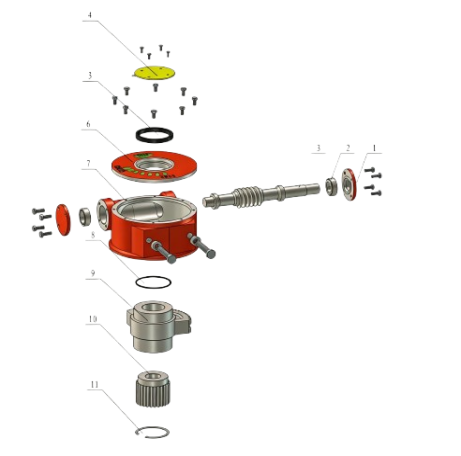

1.High-Efficiency, High-Capacity Worm Gear Set : Made of premium ZCuSn10P1 tin bronze for the wheel and 40Cr case-hardened ground worm, the gear set offers significantly improved transmission efficiency, strong resistance to pitting and scoring, and extended service life.

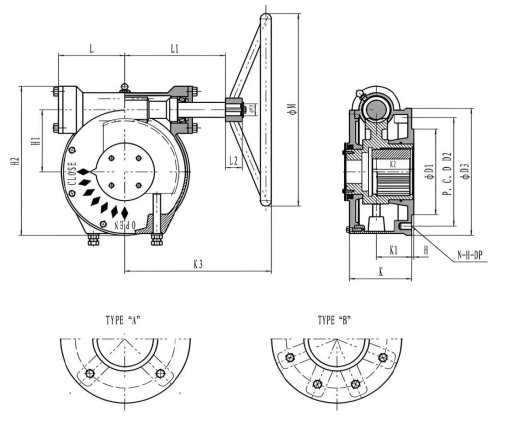

2.Compact Modular Housing Design : The housing is topologically optimized for rigidity while keeping a small footprint. Input/output interfaces conform to international standards, allowing quick adaptation to IEC motors, servo motors, or handwheels – greatly simplifying selection and installation.
3.Reliable Back-Self-Locking Function : Leveraging the inherent friction angle characteristics of a single-stage worm drive, the unit provides natural back-self-locking at appropriate reduction ratios, effectively preventing reverse rotation of the load — ideal for lifting mechanisms, rotary tables, and valve actuators.
4.Low Noise & Low Backlash Option : Thanks to precision gear grinding and preload adjustment, standard backlash is controlled within 3–5 arc-minutes; ultra-high precision grade (<1 arc-minute) is available upon request, meeting servo positioning and silent operation requirements.
5.Multi-Seal & Long-Life Lubrication : Double-lipped oil seals or FKM seals are applied at input/output shafts, combined with integrated housing gaskets, achieving up to IP65 protection. Pre-filled with synthetic grease for life-long maintenance-free operation.
6.Wide Mounting Orientation Flexibility : Supports six mounting arrangements (M1 to M6), including foot, flange, torque arm, etc., adaptable to horizontal, vertical, or tilted installation angles — suitable for diverse and demanding spatial layouts.
