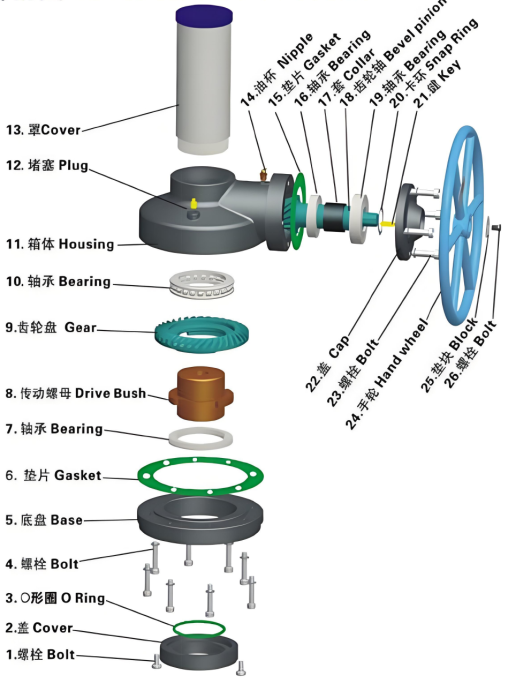

1. High-Capacity Spiral Bevel Gear Set : Gleason-type equal-height teeth. Material: 20CrMnTi, case-hardened to HRC58-62, ground to grade 5-6 accuracy with computer-optimized contact patterns. Load capacity is more than 40% higher than straight bevel gears.
2. Wide Ratio Range & Broad Torque Coverage : Reduction ratio covers 2.3:1 to 7.1:1. Rated output torque from 220 N·m to 6,800 N·m – suitable for various equipment from light-duty conveyors to medium-heavy mixers and hoists.
3. High Efficiency & Extended Fatigue Life : Transmission efficiency ≥94% (depending on ratio and lubrication). Gear teeth are shot-peened and specially phosphated, increasing contact fatigue life by more than 100% with a design life of at least 20,000 hours.
4. Multiple Shaft Arrangements & Mounting Styles : Input and output shafts at 90°. Supports M1 to M6 mounting orientations to fit complex spatial layouts. Available in single-input/single-output or single-input/dual-output configurations.
5. Heavy-Duty Bearings & Reinforced Housing : Tapered roller or spherical roller bearings are selected according to torque rating. The housing features optimized wall thickness and ribs, providing excellent torsional stiffness and impact resistance.
6. Reliable Sealing & Lubrication : Standard double-lipped FKM oil seals with labyrinth dust protection achieve IP65. Forced lubrication station is optional for high-torque models. Pre-filled with synthetic extreme-pressure gear oil (ISO VG220 to 460, depending on torque rating).
