Application

The Model F745X Remote Control Float Valve produced by our company is mainly installed in the water inlet pipelines of various water tanks and water towers in industrial enterprises and civil buildings. It automatically closes when the water tank reaches the preset water level and opens automatically to replenish water when the water level drops.

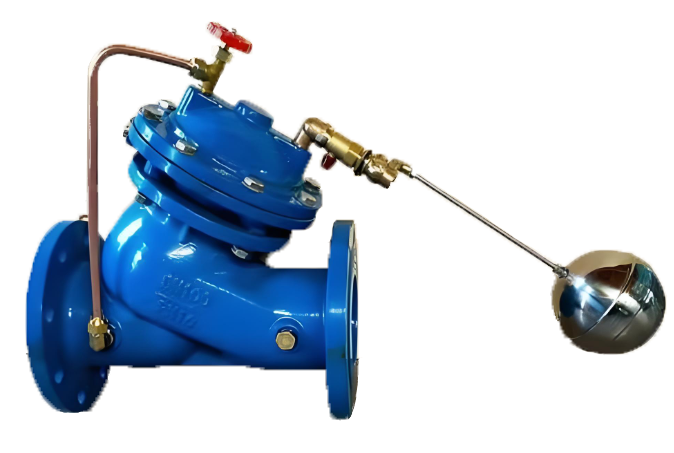

F745X remote control float ball valve product diagram

Features

1.Tight and reliable closure: Equipped with a robust rubber sealing ring, it adopts the hydraulic control principle, making the sliding plate closing force proportional to the water pressure for high sealing reliability.

2.Large flow capacity: The valve body features a full-channel streamlined design, ensuring low fluid resistance and large flow rate.

3.Easy operation and maintenance: The main valve is installed outside the water tank, enabling convenient commissioning, inspection and simple maintenance.

Working Principle

The main valve is installed outside the water tank, and the float pilot valve is installed inside. When the liquid level drops, the float pilot valve opens, the upper control chamber loses pressure, and the main valve opens to supply water into the tank. When the rising liquid level closes the float pilot valve, the pressure in the upper control chamber increases, and the main valve closes to stop water supply to the tank.

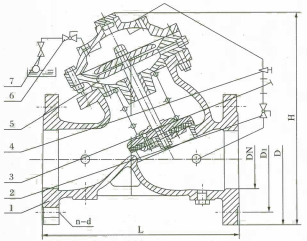

F745X Remote Control Float Valve Structure Diagram

Components and Materials List

Main Technical Parameters

F745X Remote Control Float Ball Valve Outline Dimensional Drawing

F745X Remote Control Float Ball Valve Dimensions Table
