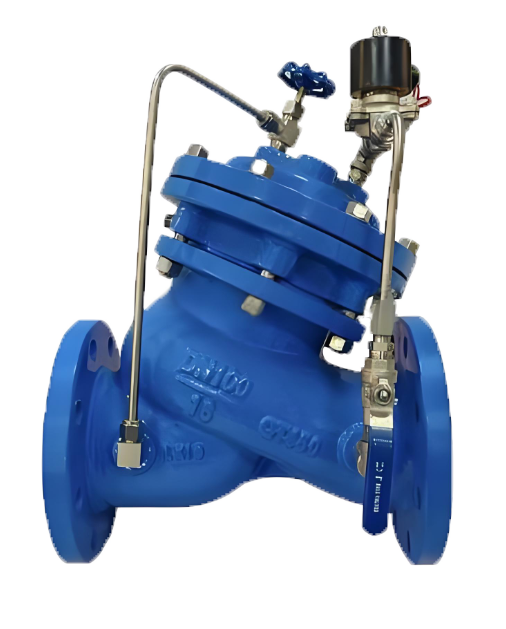

Working Principle
Through pressure transmission via the hydraulic conduit, the main valve slide plate (valve disc) mimics the action of the pilot valve. When the electrical signal is an opening command, the solenoid valve opens to release the pressure water above the diaphragm, and the main valve opens. When the electrical signal is a closing command, the solenoid pilot valve closes, and the upstream pressure acts on the top of the diaphragm to close the main valve.

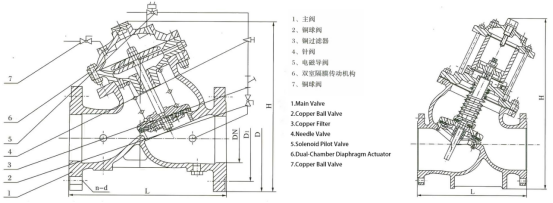

Structure diagram of J145X electric remote control valve
Parts Material List
| 编号 | 零件名称 | 材 质 | | Serial Number | Part Name | Material |
| 1 | 主阀 | 铸铁、不锈钢 | 1 | Main Valve | Cast Iron, Stainless Steel |
| 2 | 球阀 | 铜 | 2 | Ball Valve | Copper |
| 3 | 过滤器 | 铜 | 3 | Filter | Copper |
| 4 | 针阀 | 铜 | 4 | Needle Valve | Copper |
| 5 | 电磁导阀 | 铜 | 5 | Solenoid Pilot Valve | Copper |
| 6 | 双室隔膜传动机构 | 铜、不锈钢 | 6 | Dual-Chamber Diaphragm Actuator | Copper, Stainless Steel |
| 7 | 球阀 | 铜 | 7 | Ball Valve | Copper |
