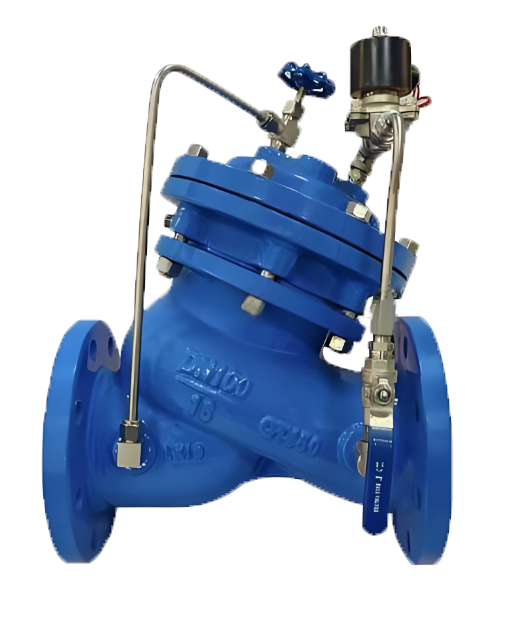

PurposeThe multifunctional water pump control valve is mainly installed on the outlet pipeline of water pumps in high-rise building water supply systems and other water supply systems. It prevents medium backflow, water hammer, and water hammering phenomena. The valve integrates the functions of an electric valve, check valve, and water hammer arrester, effectively improving the safety and reliability of the water supply system. It meets the requirements of mechanization and automation for water supply engineering equipment.Product diagram of JD745X multifunctional water pump control valve

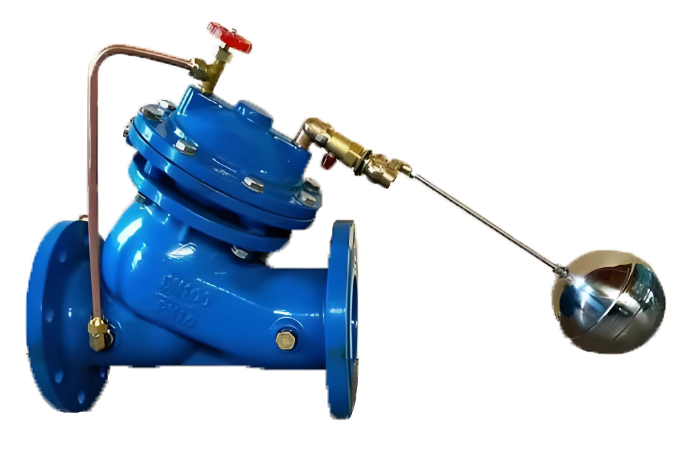

ApplicationThe Model F745X Remote Control Float Valve produced by our company is mainly installed in the water inlet pipelines of various water tanks and water towers in industrial enterprises and civil buildings. It automatically closes when the water tank reaches the preset water level and opens automatically to replenish water when the water level drops.F745X remote control float ball valve product diagram

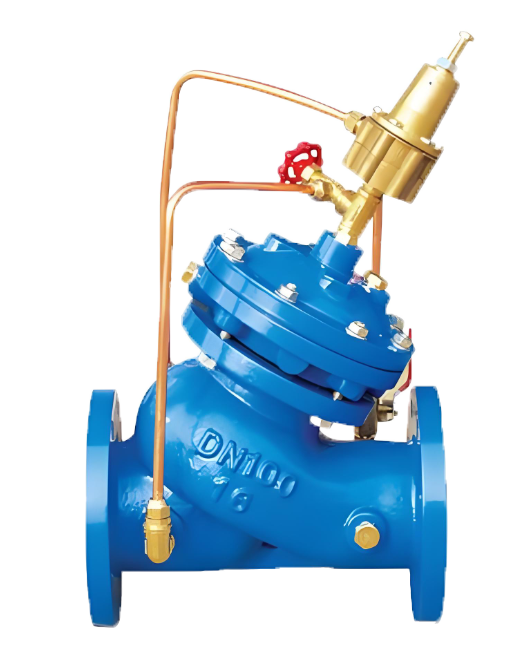

Application The AX742X Safety Relief/Pressure Retaining Valve produced by our company is mainly installed in the pipelines of high-rise buildings, fire water supply systems and other water supply systems. When the pressure in the water supply pipeline exceeds the set pressure of the relief valve, the relief valve automatically opens to release pressure quickly, protecting the safety of the pipeline. It can also be used as a pressure retaining valve to ensure the water supply pressure upstream of the main valve.AX742X Safety Relief/Holding Valve Product Diagram

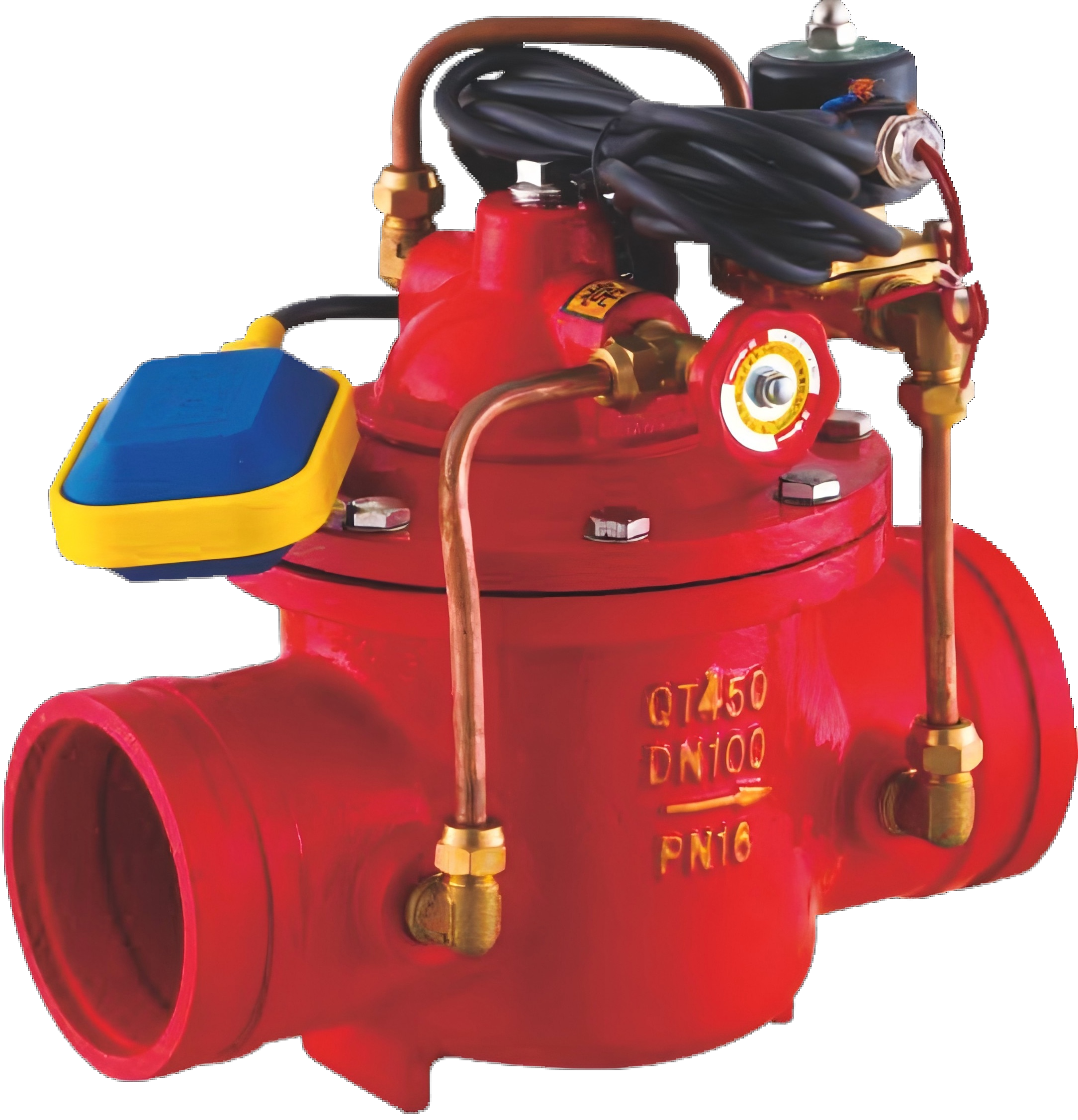

ApplicationThe J145X Electric Remote Control Valve produced by our company is mainly used to be installed in the pipelines of high-rise building water supply systems and other water supply systems. It opens or closes the valve according to electrical signals or manual operation, and can replace large-scale electric devices used to open and close gate valves or butterfly valves.J145X Electric Remote Control Valve Product Diagram

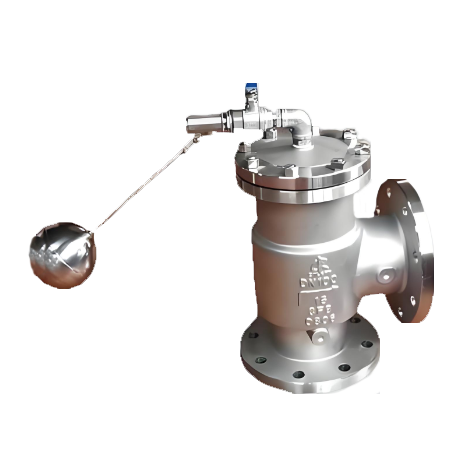

Product IntroductionThe H142X hydraulic water level control valve product is suitable for automatic water supply systems of various water tanks, water pools, and water towers in industrial and mining enterprises and civil buildings, and can be used as a circulating water control valve for atmospheric boilers.H142X Hydraulic Water Level Control Valve Product Diagram

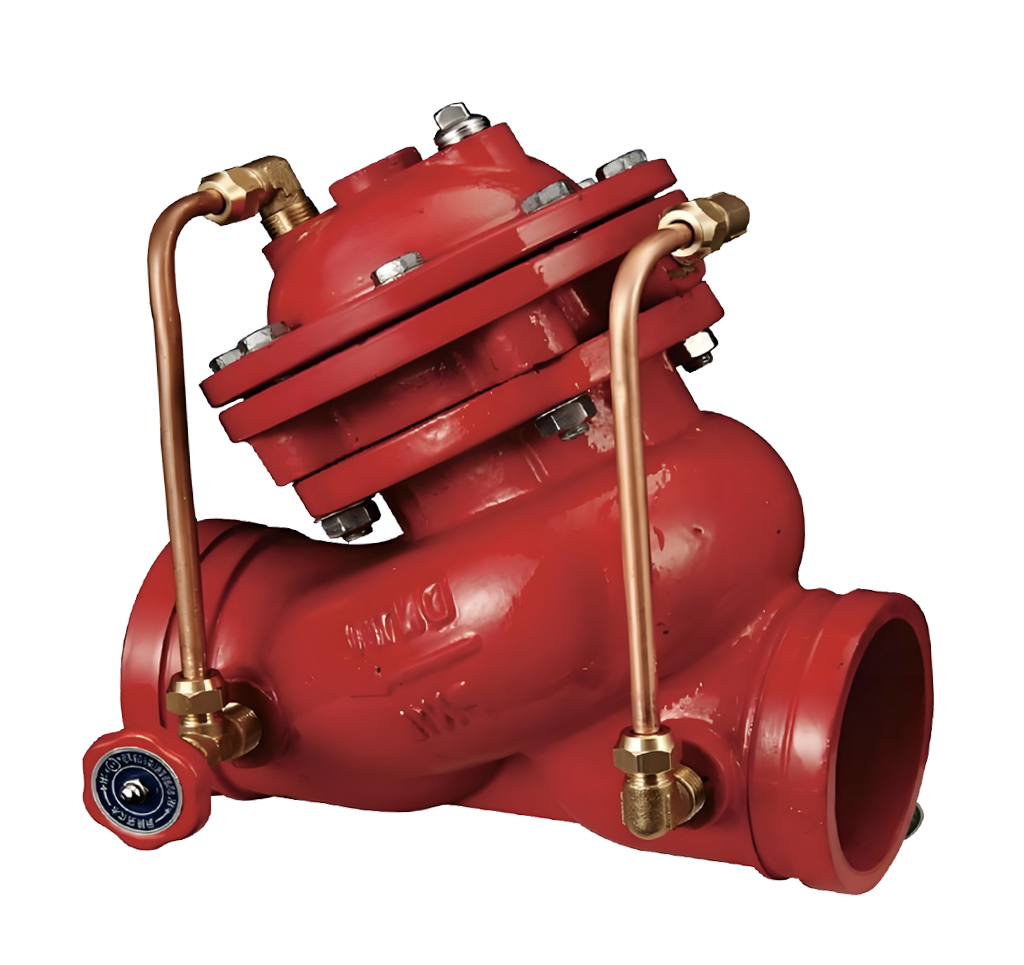

OverviewThe F8745X groove fire pump control valve is a specialized control valve developed by our factory in accordance with national fire safety regulations and combined with the high reliability requirements of modern fire protection systems. This valve integrates multiple fire core functions such as hydraulic automatic control, slow start and fast stop of water pumps, anti backflow and water hammer elimination, emergency linkage control, etc. It is designed specifically for the safety guarantee of the outlet pipeline of fire pump groups. The valve adopts a groove type connection, which is easy and efficient to install. At the same time, a mature piston type hydraulic control structure is used, and an adjustable hydraulic damping device is built-in to achieve smooth and gradual opening of the water pump during startup and rapid segmented closing during emergency shutdown. It effectively absorbs and eliminates the high-pressure water hammer impact unique to the fire protection system, protecting the safety of the water pump and pipeline network. This valve does not require external power drive and relies entirely on system water pressure for intelligent control. It responds quickly and operates reliably, making it particularly suitable for key fire water supply pipelines such as fire hydrant systems, automatic sprinkler systems, and fire stabilization systems. This product has outstanding advantages such as sturdy structure, sensitive action, easy maintenance, and compliance with fire certification. It is the core control equipment that ensures the reliable standby state of the fire water supply system at all times. Welcome to consult and purchase.F8745X groove fire pump control valve product diagram

The 700X series pump control valve is an intelligent multi-functional control device installed on the discharge piping of pumps in high-rise building water supply systems and other municipal water networks. It is designed to prevent medium backflow, water hammer, and hydraulic shock. Integrating the functions of a gate valve, a check valve, and a water hammer arrestor into a single unit, it ensures safe system operation through hydraulic automatic control logic. The core operating principle utilizes the pilot piping and pilot valve system to automatically adjust the opening and closing speeds of the main disc based on fluctuations in pump pressure. During pump startup, the valve opens slowly to reduce starting current and initial surge; during shutdown, it closes quickly to cut off the majority of return flow and then slowly to eliminate remaining pressure impacts. The 700X series significantly enhances water system reliability while simplifying piping configurations.Product Image of 700X Pump Control Valve
