CBM1088 JIS Angle Stop-Check Valve
More API, JIS, DIN, GOST check valves>>
More check valve>>
More valve>>

Phone：+86（577）6730 7899
Mobile：+86 189 6779 6135
Fax：+86（577）6738 7099
Email：Yannie@kaiweixi.com
Address：No. 1, Linxia Road, Sanqiao Industrial Zone, Oubei Street, Yongjia County, Zhejiang Province，china
Website：https://www.kaiweixi.com

Other valve products you may need

API Check Valve
H64Y Self-Sealing Power Plant Check Valve
H61Y Forged Steel Y-Type Check Valve
DIN Swing Check Valve
DIN Lift Check Valve

CBM1088 JIS Angle Stop-Check Valve

Model：CBM1088-10T/CBM1088-16T/CBM1088-25T/CBM1088-40T/CBM1088-60T/CBM1088-10C/CBM1088-16C/CBM1088-25C/CBM1088-40C/CBM1088-64C/CBM1088-100C
Specification：15A-200A
Temperature：≤650℃
Medium：Water, Oil, Steam

Pressure：10K-500K
Connection method：Flange
Driving method：Handwheel, Pneumatic, Hydraulic, Electric
Material：Copper, Cast Iron

Consult now

Add QR code to serve you!

CBM1088 JIS Angle Stop-Check ValveOverview

CBM1088 JIS Angle Stop-Check Valve Overview

The CBM1088 JIS Angle Stop-Check Valve is a specially designed combination valve compliant with Japanese Industrial Standards (JIS), featuring an angled flow path configuration. The valve body is typically constructed from cast steel or stainless steel, with the inlet and outlet arranged at a 90-degree angle. This valve integrates dual functions: manual shut-off control and automatic check backflow prevention.Through handwheel rotation, the valve disc is actuated to achieve flow shut-off control, while the built-in check mechanism automatically prevents reverse flow when the valve is in the open position. Designed in strict accordance with JIS standards, this valve is specifically intended for marine piping systems, Japanese industrial equipment, and specialized pipeline layouts requiring right-angle flow direction changes. It provides comprehensive functionality—including flow redirection, flow shut-off, and backflow protection—within confined spatial constraints.

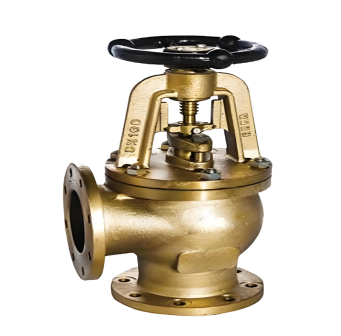

CBM1088 JIS Angle Stop-Check Valve Product Image

CBM1088 JIS Angle Stop-Check ValveCharacteristic

CBM1088 JIS Angle Stop-Check Valve Features

1. 90° Flow Path with Dual-Function Integration

The 90° angled design eliminates the need for additional pipe elbows, simplifying pipeline layout. It integrates manual shut-off and automatic check functions into a single valve, enabling multi-functional control within compact spaces.

2. Strict Compliance with JIS Standards

The design and manufacturing fully comply with JIS B2003 and related standards, ensuring compatibility with Japanese-standard marine and industrial systems in terms of pressure ratings, connection dimensions, and material requirements.

3. Dual Sealing for Reliable Control

The shut-off section features a metal-sealed spiral lifting mechanism, providing smooth operation and reliable sealing. The check section responds automatically to flow direction, ensuring quick and tight closure.

4. Space-Saving Optimized Layout

The angled design reduces the need for pipe turning fittings, while the integrated functionality avoids the installation of multiple valves, significantly optimizing equipment space utilization and pipeline complexity.

5. Marine-Oriented Ease of Maintenance Designed specifically for confined environments such as ship engine rooms, this valve is structurally robust and vibration-resistant. The shut-off disc and check disc can be inspected and serviced separately, meeting marine equipment maintenance requirements.

CBM1088 JIS Angle Stop-Check Valvestructure principle

CBM1088 JIS Angle Stop-Check Valve Structure Diagram

Parts Name Material List

NO.	Name	Material
3	stem	Copper, Cast Iron, Carbon Steel
2	disc	Copper, Cast Iron, Carbon Steel
1	body	Copper, Cast Iron, Carbon Steel

CBM1088 JIS Angle Stop-Check Valvetechnology parameter

性能规范表Performance Specification
公称压力Nominal Pressure	10k-500k	Mpa
强度试验压力Shell Test	1.5-75
密封试验压力Seal Test	1.1-55
适用温度Suitable Temp.	≤650	℃

CBM1088 JIS Angle Stop-Check Valvestandard size

Dimensions Standard Requirements

1. The structural length of the valve shall conform to the standard JIS B2002.

2. The connecting flange shall conform to the standard JIS B2210.

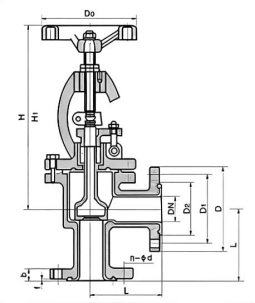

CBM1088 JIS Angle Stop-Check Valve View Drawing

CBM1088 JIS Angle Stop-Check Valve Dimensions Table

Angle Stop-Check Valve 16K:

DN	in	L	D	D1	D2	f	b	z-φd	Do	H1	H2	W
15A	1/2	65/90	95	65	45	2	14	4-φ14	100	240	265	7
20A	3/4	75/95	105	75	55	2	16	4-φ14	100	245	270	7.5
25A	1	80/100	115	85	65	2	16	4-φ14	120	250	275	8.5
32A	2 1/4	95/105	135	100	78	2	18	4-φ18	140	260	290	12
40A	2 1/2	100/115	145	110	85	2	18	4-φ18	140	290	325	14
50A	2	115/125	160	125	100	2	20	4-φ18	160	300	335	19
65A	2 1/2	145	180	145	120	2	20	4-φ18	180	355	400	27
80A	3	155	195	160	135	2	22	4-φ18	240	400	450	42
100A	4	175	215	180	155	2	24	8-φ18	240	455	495	50
125A	5	200	245	210	185	2	26	8-φ18	280	530	560	64
150A	6	240/225	280	240	210	2	28	8-φ23	320	605	650	85
200A	8	275	335	295	265	2	30	8-φ23	360	650	770	155

Angle Stop-Check Valve 25K:

DN	in	L	D	D1	D2	f	b	z-φd	Do	H1	H2	W
15A	1/2	65/90	95	65	45	2	16	4-φ14	120	245	270	7.5
20A	3/4	75/95	105	75	55	2	16	4-φ14	120	250	275	8.8
25A	1	80/100	115	85	65	2	16	4-φ14	140	260	290	11
32A	2 1/4	95/105	135	100	78	2	18	4-φ18	140	290	325	13
40A	2 1/2	100/115	145	110	85	3	18	4-φ18	160	300	335	18
50A	2	115/125	160	125	100	3	20	4-φ18	180	355	400	31
65A	2 1/2	145	180	145	120	3	22	8-φ18	220	400	450	39
80A	3	155	195	160	135	3	22	8-φ18	280	450	495	50
100A	4	175	230	190	160	3	24	8-φ23	320	530	590	60
125A	5	200	270	220	188	3	28	8-φ25	380	600	650	75
150A	6	240/225	300	250	218	3	30	8-φ25	400	650	770	98
200A	8	275	360	310	278	3	34	12-φ23	450	700	850	170
