DIN Lift Check Valve

DIN Lift Check Valve

  • Model:DIN-16/DIN-25/DIN-40/DIN-16C/DIN-25C/DIN-40C/DIN-16T/DIN-25T/DIN-40T
  • Specification:DN15-DN300
  • Temperature:≤80℃
  • Medium:Water, steam, oil and similar liquids
  • Pressure:PN16,PN25,PN40
  • Connection method:Flange
  • Driving method:Handwheel, Pneumatic, Hydraulic, Electric
  • Material:stainless steel, Carbon Steel
x

Add QR code to serve you!

x

Add QR code to serve you!

x

Add QR code to serve you!

x
DIN Lift Check ValveOverview

DIN Lift Check Valve Overview

The DIN Lift Check Valve is an automatic check valve designed and manufactured in strict compliance with German Industrial Standards (DIN), featuring a vertical lift structure. The valve body is typically constructed from materials such as cast iron, cast steel, or stainless steel, with its design conforming to DIN series standards (e.g., DIN 3352). The valve opens as the forward pressure of the medium lifts the disc and automatically closes under the combined action of the disc's own weight and reverse pressure.Specifically designed for horizontal pipelines, this valve offers tight sealing and a simple structure. It is suitable for applications involving water, steam, oil, and non-corrosive industrial media. As a fundamental component in DIN-compliant pipeline systems for chemical, heating, water supply, and drainage industries, it effectively prevents medium backflow.

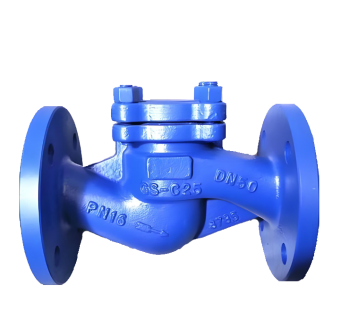

DIN Lift Check Valve Product Image

DIN Lift Check ValveCharacteristic

DIN Lift Check Valve Features

1. Strict DIN Standards Compliance

  Fully compliant with standards such as DIN EN 12266 throughout the process, ensuring complete compatibility with German-standard pipeline systems in terms of pressure ratings, face-to-face dimensions, flange connections, and material requirements.

2. Reliable Sealing with Lift Design

  Features a vertical lift disc design that ensures tight seating against the valve seat upon closure, providing excellent sealing performance and effectively preventing backflow of various media.

3. Stable Structure for Horizontal Installation

  Specifically designed for horizontal pipelines, with strict installation orientation requirements. Its simple and robust structure ensures reliable operation.

4. Low Flow Resistance and Easy Maintenance

  Offers an unobstructed flow path when fully open, resulting in minimal pressure loss. The straightforward internal structure facilitates easy inspection, cleaning, and maintenance.

5. Cost-Effective, Durable, and Highly Versatile     Provides reasonable manufacturing costs and a long service life. As a universal component in the DIN system, it simplifies procurement and replacement in European-standard projects.

DIN Lift Check Valvestructure principle

DIN Lift Check Valve Structure Diagram

Parts Name Material List

序 号NO.名称Name材料Material
3栓件Bolting Components碳钢carbon steel
2阀瓣disc碳钢Carbon Steel
1阀体body球铁、铸钢Ductile Iron, Cast Steel


DIN Lift Check Valvetechnology parameter
Performance Specification
Nominal Pressure1.6/2.5/4.0Mpa
Shell Test2.4/3.8/6
Seal Test1.8/2.8/4.4
Suitable Temp.≤350


DIN Lift Check Valvestandard size

Dimensions Standard Requirements

1. The structural length of the valve shall conform to the standard DIN 3202.

2. The connecting flange shall conform to the standard DIN 2543.

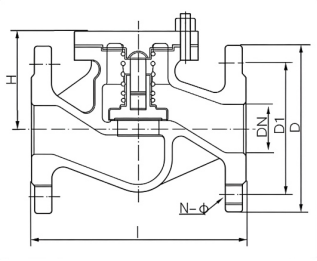

DIN Lift Check Valve View Drawing

DIN Lift Check Valve Dimensions Table

DNLHKv重量Kg
PM16PN25PN40
15130705.72.43.53.8
20150707.83.04.44.9
251608011.83.85.05.9
321808017.95.76.07.1
402008527.57.48.010.4
502309548.010.311.012.3
6529011077.615.216.022.7
80310130109.020.421.028.5
100350155168.031.032.040.0
125400165251.049.051.064.0
150480215389.069.070.090.0
200600285664.0132.0136.0170.0
2507303251017.0198.0218.0240.0
3008503651446.0278.0350.6370.0


Articles related to technology research and development
  • Slow-closing wafer check valve patent

       The utility model provides a slow-closing wafer check valve, which includes a valve body, a valve disc, a valve shaft, and a torsion spring sleeved on the valve shaft. The valve body is provided with a medium channel for medium circulation in the axial direction, which includes an inlet end and an outlet end. The valve disc, valve shaft, and torsion spring are symmetrically arranged in two groups relative to the center of the valve body. The utility model further includes a damping device located at the inlet end, which includes a cylinder inserted on the valve body, a piston rod located inside the cylinder, a spring, and a cover connected to the outer end of the cylinder. The cylinder is provided with a first cavity and a second cavity that are connected and communicated. The cross-section of the second cavity is square, and its cross-sectional area is larger than that of the first cavity. One end of the piston rod located inside the medium channel is provided with a movable block. The utility model has low noise and technical characteristics of quick opening, slow closing, and water hammer elimination, enabling light-load pump start-up and preventing the generation of water hammer during pump shutdown.

    1. A slow-closing wafer check valve, comprising a valve body, a valve disc, a valve shaft, and a torsion spring sleeved on the valve shaft. The valve body is provided with a medium passage for medium circulation in the axial direction, and the medium passage includes an inlet end and an outlet end. The valve disc, valve shaft, and torsion spring are symmetrically arranged in two groups relative to the center of the valve body. The valve also comprises a damping device located at the inlet end. The damping device includes a cylinder inserted on the valve body, a piston rod located inside the cylinder, a spring, and a cover connected to the outer end of the cylinder. The cylinder is provided with a first cavity and a second cavity that are connected and communicated. The cross-section of the second cavity is square, and the cross-sectional area of the second cavity is larger than that of the first cavity. One end of the piston rod is located inside the second cavity, and the other end penetrates through the first cavity and is located inside the medium passage. The end of the piston rod located inside the medium passage is provided with a movable block, and the end of the piston rod located inside the second cavity is provided with an external thread. The second cavity is provided with a limit plate that is adapted to and threadedly connected with the piston rod. The spring is sleeved on the piston rod, with one end abutting against the limit plate and the other end abutting against the inner wall of the second cavity. The side of the valve disc facing the piston rod is provided with a driving block that cooperates with the movable block. During the closing process of the valve disc, the side of the driving block facing the center of the valve body cooperates with the movable block to achieve displacement of the piston rod relative to the cylinder towards the center of the valve body. The damping device is symmetrically arranged in two groups relative to the center of the valve body.

    2. A slow-closing wafer check valve according to claim 1, characterized in that a square hole is axially provided at the end of the piston rod located in the second cavity, an adjuster is inserted at a position on the cover corresponding to the square hole, a driving rod adapted to the square hole is provided at the end of the adjuster, and the adjuster is rotatable relative to the cover.

    3. A slow-closing wafer check valve according to claim 2, characterized in that a limit slot is provided at the connection between the cover and the regulator, and a limit mechanism is arranged inside the limit slot. The limit mechanism comprises a ball, a tower spring connected to the ball, and a positioning column for fixing the tower spring. At least four engaging slots adapted to the ball are provided circumferentially at the connection between the regulator and the cover.

    4. A slow-closing wafer check valve according to claim 3, characterized in that the top edge of the engaging groove is provided with a rounded corner.

    5. A slow-closing wafer check valve according to claim 1, characterized in that the valve body is provided with a stepped groove adapted to the cylinder body.

    6. A slow-closing wafer check valve according to claim 5, characterized in that a sealing ring is sleeved at the connection between the cylinder and the valve body.

    7. A slow-closing wafer check valve according to claim 1, characterized in that the valve disc is provided with a build-up welding layer that is sealed with the valve body. 8. A slow-closing wafer check valve according to claim 7, characterized in that one side of the build-up welding layer is provided with vulcanized rubber that is sealed with the valve body.
