DIN Swing Check Valve

DIN Swing Check Valve

  • Model:DIN-16/DIN-25/DIN-40/DIN-16C/DIN-25C/DIN-40C/DIN-16P/DIN-25P/DIN-40P
  • Specification:DN50-DN1000
  • Temperature:≤425℃
  • Medium:Water, Oil, Steam
  • Pressure:PN16,PN25,PN40
  • Connection method: Flange
  • Driving method:Handwheel, Pneumatic, Hydraulic, Electric
  • Material:Cast Iron, Carbon Steel, Stainless Steel
x

Add QR code to serve you!

x

Add QR code to serve you!

x

Add QR code to serve you!

x
DIN Swing Check ValveOverview

DIN Swing Check Valve Overview

The DIN Swing Check Valve is an automatic check valve designed and manufactured in strict compliance with the German Industrial Standards (DIN), featuring a swing-type structure. The valve body is typically constructed from materials such as cast iron, cast steel, or stainless steel, with its design conforming to DIN series standards (e.g., DIN 3354). The valve opens as the forward flow of the medium rotates the disc around its pivot and automatically closes under the combined action of the disc's own weight and reverse pressure.This valve can be installed either horizontally or vertically, offering low flow resistance and flexible operation. It is suitable for applications involving water, steam, oil, and various industrial media. Widely used in chemical, energy, water treatment, and other industries within DIN-compliant pipeline systems, it serves as a universal standard solution for preventing medium backflow.

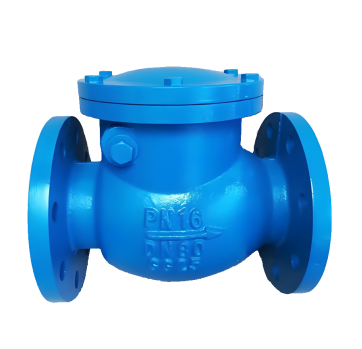

DIN Swing Check Valve Product Image

DIN Swing Check ValveCharacteristic

Features of DIN Swing Check Valve

1. Strict DIN Standards Compliance

  The entire process of design, manufacturing, and inspection follows DIN EN 12266 and other relevant standards, ensuring full compatibility with German-standard pipeline systems in terms of pressure ratings, structural dimensions, flange connections, and material requirements.

2. Low-Pressure Loss Swing Design

  When open, the disc fully swings away from the flow path, resulting in minimal fluid resistance and low-pressure loss, making it particularly suitable for systems with strict energy consumption requirements.

3. Flexible Installation and Reliable Sealing

  The valve can be installed horizontally or vertically (with medium flow direction from bottom to top), offering broad applicability. The disc and seat are precisely matched to ensure rapid and tight closure.

4. Robust Structure and Long Service Life

  The durable hinge mechanism ensures smooth disc movement, withstands certain water hammer impacts, and provides extended operational life.

5. Easy Maintenance and Strong Versatility     The simple and intuitive internal structure facilitates inspection and maintenance. As a universal component in the DIN system, it simplifies procurement and replacement in European-standard projects

DIN Swing Check Valvestructure principle

DIN Swing Check Valve Structure Diagram

Parts Name Material List

序 号NO.名称Name材料Material
3栓件Bolting Components碳钢carbon steel
2阀瓣disc碳钢Carbon Steel
1阀体body球铁、铸钢Ductile Iron, Cast Steel


DIN Swing Check Valvetechnology parameter
Performance Specification
Nominal Pressure1.6/2.5/4.0Mpa
Shell Test2.4/3.8/6
Seal Test1.8/2.8/4.4
Suitable Temp.≤350


DIN Swing Check Valvestandard size

Dimensions Standard Requirements

1. The structural length of the valve shall conform to the standard DIN EN558.

2. The connecting flange shall conform to the standard DIN1092.

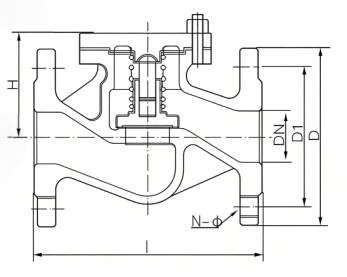

DIN Swing Check Valve View Drawing

DIN Swing Check Valve Dimensions Table

DN5065801001251502002503003504005006007008009001000
L RF/BW200240260300350400500600700800900110013001500170019002100
D165185200220250285340405460520580715840910102511251255
H150180200225270300355390445495530620730----
