DIN Ball Check Valve

DIN Ball Check Valve

  • Model:DIN-16/DIN-25/DIN-40/DIN-16C/DIN-25C/DIN-40C/DIN-16T/DIN-25T/DIN-40T
  • Specification:DN50-DN300
  • Temperature:≤80℃
  • Medium:Water and water-like media
  • Pressure:PN10,PN16
  • Connection method: Flange
  • Driving method:Handwheel, Pneumatic, Hydraulic, Electric
  • Material:Cast Iron, Carbon Steel
x

Add QR code to serve you!

x

Add QR code to serve you!

x

Add QR code to serve you!

x
DIN Ball Check ValveOverview

DIN Ball Check Valve Overview

The DIN Standard Ball Check Valve is an automatic check valve designed and manufactured in strict compliance with German Industrial Standards (DIN), utilizing a freely floating ball as the closing element. The valve body is typically constructed from materials such as carbon steel, stainless steel, or cast iron, with its structural design conforming to DIN series standards (e.g., DIN 3356). The valve opens when the forward flow of the medium pushes the ball away from the seat and automatically closes tightly through the combined action of the ball's own weight and reverse pressure.This valve features low flow resistance and sensitive opening/closing performance, and can be installed either horizontally or vertically. It is suitable for applications involving water, steam, oil, and various industrial media. Widely used in chemical, energy, water treatment, and other industries within DIN-compliant pipeline systems, it serves as a standard solution for preventing medium backflow.

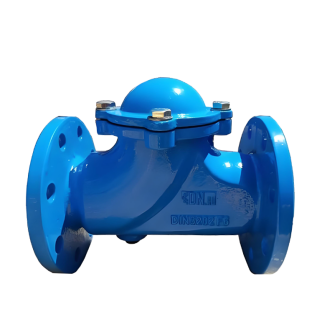

DIN Ball Check Valve Product Image

DIN Ball Check ValveCharacteristic

DIN Ball Check Valve Features

1. Strict Compliance with DIN Standards

The design, manufacturing, and inspection processes fully adhere to DIN standards (such as DIN EN 12266, DIN 3202), ensuring complete compatibility with German-standard piping systems in terms of pressure ratings, structural dimensions, flange connections, and material requirements.

2. Low-Flow-Resistance Spherical Design

The ball floats freely within the valve cavity. When open, it fully deviates from the flow path, resulting in minimal fluid resistance and low-pressure loss, making it particularly suitable for systems with stringent pressure drop requirements.

3. Reliable Bidirectional Sealing

The ball and seat employ precisely matched metal or soft-hard composite sealing. The sealing surfaces are finely ground to achieve reliable bidirectional sealing, effectively preventing medium backflow.

4. Flexible Installation and Durability

The valve can be installed horizontally or vertically (with flow direction from bottom to top), offering broad adaptability. Its simple and robust structure ensures smooth ball movement without jamming, providing a long service life.

5. Easy Maintenance and Strong Versatility

The internal structure is straightforward, allowing for quick inspection of the ball and sealing surfaces during maintenance. As a universal component in the DIN system, it facilitates procurement and replacement in European-standard projects.

DIN Ball Check Valvestructure principle

DIN Ball Check Valve Structure Diagram

Parts Name Material List

序 NO.NameMaterial
3Ball Guide, BaffleDuctile Iron, Cast Steel
2discRubber-Lined Carbon Steel
1bodyDuctile Iron, Cast Steel


DIN Ball Check Valvetechnology parameter
Performance Specification
Nominal Pressure1.0/1.6Mpa
Shell Test1.5/2.4
Seal Test1.1/1.76
Suitable Temp.≤80


DIN Ball Check Valvestandard size

Dimensions Standard Requirements

1. The structural length of the valve shall conform to the standard DIN EN 558-1.

2. The connecting flange shall conform to the standard DIN 2542-2545.

DIN Ball Check Valve View Drawing

DIN Ball Check Valve Dimensions Table

公称通径506580100125150200250300350
L(mm)216241293305381403495622698787
H(mm)185210245280335400495600715800
