JIS Stop-Check Valve

JIS Stop-Check Valve

  • Model:JIS F7375
  • Specification:50A-200A
  • Temperature:≤200℃
  • Medium:Water, Oil, Steam
  • Pressure:5K
  • Connection method: Flange
  • Driving method:Handwheel, Pneumatic, Hydraulic, Electric, Gear Operated
  • Material:cast iron,ductile iron
x

Add QR code to serve you!

x

Add QR code to serve you!

x

Add QR code to serve you!

x
JIS Stop-Check ValveOverview

JIS Stop-Check Valve Overview

The JIS Stop-Check Valve is a multi-functional valve compliant with Japanese Industrial Standards (JIS), integrating the manual shut-off capability of a stop valve with the automatic backflow prevention function of a check valve. The valve body is typically made of cast iron, cast steel, or stainless steel. The valve disc is raised or lowered via handwheel rotation to achieve flow shut-off control, while the built-in check mechanism automatically prevents medium backflow when the valve is open.This valve strictly adheres to JIS standards such as JIS B2003 and JIS B2071, ensuring full compatibility with JIS piping systems in terms of pressure ratings, structural dimensions, and flange connections. It is specifically designed for marine vessels, Japanese industrial equipment, and related engineering projects that require both manual shut-off and automatic backflow prevention, providing dual assurance for process control and safety protection.

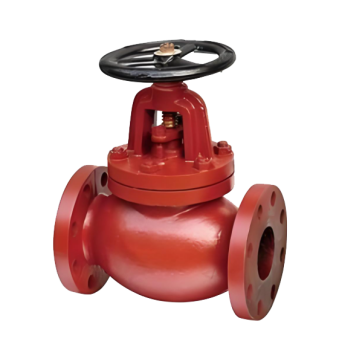

JIS Stop-Check Valve Product Image

JIS Stop-Check ValveCharacteristic

JIS Stop Check Valves Features

1. Dual-Function Integrated Design: Combines the controllable shut-off capability of a stop valve with the automatic backflow prevention of a check valve into a single unit. This simplifies pipeline design and equipment configuration, reduces installation points and potential leakage risks.

2. Strict JIS Standard Compliance: The entire process of design, manufacturing, and inspection strictly adheres to JIS (Japanese Industrial Standards) specifications. This ensures complete compatibility with the Japanese standard system regarding dimensions, pressure ratings (e.g., JIS 10K/20K), flange connections (JIS B2220), and material requirements.

3. Reliable Operation and Excellent Sealing: The stop section employs a screw-lift sealing mechanism for smooth and reliable operation. The check section opens and closes automatically based on media flow, responding quickly to effectively prevent backflow.

4. Compact Structure, Space-Saving: The integrated design occupies significantly less space compared to installing separate stop and check valves. This makes it especially suitable for space-constrained applications such as ship engine rooms and compact equipment layouts.

5. Easy Maintenance and High Interchangeability: Standardized design facilitates procurement and spare part replacement within the JIS system. The stop disc and check disc can be inspected or replaced separately, resulting in lower maintenance costs.

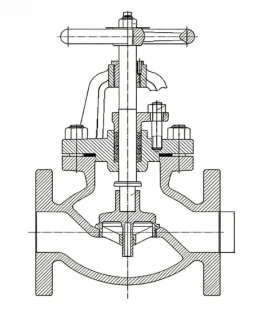

JIS Stop-Check Valvestructure principle

JIS Stop-Check Valve Product Image

Parts Name Material List

NO.NameMaterial
3stembrass
2discBronze Casting
1bodycast iron


JIS Stop-Check Valvetechnology parameter
Performance Specification
Nominal Pressure5KMpa
Shell Test0.75
Seal Test0.55
Suitable Temp.≤200


JIS Stop-Check Valvestandard size

Dimensions Standard Requirements

1. The structural length of the valve shall conform to the standard JIS B2002.

2. The connecting flange shall conform to the standard JIS B2210.

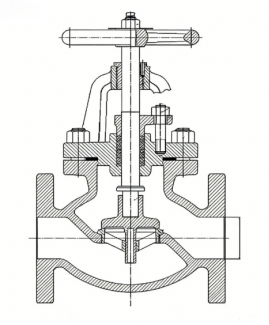

JIS Stop-Check Valve View Drawing

JIS Stop-Check Valve Dimensions Table

公称通径(mm)外形尺寸法兰连接尺寸
LHDoDD1bn-d
50A220274160155120204-19
65A270293200175140224-19
80A300302200185150228-19
100A350344250210175248-19
125A420387280250210248-23
150A490430315280240268-23
200A5705023553302902612-23
