JIS Check Valve

JIS Check Valve

  • Model:JIS F7301/F7352
  • Specification:15A-500A
  • Temperature:-40℃~425℃
  • Medium:Water, Oil, Steam
  • Pressure:10K;20K
  • Connection method:Flange
  • Driving method:Handwheel, Pneumatic, Hydraulic, Electric, Gear Operated
  • Material:WCB、Stainless Steel
x

Add QR code to serve you!

x

Add QR code to serve you!

x

Add QR code to serve you!

x
JIS Check ValveOverview

JIS Check Valve Overview

JIS Check Valves are automatic valves strictly designed, manufactured, and tested in accordance with the Japanese Industrial Standards (JIS). They are primarily used to prevent backflow of media in pipelines. The valve bodies are typically made of cast iron, cast steel, or stainless steel, with structural types including swing, lift, and dual-plate designs. Their operating principle relies on the kinetic energy of forward-flowing media to open the disc. When the media flow stops or reverses, the disc automatically closes under the force of its own weight, spring action, or reverse media pressure. These valves fully comply with standards such as JIS B2003 in terms of dimensions, pressure ratings, flange connections, and material requirements. They are specifically designed for use in marine applications, Japanese industrial equipment, Japan-related engineering projects, and supporting export projects, ensuring full compatibility and high reliability with JIS-compliant piping systems.

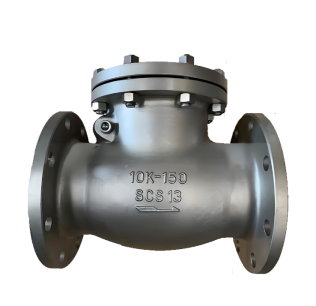

JIS Check Valve Product Image

JIS Check ValveCharacteristic

JIS Check Valve Features

1. Strict JIS Compliance: The entire process of design, manufacturing, and inspection follows JIS standards (such as JIS B2003, JIS B2071, etc.), ensuring seamless compatibility with JIS piping systems in terms of dimensions, pressure ratings, and flange connections (JIS B2220).

2. Reliable Sealing and Automatic Operation: Utilizes precisely matched disc and seat sealing pairs to ensure quick and tight closure. Swing-type designs offer low pressure drop, while lift-type designs provide superior sealing performance, effectively preventing backflow of various media.

3. Versatile Structural Adaptability: Available in swing-type (suitable for horizontal or vertical installation), lift-type (horizontal installation), and wafer-type dual-plate designs to accommodate different installation spaces, media characteristics, and pressure requirements.

4. Safe, Durable, and Easy Maintenance: Robust construction withstands certain water hammer impacts. Key components are wear-resistant and corrosion-resistant, allowing easy inspection or replacement of internal parts such as discs and seals during maintenance.

5. Standardized and Interchangeable: Strict adherence to JIS standards ensures excellent interchangeability, facilitating procurement, installation, and spare parts replacement within JIS-compliant systems—particularly ideal for Japanese-funded projects and equipment integration.

JIS Check Valvestructure principle

JIS Check Valve Structure Diagram

Parts Name Material List

NO.NameMaterial
4packingPTFE
3stemWCB,Stainless Steel
2discWCB,Stainless Steel
1bodyWCB,Stainless Steel


JIS Check Valvetechnology parameter
性能规范表Performance Specification
公称压力Nominal Pressure10K/20KMpa
强度试验压力Shell Test1.5/3
密封试验压力Seal Test1.1/2.2
适用温度Suitable Temp.≤425


JIS Check Valvestandard size

Dimensions Standard Requirements

1. The structural length of the valve shall conform to the standard JIS B2002.

2. The connecting flange shall conform to the standard JIS B2212.

JIS Check Valve View Drawing

JIS Check Valve Dimensions Table

NPS50A65A80A100A125A150A200A250A300A
L203216241292330356495622698
H112130147177189209257296343


Articles related to technology research and development
  • Slow-closing wafer check valve patent

       The utility model provides a slow-closing wafer check valve, which includes a valve body, a valve disc, a valve shaft, and a torsion spring sleeved on the valve shaft. The valve body is provided with a medium channel for medium circulation in the axial direction, which includes an inlet end and an outlet end. The valve disc, valve shaft, and torsion spring are symmetrically arranged in two groups relative to the center of the valve body. The utility model further includes a damping device located at the inlet end, which includes a cylinder inserted on the valve body, a piston rod located inside the cylinder, a spring, and a cover connected to the outer end of the cylinder. The cylinder is provided with a first cavity and a second cavity that are connected and communicated. The cross-section of the second cavity is square, and its cross-sectional area is larger than that of the first cavity. One end of the piston rod located inside the medium channel is provided with a movable block. The utility model has low noise and technical characteristics of quick opening, slow closing, and water hammer elimination, enabling light-load pump start-up and preventing the generation of water hammer during pump shutdown.

    1. A slow-closing wafer check valve, comprising a valve body, a valve disc, a valve shaft, and a torsion spring sleeved on the valve shaft. The valve body is provided with a medium passage for medium circulation in the axial direction, and the medium passage includes an inlet end and an outlet end. The valve disc, valve shaft, and torsion spring are symmetrically arranged in two groups relative to the center of the valve body. The valve also comprises a damping device located at the inlet end. The damping device includes a cylinder inserted on the valve body, a piston rod located inside the cylinder, a spring, and a cover connected to the outer end of the cylinder. The cylinder is provided with a first cavity and a second cavity that are connected and communicated. The cross-section of the second cavity is square, and the cross-sectional area of the second cavity is larger than that of the first cavity. One end of the piston rod is located inside the second cavity, and the other end penetrates through the first cavity and is located inside the medium passage. The end of the piston rod located inside the medium passage is provided with a movable block, and the end of the piston rod located inside the second cavity is provided with an external thread. The second cavity is provided with a limit plate that is adapted to and threadedly connected with the piston rod. The spring is sleeved on the piston rod, with one end abutting against the limit plate and the other end abutting against the inner wall of the second cavity. The side of the valve disc facing the piston rod is provided with a driving block that cooperates with the movable block. During the closing process of the valve disc, the side of the driving block facing the center of the valve body cooperates with the movable block to achieve displacement of the piston rod relative to the cylinder towards the center of the valve body. The damping device is symmetrically arranged in two groups relative to the center of the valve body.

    2. A slow-closing wafer check valve according to claim 1, characterized in that a square hole is axially provided at the end of the piston rod located in the second cavity, an adjuster is inserted at a position on the cover corresponding to the square hole, a driving rod adapted to the square hole is provided at the end of the adjuster, and the adjuster is rotatable relative to the cover.

    3. A slow-closing wafer check valve according to claim 2, characterized in that a limit slot is provided at the connection between the cover and the regulator, and a limit mechanism is arranged inside the limit slot. The limit mechanism comprises a ball, a tower spring connected to the ball, and a positioning column for fixing the tower spring. At least four engaging slots adapted to the ball are provided circumferentially at the connection between the regulator and the cover.

    4. A slow-closing wafer check valve according to claim 3, characterized in that the top edge of the engaging groove is provided with a rounded corner.

    5. A slow-closing wafer check valve according to claim 1, characterized in that the valve body is provided with a stepped groove adapted to the cylinder body.

    6. A slow-closing wafer check valve according to claim 5, characterized in that a sealing ring is sleeved at the connection between the cylinder and the valve body.

    7. A slow-closing wafer check valve according to claim 1, characterized in that the valve disc is provided with a build-up welding layer that is sealed with the valve body. 8. A slow-closing wafer check valve according to claim 7, characterized in that one side of the build-up welding layer is provided with vulcanized rubber that is sealed with the valve body.
