ZAZQ Electric Three-way Converging Control Valve

Model：ZAZQ-16C/ZAZQ-25C/ZAZQ-40C/ZAZQ-64C/ZAZQ-16P/ZAZQ-25P/ZAZQ-40P/ZAZQ-64P//ZAZQ-16R/ZAZQ-25R/ZAZQ-40R/ZAZQ-64R
Specification：DN25-DN300
Temperature：-60℃-450℃
Medium：Common fluids, etc.

Pressure：PN1.6、PN2.5、PN4.0、PN6.4
Connection method：flange
Driving method：Electric
Material：Cast Steel,Stainless Steel,Duplex Stainless Steel

Consult now

Add QR code to serve you!

ZAZQ Electric Three-way Converging Control ValveOverview

ZAZQ electric three-way converging control valve is an industrial automation control valve composed of a linear electric actuator and a three-way converging globe-style valve body. The valve receives standard analog signals of 4-20mA DC or 0-10V DC from control systems (such as PLC, DCS) to drive the valve stem, moving the valve plug axially between two valve seats. Its unique "two-inlet and one-outlet" structural design is specifically used to mix two fluids of different temperatures, pressures, or concentrations into a single uniform fluid in a set proportion, thereby achieving precise control of the temperature or composition of the mixed medium. In heat exchange stations, industrial mixing, and cooling circulation systems, one three-way converging valve can replace two single-seated control valves, which not only significantly simplifies the pipeline configuration but also greatly reduces system complexity and investment costs.

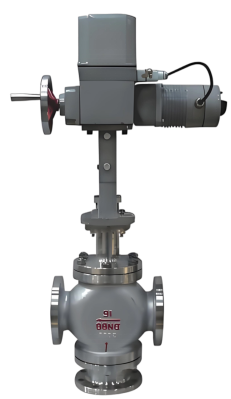

Product Image of ZAZQ Electric Three-way Converging Control Valve

ZAZQ Electric Three-way Converging Control ValveCharacteristic

1. Proportional mixing adjustment logic:The valve body features two inlets (Ports A and B) and one outlet (Port C). As the valve plug position changes, the opening of one inlet increases while the other decreases simultaneously, ensuring a relatively stable total flow and achieving precise fluid proportioning adjustment.
2.Compact pipeline design:The integrated three-way flow path design effectively reduces the number of pipeline interfaces, elbows, and supports. The small footprint is particularly suitable for modular heat exchange units with limited space.
3.Powerful electric driving force:Equipped with a high-performance electric actuator, it provides large output thrust and features self-locking capabilities without the need for an external air supply. The built-in servo system supports intelligent calibration, ensuring the accuracy and repeatability of valve plug positioning.
4.Dynamic operational stability:The valve plug adopts a side-guiding structure, and the flow path is optimized via fluid dynamics. Under converging conditions, it can effectively suppress impact vibration and turbulent noise generated by the intersection of two fluid streams, ensuring stable system operation.
5.Excellent adjustment characteristics:The valve plug profile is precision-machined to provide linear or equal percentage flow characteristics. The wide rangeability (typically up to 30:1 or higher) ensures high-precision control even under low load fluctuations.
6.Intelligent safety protection functions:The actuator integrates overload protection, stall protection, and thermal protection modules. It supports fail-safe functions such as fail-in-place or reset upon signal loss, effectively protecting process safety during unexpected failures.
7.Material and environmental adaptability:Valve body materials are available in cast iron (HT200), cast steel (WCB), and stainless steel (CF8/CF8M). Internal parts can be hardened to handle hot water, thermal oil, steam, and general corrosive media.
8.Significant maintenance cost advantages:The modular internal component design allows for the inspection and replacement of seals or valve plugs without dismantling the entire valve body, greatly shortening maintenance downtime and resulting in low long-term operation and maintenance expenses.

ZAZQ Electric Three-way Converging Control Valvestructure principle

Structural Drawing of ZAZQ Electric Three-way Converging Control Valve

List of Component Names and Materials

Name	Material
Valve body	Cast Steel,Stainless Steel,Duplex Stainless Steel
Valve cover	HT200, ZG230-450, ZG1Cr18Ni9Ti
Valve core	1Cr18Ni9Ti, Stellite alloy surfacing
Valve seat	1Cr18Ni9Ti, Stellite alloy surfacing
Push rod	2Cr13, 1Cr18Ni9Ti
Valve stem	2Cr13, 1Cr18Ni9Ti
Packing	PTFE, flexible graphite, stainless steel bellows
Gasket	Rubber asbestos board, 1Cr18Ni9Ti, graphite spiral wound gasket
Bushing	2Cr13

ZAZQ Electric Three-way Converging Control Valvetechnology parameter

Performance Specification Sheet

Performance Specification Sheet
Nominal Pressure	1.6	2.5	4.0	6.4	MPa
Strength test pressure	2.4	3.8	6.0	9.6
Sealing test pressure	1.76	2.8	4.4	7.04
Applicable Temperature	-60-450				℃

ZAZQ Electric Three-way Converging Control Valvestandard size

Standard requirements for external dimensions

1. The structural length of the valve shall comply with the standard of GB/T12221

2. Connecting flanges according to GB/T17241.6 standard

Outline Drawing of ZAZQ Electric Three-way Converging Control Valve

Outline dimension table(Unit: mm)

Nominal Diameter(DN)			25	32	40	50	65	80	100	125	150	200	250	300
Flange Distance(L)		PN16	185	200	220	250	275	300	350	410	450	550	670	770
		PN40	190	200	220	255	285	310	360	430	465	560	690	795
		PN64	200	210	235	265	295	320	370	440	475	570	752	819
Standard Bonnet H1		PN16	805	821	843	878	989	1014	1016	1149	1210	1230	1980	2100
		PN40	805	821	843	878	989	1014	1016	1149	1210	1230	1980	2100
		PN64	825	841	863	898	1009	1034	1056	1179	1216	1300	2120	2460
Medium Temp Type Bonnet H1		PN16	1005	1021	1043	1078	1239	1264	1266	1469	1530	1550	2330	2450
		PN40	805	821	843	878	989	1014	1016	1149	1210	1230	2330	2450
		PN64	1025	1041	1063	1098	1259	1284	1306	1499	1526	1620	2370	2710
H2	PN16		140	150	160	180	200	222	220	270	280	306	474	584
	PN40		140	150	160	180	200	222	220	270	280	306
	PN64	diversion	160	170	180	200	220	242	260	300	322	376
	PN64	confluence	160	170	180	200	220	242	260	325	322	376
B			460				530						630
Flange Standard			GB：1.6、2.5、4.0、6.4Mpa ANSI：150、300、600Lb JIS：10K、20K、30K
