DIN Standard Cast Steel Flanged Ball Valve

Model：DIN
Specification：DN15-DN500
Temperature：-29-150℃
Medium：water, gas, oil

Pressure：PN16-PN64
Connection method：Flange
Driving method：Manual, pneumatic, electric，gear
Material：Cast Steel

Consult now

Add QR code to serve you!

DIN Standard Cast Steel Flanged Ball ValveOverview

DIN Standard Cast Steel Flanged Ball Valve Overview

The DIN Standard Cast Steel Flanged Ball Valve is an industrial valve designed and manufactured in strict compliance with the German Industrial Standards (DIN) system. It features a cast steel body with standard flange connections. Its design, dimensions, pressure ratings, and material requirements fully adhere to relevant DIN standards, including DIN 3202 and DIN EN 1092. The valve body is typically cast from carbon steel or stainless steel and employs a floating or fixed ball structure, enabling rapid opening and closing through a 90-degree rotation of the ball.This valve is fully compatible with DIN-standard pipeline systems and is widely applicable across industrial sectors such as chemical processing, energy, water treatment, and machinery equipment. It serves as a reliable medium-to-high-pressure fluid control device within the DIN standard system.

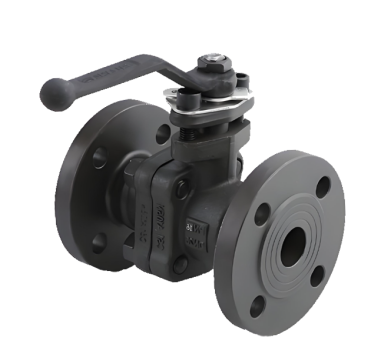

DIN Standard Cast Steel Flanged Ball Valve Product Image

DIN Standard Cast Steel Flanged Ball ValveCharacteristic

DIN Standard Cast Steel Flanged Ball Valve Features

1. Strict Compliance with DIN Standards:

The design and manufacturing fully adhere to standards such as DIN 3202 and DIN EN 1092, ensuring seamless integration with German standard pipeline systems in terms of flange dimensions and pressure ratings (PN series).

2. Reliable Strength of Cast Steel Body:

The valve body is produced using precision casting technology, ensuring a dense structure and excellent mechanical properties, making it suitable for medium- to high-pressure industrial applications.

3. Excellent Sealing Performance:

Offers both soft seal (e.g., PTFE) and metal hard seal options, providing reliable sealing for water, steam, oil products, and mildly corrosive media.

4. Easy Operation and Maintenance:

The valve is lightweight and easy to operate with its 90-degree opening and closing mechanism. Some models are equipped with fire-safe and anti-static designs. The structure is designed for easy disassembly, resulting in low maintenance costs.

5. Wide Compatibility and Application Range: The flange connections are compatible with German standards and some international standards, making the valve widely applicable in industrial pipelines, mechanical equipment, and European standard projects, with strong versatility.

DIN Standard Cast Steel Flanged Ball Valvestructure principle

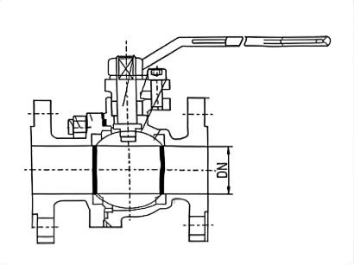

DIN Standard Cast Steel Flanged Ball Valve Structure Diagram

Parts Name Material List

序号NO.	名称Name	材料Material
1	阀体body	铸钢Cast Steel
2	球体ball	铸钢Cast Steel
3	密封垫seal gasket	RPTFE
4	填料packing	RPTFE
5	阀杆stem	13CR

DIN Standard Cast Steel Flanged Ball Valvetechnology parameter

性能规范表Performance Specification
公称压力Nominal Pressure	1.6-6.4	Mpa
强度试验压力Shell Test	2.4-9.6
密封试验压力Seal Test	1.76-7.04
适用温度Suitable Temp.	150	℃

DIN Standard Cast Steel Flanged Ball Valvestandard size

Dimensions Standard Requirements

1. The structural length of the valve shall conform to the standard DIN 3202.

2. The connecting flange shall conform to the standard DIN EN 1092.

DIN Standard Cast Steel Flanged Ball Valve View Drawing

DIN Standard Cast Steel Flanged Ball Valve Dimensions Table

DN	L(F4)	LIF5)	D	D₁	D₂	b	Z-φd	H	Li
15	115	·	95	65	46	14	4-14	118	118
20	120	·	105	75	56	16	4-14	125	125
25	125	120	115	85	65	16	4-14	135	135
32	132	140	140	100	76	18	4-18	150	150
40	140	240	150	110	84	18	4-18	135	165
5Q	150	250	165	125	9	20	4-18	200	200
65	170	270	185	145	118	22	8-18	220	220
80	180	280	200	160	182	24	8-18	230	230
100	180	300	235	190	166	24	8-22	270	270
125		325	270	220	184	26	8-26	305	306
150		350	300	250	211	28	8-26	390	390
200		400	360	310	274	30	12-26	430	430
250		450	425	370	330	32	12-30	480	650
300		500	465	430	389	34	16-30	480	550

Articles related to technology research and development

Wafer-type ball valve patented

The utility model provides a wafer-type float valve, which includes a valve body and a driving mechanism. The valve body is provided with a through medium channel in the axial direction, and is tubular in shape. It also includes a butterfly plate that fits and seals with the inner wall of the medium channel. The driving mechanism comprises a valve shaft that passes through the valve body and is connected to the butterfly plate, a valve rod connected to the outer end of the valve shaft in the radial direction, and a float ball connected to the valve rod. The valve rod is provided with a limit bolt that is threadedly connected to the valve body in the swinging direction. The butterfly plate can rotate relative to the valve body. The front end of the valve body at the inlet of the medium channel is provided with a filter screen, which is hollow and hemispherical in shape. The end face of the valve body opposite the filter screen is provided with an annular groove, and the open end of the filter screen is provided with a raised edge that is embedded in the annular groove. The utility model can filter the medium, is simple to install, time-saving, labor-saving, small in size, widely applicable, and can reduce the impact force of the medium on the butterfly plate.
1. A double-clip type float valve, comprising a valve body and a driving mechanism. The valve body is provided with a through medium channel in the axial direction. It is characterized in that the valve body is tubular and further comprises a butterfly plate that fits and seals with the inner wall of the medium channel. The driving mechanism comprises a valve shaft passing through the valve body and connected to the butterfly plate, a valve rod connected to the outer end of the valve shaft in the radial direction, and a float connected to the valve rod. The valve rod is provided with a limit bolt threadedly connected to the valve body in the swinging direction. The butterfly plate is rotatable relative to the valve body. The front end of the valve body located at the inlet of the medium channel is provided with a filter screen. The filter screen is hollow and hemispherical. The end surface of the valve body opposite the filter screen is provided with an annular groove. The open end of the filter screen is provided with a convex edge embedded in the annular groove.
2. A wafer-type float valve according to claim 1, characterized in that the valve rod penetrates one end of the valve shaft located outside the valve body, and is threadedly engaged with the valve rod through a nut to clamp the valve shaft and achieve positioning of the valve rod.
3. A wafer-type ball valve according to claim 2, characterized in that a step is provided at the position on the valve shaft connected to the valve body, a groove is provided at the position on the outer circumferential wall of the valve body corresponding to the step, and a gland is sleeved on the valve shaft, which is threadably connected to the groove and abuts against the step.
4. A wafer-type ball valve according to claim 3, characterized in that a sealing groove is provided on the side of the groove facing the butterfly plate, and a sealing ring sleeved on the valve shaft is arranged in the sealing groove.
5. A wafer-type ball valve according to claim 1, characterized in that an inner groove is provided on the side wall within the annular groove, and an elastic snap ring, which is used to press the convex edge and is compatible with the inner groove, is provided within the annular groove.
6. A wafer-type ball valve according to claim 5, characterized in that the bottom of the convex edge is provided with a plurality of protrusions arranged around the center of the filter screen, and the annular groove is provided with a limiting groove adapted to the protrusions.
7. A wafer-type float valve according to claim 6, characterized in that the protrusion is hemispherical. 8. A wafer-type float valve according to claim 7, characterized in that a clamping groove is provided at the junction of the protrusion and the protruding edge, and a clamping block adapted to the clamping groove is provided at the opening of the limiting groove.
