JIS Standard Ball Valve

Model：JIS
Specification：15A-100A
Temperature：-29℃~150℃
Medium：water, gas, oil

Pressure：10K-20K
Connection method： Flange
Driving method：Manual
Material：Cast Steel, Stainless Steel

Consult now

Add QR code to serve you!

JIS Standard Ball ValveOverview

JIS Standard Ball Valve Overview

The JIS Standard Ball Valve is an industrial valve designed and manufactured in strict compliance with Japanese Industrial Standards (JIS). It features flange or threaded connections, with its design, dimensions, pressure ratings, and material requirements fully adhering to relevant standards such as JIS B2003 and JIS B2071. The valve body is typically made of cast steel, stainless steel, or brass, and rapid opening and closing are achieved through a 90-degree rotation of the ball.This valve is fully compatible with Japanese standard pipeline systems (e.g., JIS B2220 flanges, JIS B0203 threads). It is widely used in shipbuilding, machinery, chemical industries, and Japanese-standard engineering projects, serving as a reliable fluid isolation and control device within the JIS standard system.

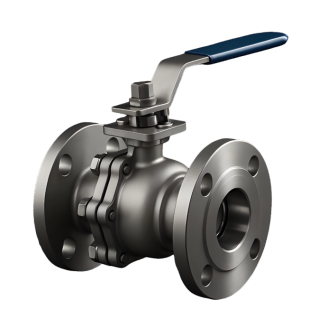

JIS Standard Ball Valve Product Image

JIS Standard Ball ValveCharacteristic

JIS Standard Ball Valve Features

1. Strict Compliance with JIS Standards:

The entire process adheres to standards such as JIS B2003 and JIS B2071, ensuring complete compatibility with Japanese standard pipeline systems in terms of face-to-face dimensions, flange sizes, pressure ratings, and material requirements.

2. Optional Dual Seal Structures:

Offers both soft seal (e.g., PTFE) and metal hard seal options, making it suitable for a wide range of applications, including water, steam, oil products, and corrosive media.

3. Easy and Safe Operation with High Reliability:

Provides rapid 90-degree opening and closing with low operating torque. Some models are equipped with fire-safe and anti-static designs, complying with Japanese safety standards.

4. Strong Connection Compatibility:

Flange connections conform to JIS B2220 standards, and threaded connections comply with JIS B0203 standards, ensuring excellent interchangeability with Japanese standard pipelines and certain international standard pipelines.

5. Easy Maintenance and Wide Application Range:

Designed for easy disassembly and maintenance, with replaceable sealing components. Suitable for shipbuilding, machinery manufacturing, chemical equipment, and Japanese-funded projects, offering high versatility.

JIS Standard Ball Valvestructure principle

JIS Standard Ball Valve Structure Diagram

Parts Name Material List

NO.	Name	Material
1	body	SSC13A/SSC14A
2	ball	SSC13A/SSC14A
3	seal gasket	RPTFE
4	packing	PTFE
5	stem	304
6	O ring	NBR

JIS Standard Ball Valvetechnology parameter

Performance Specification
Nominal Pressure	10K/20K	Mpa
Shell Test	2.4/5.8
Seal Test	1.5/4
Suitable Temp.	150	℃

JIS Standard Ball Valvestandard size

Dimensions Standard Requirements

1. The structural length of the valve shall conform to the standard JIS B2002.

2. The connecting flange shall conform to the standard JIS B2220.

JIS Standard Ball Valve View Drawing

JIS Standard Ball Valve Dimensions Table

SIZE	15A	20A	25A	32A	40A	50A	65A	80A	100A
φd	15	20	25	32	38	50	65	76	100
L	108	117	127	140	165	178	190	203	229
T	12	14	14	16	16	16	18	18	18
f	1	1	1	2	2	2	2	2	2
D1	95	100	125	135	140	155	175	185	210
D2	70	75	90	100	105	120	140	150	175
D3	51	56	67	76	81	96	116	126	151
n	4	4	4	4	4	4	4	8	8
φd1	15	15	19	19	19	19	19	19	19
H1	48	53	64	71	76	84.5	101.5	111.5	141
H2	8	8	11	11	14	14	17	17	22
H	80	85	100	108	114	124	148	158	189
W	140	140	160	160	185	185	230	230	320
K	M12X15	M2Xi5	M14X15	M4X1.5	MI18×1S	MI8X15	MEX15	M22XLS	M8X2
P	9	9	11	11	14	14	17	17	22
A1	3	3	3	3	3.5	3.5	4.5	4.5
A2	3	3	3.5	3.5	4.5	4.5	5.5	5.5	M10
BI	36	36	42	42	50	50	70	70
B2	42	42	50	50	70	70	102	102	102
