DIN Floating Standard Ball Valve

Model：DIN
Specification：DN15-DN250
Temperature：≤450℃
Medium：water, gas, oil

Pressure：PN16-PN64
Connection method：Flange
Driving method：Manual, pneumatic, electric，gear
Material：cast Steel, Stainless Steel

Consult now

Add QR code to serve you!

DIN Floating Standard Ball ValveOverview

DIN Floating Standard Ball Valve Overview

The DIN Floating Standard Ball Valve is an industrial valve designed and manufactured in strict compliance with German Industrial Standards (DIN), featuring a floating ball structure. The valve body is typically made of cast steel, stainless steel, or brass. Under the action of medium pressure, the ball can undergo slight floating displacement, pressing tightly against the outlet seat to form a self-sealing closure. Its design, dimensions, and testing requirements fully adhere to relevant standards such as DIN 3202 and DIN EN 1092-2. Quick opening and closing are achieved through a 90-degree rotation of the ball.This valve is fully compatible with DIN-standard pipeline systems and is suitable for water, steam, oil products, and non-corrosive media. It is widely used in chemical processing, energy, heating, ventilation, and industrial fluid control systems, serving as an economical and reliable general-purpose isolation device within the DIN standard system.

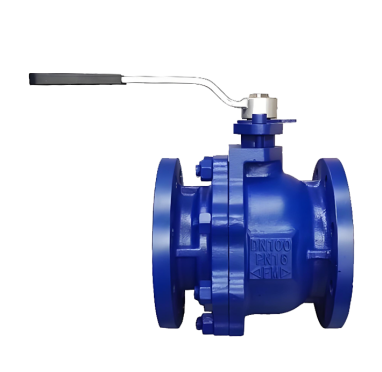

DIN Floating Standard Ball Valve Product Image

DIN Floating Standard Ball ValveCharacteristic

DIN Floating Standard Ball Valve Features

1. Strict Compliance with DIN Standards:

The design and manufacturing fully adhere to standards such as DIN 3202 and DIN EN 1092-2, ensuring complete compatibility with German standard pipeline systems in terms of flange dimensions and pressure ratings.

2. Floating Ball Self-Sealing Design:

Utilizes medium pressure to automatically compress the ball against the seat, creating a reliable seal. The simple and robust structure ensures excellent sealing performance.

3. Lightweight Operation and Quick Opening/Closing:

Full opening or closing is achieved with a 90-degree rotation. The valve features low flow resistance and low operating torque, and can be configured for manual or actuator operation.

4. Cost-Effective and Easy Maintenance:

The simple structure results in low manufacturing costs, while sealing components are easy to replace, ensuring low maintenance costs and high cost-effectiveness.

5. Wide Range of Applications:

Suitable for a variety of industrial media within conventional temperature and pressure ranges. It offers excellent compatibility with German and international standard pipelines, making it highly versatile.

DIN Floating Standard Ball Valvestructure principle

DIN Floating Standard Ball Valve Structure Diagram

Parts Name Material List

NO.	Name	Material
1	body	cast Steel, Stainless Steel
2	ball	cast Steel, Stainless Steel
3	seal gasket	PTFE、VITON
4	packing	Flexible Graphite、PTFE
5	stem	cast Steel, Stainless Steel

DIN Floating Standard Ball Valvetechnology parameter

性能规范表Performance Specification
公称压力Nominal Pressure	1.6-6.4	Mpa
强度试验压力Shell Test	2.4-9.6
密封试验压力Seal Test	1.76-7.04
适用温度Suitable Temp.	450	℃

DIN Floating Standard Ball Valvestandard size

Dimensions Standard Requirements

1. The structural length of the valve shall conform to the standard DIN 3202.

2. The connecting flange shall conform to the standard DIN EN 1092.

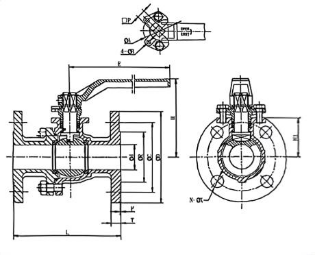

DIN Floating Standard Ball Valve View Drawing

DIN Floating Standard Ball Valve Dimensions Table

Size	PN	d	L	R	C	D	H	H1	E	F	T	□P	ø A	ØB	N	ØX	ISO 5211
DN15	10-40	15	115	45	65	95	78	34	150	2	14	11	42	4	4	14	F04
DN20	10-40	20	120	58	75	105	80	35	150	2	16	11	42	4	4	14	F04
DN25	10-40	25	125	68	85	115	88	45	150	2	16	11	42	4	4	14	F04
DN32	10-40	32	130	78	100	140	100	50	170	2	16	14	50	5	4	18	F05
DN40	10-40	38	140	88	110	150	122	60	230	3	16	17	70	6	4	18	F07
DN50	10-40	50	150	102	125	165	130	68	230	3	18	17	70	6	4	18	F07
DN65	10-16	65	170	122	145	185	148	86	230	3	18	17	70	6	4	18	F07
DN80	10-16	78	180	138	160	200	167	96	305	3	20	22	102	8	8	18	F10
DN100	10-16	100	190	158	180	220	188	117	305	3	20	22	102	8	8	18	F10
DN125	10-16	125	325	188	210	250	246	141	500	3	22	22	125	10	8	18	F12
DN150	10-16	150	350	212	240	285	288	172	650	3	22	27	125	10	8	22	F12
DN200	10-16	200	400	268	295	340	329	213	850	3	24	27	125	10	12	22	F12
DN250	10-16	250	450	320	355	405	396	255	1400	3	26	36	140	14	12	26	F14

Articles related to technology research and development

Wafer-type ball valve patented

The utility model provides a wafer-type float valve, which includes a valve body and a driving mechanism. The valve body is provided with a through medium channel in the axial direction, and is tubular in shape. It also includes a butterfly plate that fits and seals with the inner wall of the medium channel. The driving mechanism comprises a valve shaft that passes through the valve body and is connected to the butterfly plate, a valve rod connected to the outer end of the valve shaft in the radial direction, and a float ball connected to the valve rod. The valve rod is provided with a limit bolt that is threadedly connected to the valve body in the swinging direction. The butterfly plate can rotate relative to the valve body. The front end of the valve body at the inlet of the medium channel is provided with a filter screen, which is hollow and hemispherical in shape. The end face of the valve body opposite the filter screen is provided with an annular groove, and the open end of the filter screen is provided with a raised edge that is embedded in the annular groove. The utility model can filter the medium, is simple to install, time-saving, labor-saving, small in size, widely applicable, and can reduce the impact force of the medium on the butterfly plate.
1. A double-clip type float valve, comprising a valve body and a driving mechanism. The valve body is provided with a through medium channel in the axial direction. It is characterized in that the valve body is tubular and further comprises a butterfly plate that fits and seals with the inner wall of the medium channel. The driving mechanism comprises a valve shaft passing through the valve body and connected to the butterfly plate, a valve rod connected to the outer end of the valve shaft in the radial direction, and a float connected to the valve rod. The valve rod is provided with a limit bolt threadedly connected to the valve body in the swinging direction. The butterfly plate is rotatable relative to the valve body. The front end of the valve body located at the inlet of the medium channel is provided with a filter screen. The filter screen is hollow and hemispherical. The end surface of the valve body opposite the filter screen is provided with an annular groove. The open end of the filter screen is provided with a convex edge embedded in the annular groove.
2. A wafer-type float valve according to claim 1, characterized in that the valve rod penetrates one end of the valve shaft located outside the valve body, and is threadedly engaged with the valve rod through a nut to clamp the valve shaft and achieve positioning of the valve rod.
3. A wafer-type ball valve according to claim 2, characterized in that a step is provided at the position on the valve shaft connected to the valve body, a groove is provided at the position on the outer circumferential wall of the valve body corresponding to the step, and a gland is sleeved on the valve shaft, which is threadably connected to the groove and abuts against the step.
4. A wafer-type ball valve according to claim 3, characterized in that a sealing groove is provided on the side of the groove facing the butterfly plate, and a sealing ring sleeved on the valve shaft is arranged in the sealing groove.
5. A wafer-type ball valve according to claim 1, characterized in that an inner groove is provided on the side wall within the annular groove, and an elastic snap ring, which is used to press the convex edge and is compatible with the inner groove, is provided within the annular groove.
6. A wafer-type ball valve according to claim 5, characterized in that the bottom of the convex edge is provided with a plurality of protrusions arranged around the center of the filter screen, and the annular groove is provided with a limiting groove adapted to the protrusions.
7. A wafer-type float valve according to claim 6, characterized in that the protrusion is hemispherical. 8. A wafer-type float valve according to claim 7, characterized in that a clamping groove is provided at the junction of the protrusion and the protruding edge, and a clamping block adapted to the clamping groove is provided at the opening of the limiting groove.
