1 . Dynamic Pressure Compensation & Anti-Interference: The valve features an internal pressure-balanced mechanism that self-adapts to counteract dynamic pressure fluctuations caused by the opening/closing of other branches. It locks the preset flow rate regardless of grid pressure shifts, entirely preventing hydronic cross-interference.

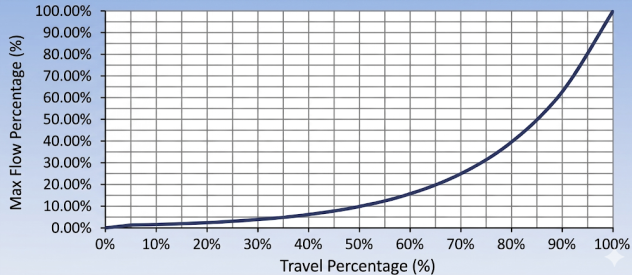

2 . Precision Motorized Linear Regulation: Equipped with a smart electric actuator supporting standard analog and digital bus controls, the relative flow rate exhibits an excellent equal-percentage or linear characteristic curve against the input signal. The streamlined flow path without dead zones ensures exceptionally high regulation accuracy.
3 . Resilient Bubble-Tight Complete Shutoff: Utilizing a high-density PTFE soft seal, this valve breaks through the structural limitations of conventional regulating or balancing valves that fail to close tightly. It serves as an absolute isolation valve during system shutdown or terminal equipment maintenance, achieving zero internal leakage.
4 . Highly Integrated to Simplify Piping: By seamlessly blending "dynamic balancing," "motorized modulation," and "tight shutoff" into a single valve body, it eliminates the need to install separate balancing and motorized control valves sequentially, greatly optimizing installation space and lowering hardware procurement costs.
5 . Superior Corrosion Resistance & Cleanliness: The valve body and all core moving parts are cast and machined from SS304 (16P) stainless steel. Long-term contact with hot/cold water, up to 50% concentration glycol solutions, or high-standard deionized water yields no rust or impurity precipitation, sustaining coolant loop cleanliness.
6 . Robust Flanged Profile & High Durability: Designed with standard flange interfaces, the optimized inner fluid channels minimize water resistance and yield an extremely low pressure drop when fully open. The heavy-duty design safely absorbs the frequent thermal and mechanical shocks of high-frequency variable-flow modulation.
