AB Worm Gear Operator

AB Worm Gear Operator

  • Model:AB
  • Specification:750~6500N.m
  • Temperature: -20~80℃
  • Medium:
  • Pressure:速比(Gear Ratio)36:1~178:1
  • Connection method:
  • Driving method:Worm gear
  • Material:Cast Iron,Ductile Iron
x

Add QR code to serve you!

x

Add QR code to serve you!

x

Add QR code to serve you!

x
AB Worm Gear OperatorOverview

The AB worm gear drive unit is a compact right-angle power transmission terminal utilizing a high-precision planar double-enveloping hourglass worm gear set or ZC-type worm gear pair. It is designed for industrial applications demanding very high reduction ratios, moderate output torque, and self-locking capability – such as valve actuators, conveyors, hoisting equipment, packaging machinery, agricultural machinery, and small lifting devices. The housing is made of high-strength cast iron or aluminum alloy. The internal high-capacity worm gear pair features a worm made of 40Cr or 20CrMnTi steel (case-hardened to HRC50-55, ground and polished) and a worm wheel centrifugally cast from high-grade tin bronze (ZCuSn10P1). Through optimized tooth geometry and meshing parameters, the AB worm gear drive achieves total reduction ratios from 36:1 to 178:1 and output torque ratings from 750 N·m to 6,500 N·m, providing reliable long-term operation under frequent start-stop and low-to-medium speed conditions. The unit offers reliable back-self-locking, supports various mounting orientations and shaft arrangements, and accommodates standard motors, servo motors, or handwheels – realizing a true 4-in-1 integration of “high reduction, moderate torque, self-locking safety, and compact installation”.

Product Image of AB Worm Gear Operator

AB Worm Gear OperatorCharacteristic

1. High-Precision Worm Gear Set : Planar double-enveloping or ZC tooth profile. Worm material: 40Cr or 20CrMnTi, case-hardened to HRC50-55, ground to Ra≤0.8. Worm wheel: ZCuSn10P1 tin bronze, centrifugally cast. Load capacity is more than 30% higher than ordinary Archimedean worm gears.

2. Wide Ratio Range & Torque Coverage : Reduction ratio covers 36:1 to 178:1. Rated output torque from 750 N·m to 6,500 N·m – suitable for valve actuation, lifting, conveying, and other medium-duty applications.

3. Reliable Back-Self-Locking : Leveraging the friction angle characteristics of worm drives, reliable self-locking is achieved at ratios ≥36:1, effectively preventing reverse rotation – ideal for hoists, valve actuators, and rotary tables.

4. High Efficiency & Long Service Life : Transmission efficiency ranges from 70% to 85% depending on ratio. Gear teeth are run-in and phosphated, providing extended contact fatigue life with a design life of at least 15,000 hours.

5. Compact Modular Design : Topology-optimized housing with small footprint. Input/output interfaces conform to international standards, allowing quick adaptation to IEC motors or handwheels. Supports M1 to M6 mounting orientations.

6. Reliable Sealing & Long-Life Lubrication : Shaft ends feature double-lipped oil seals (FKM) achieving IP65 protection. Pre-filled with synthetic worm gear oil (ISO VG320 or 460) – maintenance-free for up to 10,000 hours under normal conditions.

AB Worm Gear Operatorstructure principle

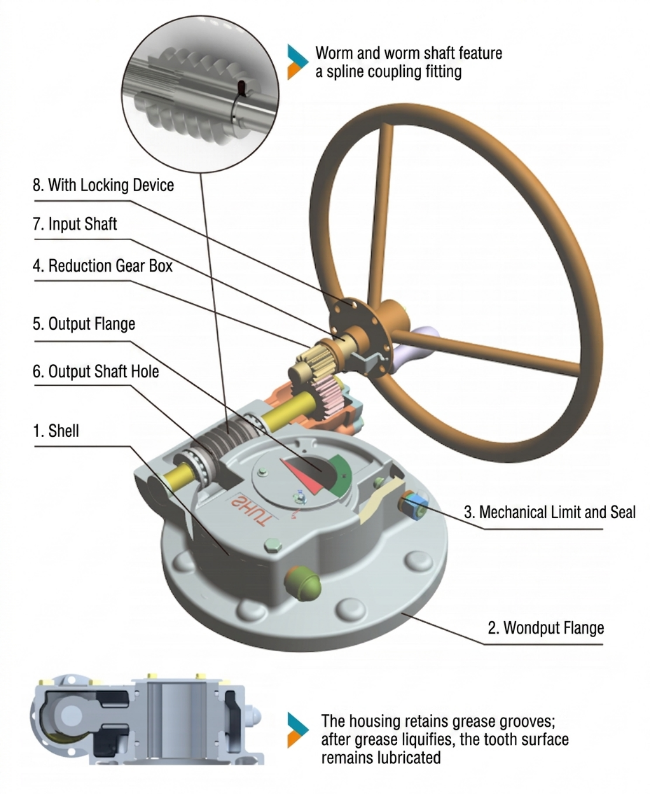

Structural Drawing of AB Worm Gear Operator

AB Worm Gear Operatortechnology parameter

Material Specification for Turbine Unit

CategoryComponentCast Iron StandardHigh TemperatureCast Steel StandardLow TemperatureUltra-low Temp & Corrosive
Worm GearboxTemp: -20~80℃Temp: -20~180℃Temp: -20~80℃Temp: -40~80℃Temp: -60~80℃
Worm Gear HousingGB/T 1348 QT450-10GB/T 1348 QT450-10ASTM A216 WCBASTM A352 LCBASTM A352 LCC
Worm Gear CoverGB/T 1348 QT450-10GB/T 1348 QT450-10ASTM A216 WCBASTM A352 LCBASTM A352 LCC
Base PlateGB/T 1348 QT450-10GB/T 1348 QT450-10ASTM A216 WCBASTM A352 LCBASTM A352 LCC
Worm WheelGB/T 1348 QT600-3GB/T 1348 QT600-3GB/T 1348 QT600-3GB/T 1348 QT600-3GB/T 1348 QT600-3
Worm ShaftGB/T 3077 20CrMnTiGB/T 3077 20CrMnTiGB/T 3077 20CrMnTiGB/T 3077 20CrMnTiGB/T 3077 20CrMnTi
Shaft SleeveComposite MaterialCopper AlloyComposite MaterialComposite MaterialComposite Material
Carbon Steel + PTFECarbon Steel + PTFECarbon Steel + PTFECarbon Steel + PTFE
BearingCommercial Bearing SteelCommercial Bearing SteelCommercial Bearing SteelCommercial Bearing SteelCommercial Bearing Steel
Indicator NeedleA3 Stamping + Plastic SprayingA3 Stamping + Plastic SprayingA3 Stamping + Plastic SprayingA3 Stamping + Plastic SprayingA3 Stamping + Plastic Spraying
Adjusting ScrewClass 8.8Class 8.8Class 8.8Class 8.8Class 8.8
SealsNBR 70 -30~100℃FKM 70 -20~200℃NBR 70 -30~100℃VMQ 60 -60~200℃VMQ 60 -60~200℃
GreaseLithium-based GreaseHigh-temp GreaseLithium-based GreaseLow/High-temp GreaseAviation Grease
-20~120℃-30~200℃-20~120℃-50~180-70~180℃
BoltClass 8.8Class 8.8Class 8.8Class 8.8Class 8.8
GearsMulti-stage HousingGB/T 1348 QT450-10GB/T 1348 QT450-10ASTM A216 WCBASTM A352 LCBASTM A352 LCB
Multi-stage CoverGB/T 1348 QT450-10GB/T 1348 QT450-10ASTM A216 WCBASTM A352 LCBASTM A352 LCB
Gear DiscGB/T 699 45GB/T 699 45GB/T 3077 40CrGB/T 3077 40CrGB/T 3077 40Cr
Gear ShaftGB/T 699 45GB/T 3077 40CrGB/T 3077 40CrGB/T 3077 40CrGB/T 3077 40Cr
Worm ShaftGB/T 1220 2Cr13GB/T 1220 2Cr13GB/T 1220 2Cr13GB/T 1220 2Cr13GB/T 1220 2Cr13


AB Worm Gear Operatorstandard size

Standard requirements for external dimensions

Design Standard: ISO 5211 Technical Specification

Protection Class: IP65

Flange Standard: ISO 5211 ISO 5210

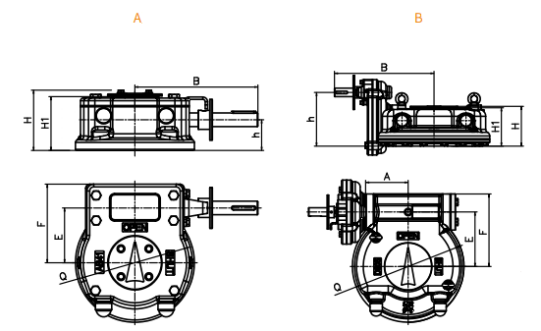

Outline Drawing of AB Worm Gear Operator

Outline dimension table(Unit: mm)


TYPEMODELφ(mm)B(mm)E(mm)F(mm)H(mm)H1(mm)h(mm)L(mm)L1(mm)G(mm)Q(mm)A(mm)
AAB361815061.594.5776838///125/
AAB361815061.594.5776838///125/
AAB402017070105.5857540///136/
AAB412018380.5115938348///160/
AAB412018380.5115938348///160/
AAB472018389.5127958550///178/
AAB472018389.5127959156///178/
AAB582518011115511010161///210/
AAB682519512617011310362///244/
AAB68251951261701139958///244/
AAB682519512617011310362///244/
BAB68B2526612617011310362128.592.58924491
BAB68B2526612617011310358128.592.58924491
BAB68B2526612617011310362128.592.58924491
BAB1782528612617312611660171.5135.5136254111
BAB1782528612617312611660171.5135.5136254111
BAB1782528612617312611660171.5135.5136254111

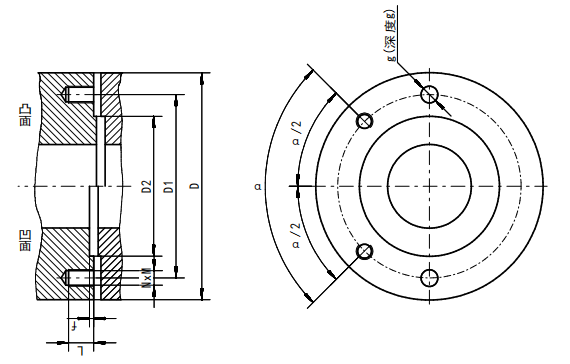

Connecting Flange Dimensions and Torque

ISO 5211 and ISO 5210 Flanges and Torques

Flange TypeD Flange ODD1 Pitch CircleD2 Spigot Diag Dowel Pin DiaNxM-L Holes x Dia x Deptha/2 Hole PosfSpigot HeightISO 5211 TorqueISO5210Torque
F0790705564xM8-1245°325040
F101251027084xM10-1545°3500100
F121501258584xM12-1845°31000250
F1417514010084xM16-2445°42000400
F16210165130104xM20-3045°54000700
F25300254200108xM16-2422.5°580001200
F30350298230108xM20-3022.5°5160002500
F35415356260168xM30-4522.5°5320005000
F40475406300168xM36-5422.5°86300010000
F485604833701612xM36-5415°812500020000
F606866034702020xM36-54825000040000
F809008136703020xM42-6310500000
F100120010428703032xM42-63101000000
F20(A)255197160108xM16-2422.5°56881
F20(B)255200160108xM16-2422.5°57000
F20(D)255225160108xM16-2422.5°57000
FA19255190.5155108xM16-2422.5°56881

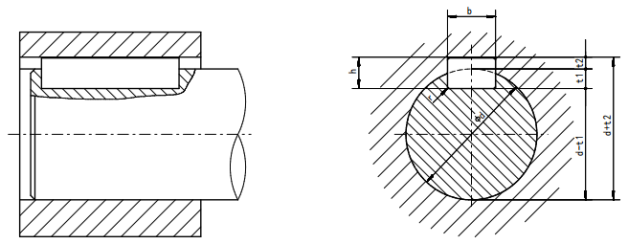

Dimensions for Output Bore and Input Shaft of AB Worm Gearbox

Dimension Table for Output Bore and Input Shaft of AB Worm Gearbox


GB/T1800.4GB/T1095
Hole & Shaft dHole Tolerance (E10)Shaft Tolerance (f8)Nominal Size dSlot Width bHole Slot Tolerance (D10)Shaft Slot Tolerance (H9)Slot Depth tLimit DeviationSlot Depth t1Limit Deviation
>10~18+0.102+0.032-0.016-0.043>12~175+0.078+0.030+0.0303.0+0.102.3+0.10
>17~226+0.078+0.030+0.0303.52.8
>18~30+0.124+0.040-0.020-0.053>22~308+0.098+0.040+0.03604.0+0.203.3+0.20
>30~3810+0.098+0.040+0.03605.03.3
>30~50+0.150+0.050-0.025-0.064>38~4412+0.120+0.050+0.04305.03.3
>44~5014+0.120 +0.050+0.04305.53.8
>50~5816+0.120 +0.050+0.04306.04.3
>50~80+0.180+0.060-0.030-0.076>58~6518+0.120 +0.050+0.04307.04.4
>65~7520+0.149+0.065+0.05207.54.9
>80~120+0.212+0.072-0.036-0.090>75~8522+0.149+0.065+0.05209.05.4
>85~9525+0.149 +0.065+0.05209.05.4
>120~180+0.245+0.085-0.043-0.106>95~11028+0.149+0.065+0.052010.06.4
>110~13032+0.180+0.080+0.062011.07.4
>130~15036+0.180+0.080+0.062012.08.4
>180~250+0.285+0.100-0.050-0.122>150~17040+0.180 +0.080+0.062013.0+0.309.4+0.30
>170~20045+0.180+0.080+0.062015.010.4
>250~315+0.320+0.110-0.056-0.137>200~23050+0.180+0.080+0.062017.011.4
>230~26056+0.220+0.100+0.074020.012.4
>315~400+0.355+0.125-0.062-0.151>260~29063+0.220+0.100+0.074020.012.4
>290~33070+0.220+0.100+0.074022.014.4
>330~38080+0.220 +0.100+0.074025.015.4
>400~500+0.385+0.135-0.068-0.165>380~44090+0.260 +0.120+0.087028.017.4
>440~500100+0.260 +0.120+0.087031.019.5

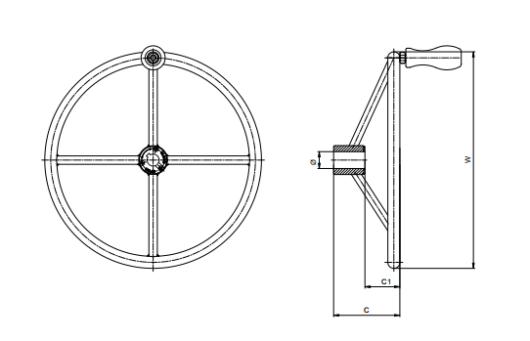

Outline Dimension Drawing for Handwheels of AB Worm Gearbox

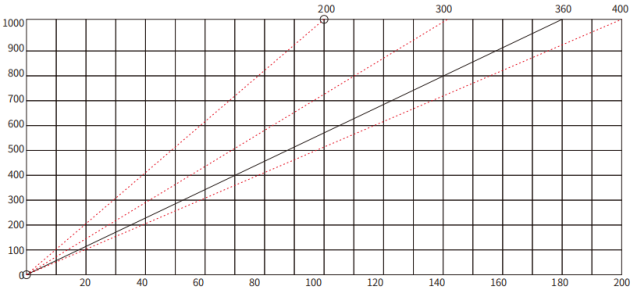

Handwheel Diameter of AB Worm Gearbox

Outline Dimension Table for Handwheels of AB Worm Gearbox


W2502803203604606008009001000
φ151517181517181820202525303525303530353035
C7690100110130150180200230
C1355050505050505050
