The ZCF-P-F/PU Series Flanged Type Anti-corrosive Solenoid Valve is an industrial-grade automated control valve specifically engineered for medium-to-large pipelines handling strong acids, alkalis, and various highly corrosive fluids. Utilizing high-quality engineering plastics (UPVC/CPVC) for the injection-molded body and expanding up to DN65 in size, this series features an advanced pilot-operated diaphragm structure that delivers an optimal combination of high sensitivity, large flow rate, and extended service life. The standard flange connection ensures excellent pipeline sealing and vibration resistance, making it widely utilized in chemical processing, high-concentration wastewater treatment, semiconductor pickling, electroplating spraying, and heavy-duty acidic/alkaline fluid transport systems.

Product Image:ZCF-P-F Flanged Anti-corrosive Solenoid Valve

Superior Corrosion Resistance: Constructed from premium UPVC/CPVC, the fluid is completely isolated from metal parts, providing outstanding resistance to acids, alkalis, chlorination, and oxidation.

Large Bore & Low Differential Pressure Startup: Equipped with a pilot-operated diaphragm structure supporting sizes from DN15 to DN65, ensuring stable and responsive opening/closing operations within a low pressure range of 0.3 to 6 bar.

Highly Reliable Flanged Connection: The flanged structure distributes tightening force evenly, capable of withstanding higher pipeline stress and gravity loads while providing strong resistance to deformation.

Low Power Consumption & Long Lifespan: Optimized solenoid coil design features low temperature rise and minimal power draw, paired with a highly durable diaphragm for frequent cycling in demanding environments.

Structure Diagram:ZCF-P-F Flanged Anti-corrosive Solenoid Valve

Specification Sheet

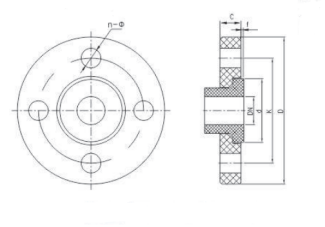

Outline Dimension Table   （Unit:mm）
